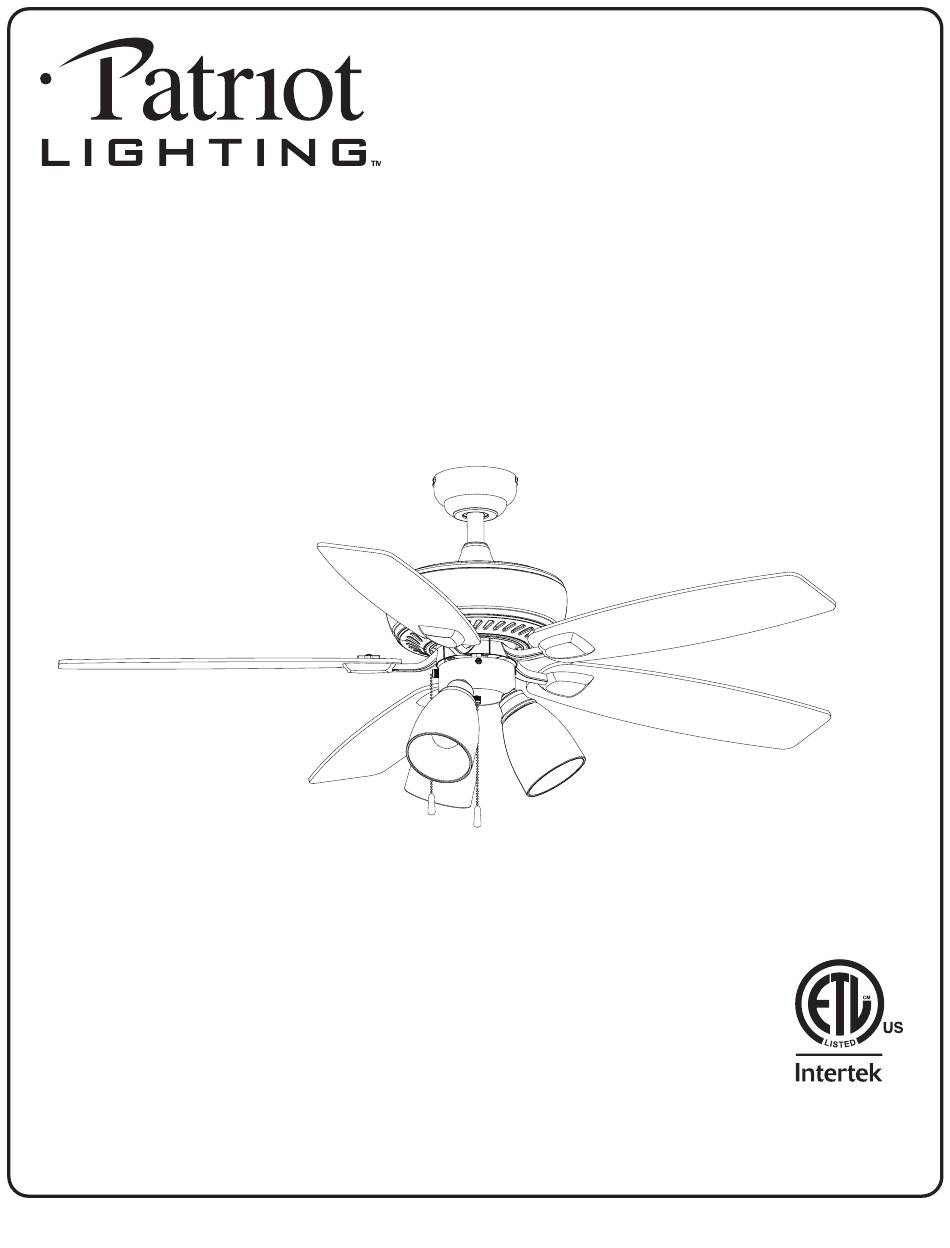

- Page 1 52” TISBURY II CEILING FAN Owner’s Manual Model #20687 20688 SKU # 355-0678 355-0679 If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time. 8064 •...
- Page 2 PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Canopy 12. Motor Screws (x10) 2. Canopy Cover 13. Fitter Plate 3. Mounting Bracket Screw 14. Fitter Plate Screw (x3) (x4) 15. Light Kit 4.
-
Page 3: Mounting Options
DIMENSION REFERENCE A. 19.35 in. B. 11.99 in. C. 11.26 in. D. 5.13 in. MOUNTING OPTIONS Three Mounting Options Closemount Downrod Mount Angled Ceiling Mount (Up to 16 degrees) Choose one of the following mounting options: Closemount is best suited for ceilings lower than 8 feet. It does not utilize the downrod. Downrod Mount is best suited for ceilings 8 ft. - Page 4 SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan.
- Page 5 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. Mounting 2. Loosen all four mounting bracket screws located on the Bracket Screw mounting bracket and completely remove the two screws from the round holes in the canopy.
- Page 6 ASSEMBLY INSTRUCTIONS Closemount 5. CLOSEMOUNT INSTALLATION (Optional) - Screw a. Remove the three Phillips-head closemount screws from the top of the motor assembly. b. Remove the canopy cover from the bottom of the Mounting canopy. Bracket c. Align the holes in the bottom of the canopy with the screw holes in the top of the motor assembly.
- Page 7 ASSEMBLY INSTRUCTIONS 9. Install the ball end of the downrod into the opening of Slot the mounting bracket. Rotate the downrod until the tab in the mounting bracket is seated in the slot in the downrod Downrod ball. WARNING: The fan and/or downrod should not rotate in the mounting bracket, if installed correctly.
- Page 8 ASSEMBLY INSTRUCTIONS 13. Install the blade arm to the underside of the motor assembly with previously removed motor screws. Tighten each blade arm completely before moving to the next. Note: The notch in the fitter plate allows a Phillips Notch screwdriver access to the motor screws.
- Page 9 ASSEMBLY INSTRUCTIONS 17. Attach the pull chain extensions to the pull chains. Note: The pull chain in the center of the light kit controls the light. Pull Chain Extension 18. Restore the power at the main fuse or circuit breaker and the wall switch.
- Page 10 OPERATING INSTRUCTIONS 1. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your Reverse Switch comfort. Use the reverse switch to optimize your fan for seasonal performance.
-
Page 11: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 8 a.m. -
Page 12: Limited Lifetime Warranty
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.
