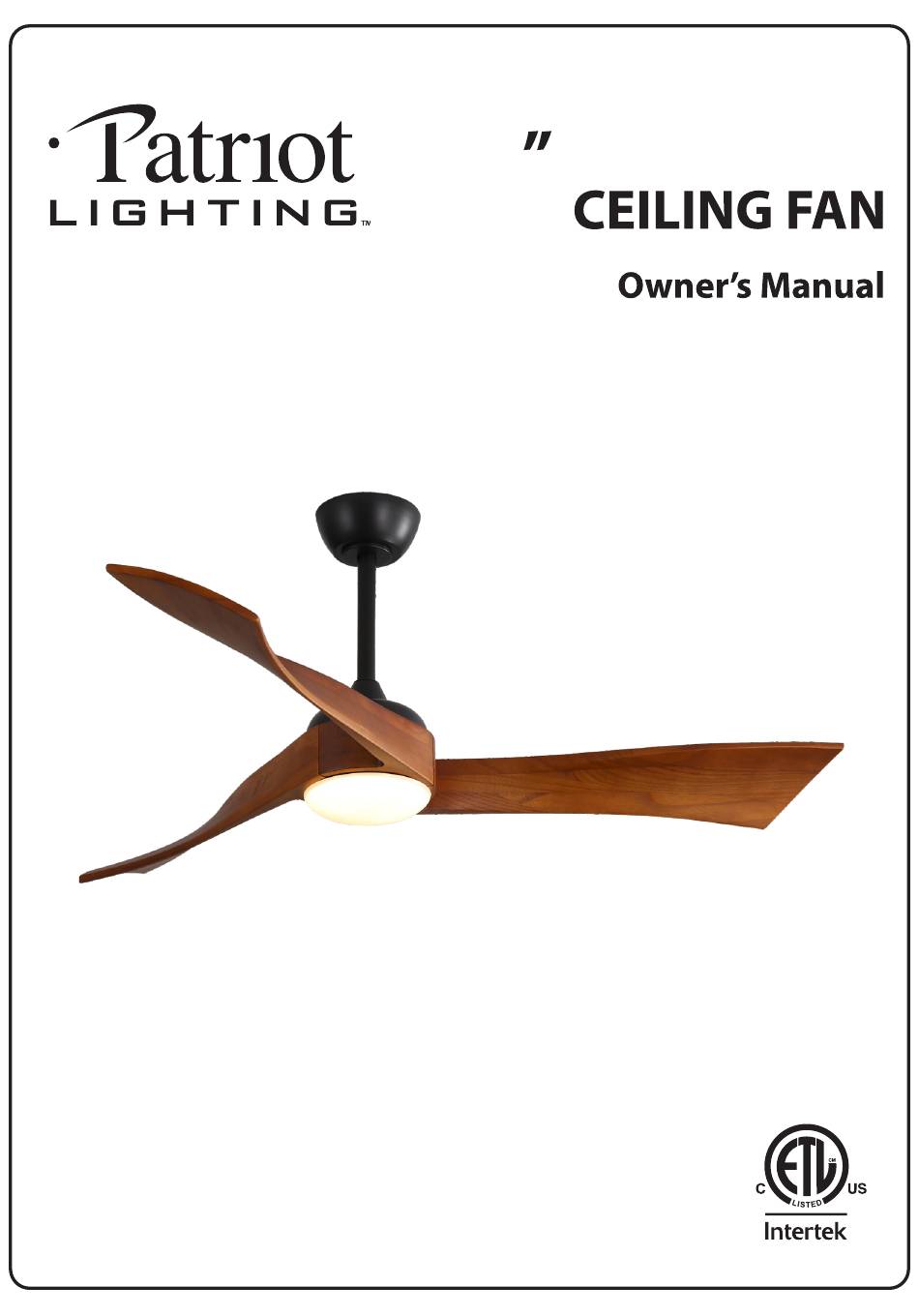

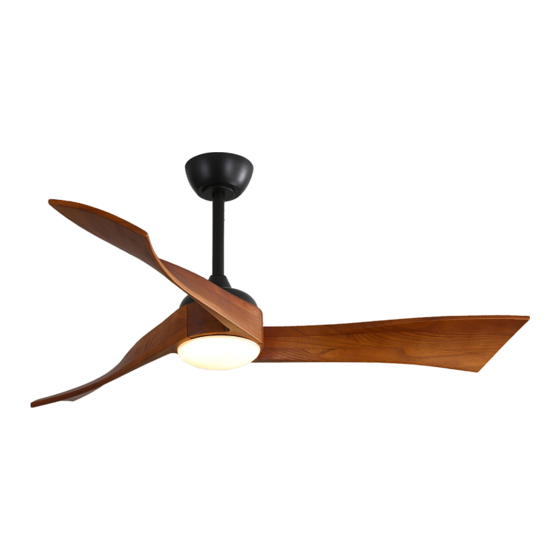

- Page 1 LED PROP MB SKU Number 355-3300 Model Number SO13 If a problem can not be remedied or you are experiencing difficultlyin installation, e-mail: customer-service@ewccglobal.com.cn please contact 1-888-722-5089...
- Page 2 WARNING: To reduce the risk of electrical shock or fire , do not use this fan with any solid-state fan speed control device. It will permanently damage the electronic circuitry. WARNING: To reduce the risk of personal injury, do not bend the blade arms (also referred to as flanges), when installing the brackets, balancing the blades or cleaning the fan.
- Page 3 Two Ceiling Installation Methods Wooden Ceiling Mounting Bracket...
- Page 4 Accessory Drawing Slide-on Mounting Bracket (Inside Canopy) 5"Ball / Downrod Assembly 10"Downrod Canopy Canopy Cover Coupling Cover Fan-motor Assembly 3x Blades 3x Gaskets 6x Blade Screws & 6x Washers 10. Light Panel 11. LED Light Kit 12. Lamp Cover 13. Remote Control Transmitter And Receiver 14a.
- Page 5 Installation of Downrod Remove the bolt and the R type pin...
- Page 6 Installation of Downrod Install the bolt and the R type pin Install the coupling cover Install the canopy cover Install the canopy...
- Page 7 Installation of Downrod Install the ground wire with the screws...
- Page 8 Installation of the Downrod...
- Page 9 Installation of the Downrod Connect the wires for both light & fan Connect the wire of the receiver and between the motor and the receiver. the house Install the screw halfway...
-
Page 10: Installation Of The Fan
06 Installation of the Fan Put the gasket on the hole of the blade Put the gasket on the hole of the blade... -
Page 11: Use Of Remote Control
06 Installation of the Fan 07 Use of Remote Control ① Fan OFF ② Light up/Light on/off/Lights dimmed ③ Warm light / Neutral light / White light ④ 6 Speed Settings ⑤ F / R : Changing fan run direction ( 7 sec ) ⑥... -
Page 12: Code-Matching
08 Code-Matching 3.When you hear the beep, the code-matching is successful. - Page 13 09 Adjusting and Balancing blades Run the fan to check for wobbling. If wobbling exists, turn off the fan, put the balancing clip halfway on a blade and check again. If the wobbling persists, repeat the above with another blade. On the blade that the least wobbling is seen with the balancing clip, slide the clip away from the center of the blade in small...
- Page 14 10 Reverse Switch Operation Instructions 11 Trouble Shooting...
-
Page 15: Limited Lifetime Warranty
If your Patriot Lighting Ceiling Fan motor fails at anytime during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.
Need help?
Do you have a question about the SO13 and is the answer not in the manual?
Questions and answers
Bought a 52"led prob mb ceiling fan and we can't get the blades to turn, checked all the connections
There could be several reasons why the blades on the Patriot Lighting SO13 52" LED PROP MB ceiling fan are not turning:
1. Power Supply Issue – Ensure the fan is properly connected to the power source and that the circuit breaker is not tripped.
2. Remote Control or Switch Problem – Check if the remote control or wall switch is functioning correctly and replace batteries if needed.
3. Reverse Switch Position – Verify that the reverse switch is set properly, as an incorrect position may prevent the blades from moving.
4. Wiring Connection Issue – Confirm that all wires between the motor, receiver, and power source are securely connected.
5. Defective Motor – If the motor is faulty due to a defect in material or workmanship, it may need replacement under the limited lifetime warranty.
6. Obstruction or Blade Imbalance – Ensure that no foreign objects are blocking the blades and that they are properly installed and balanced.
7. Solid-State Fan Speed Control Device – If a solid-state speed control device is being used, it may have damaged the electronic circuitry.
If none of these solutions resolve the issue, contact customer service for further assistance.
This answer is automatically generated
The light goes very dim when we power it off but it stays lit unless the fan is also off.
