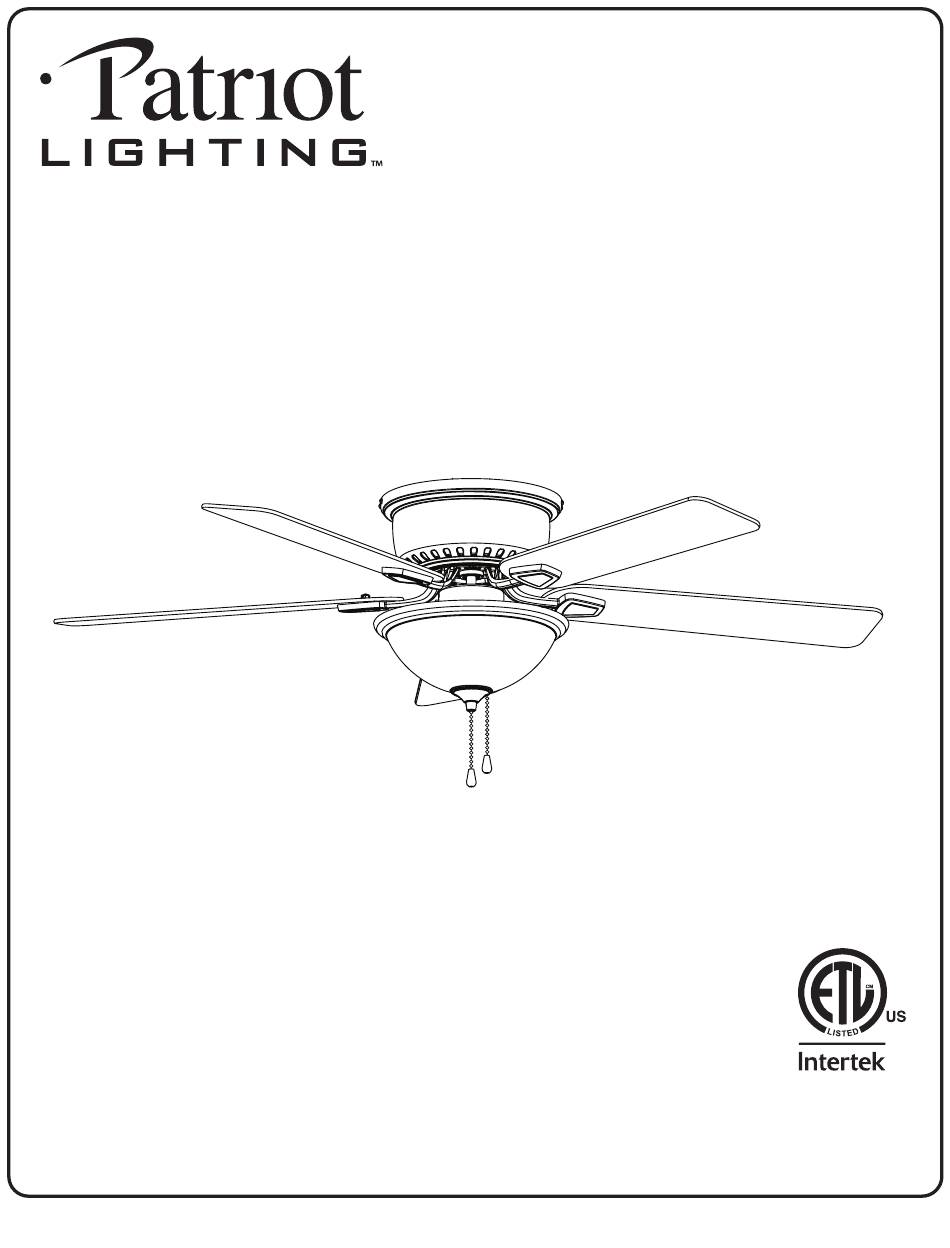

52" ALSTON II
CEILING FAN
Owner's Manual
Model #20850, 20851
SKU #355-2108, 355-2110
If a problem cannot be remedied or you are experiencing difficulty in installation, please contact
the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
10191 • 101524
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALSTON II 20850 and is the answer not in the manual?

Questions and answers

Related Manuals for Patriot Lighting ALSTON II 20850

Summary of Contents for Patriot Lighting ALSTON II 20850

  • Page 1 52” ALSTON II CEILING FAN Owner’s Manual Model #20850, 20851 SKU #355-2108, 355-2110 If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday. 10191 •...

  • Page 2: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Motor Housing 11. Finial Cap 2. Upper Mounting Bracket 12. Finial 3. Motor Housing Screw (x4) 13. Glass Bowl 4. Lower Mounting Bracket 14.
  • Page 3 DIMENSION REFERENCE A. 13.65 in. B. 7.9 in. C. 5.72 in. D. 11.05 in. LOCATION FOR INSTALLATION Ceiling 30 in. Min Wall 7 ft. Min Floor When selecting a location for installation, ensure the blades will be at least 30 inches from any wall or obstruction and at least 7 feet above the floor.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: This fan is not suitable for damp or outdoor locations. All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan.

  • Page 5: Care And Maintenance

    SAFETY INSTRUCTIONS WARNING: To avoid risk of electric shock, be sure to shut off power at the main fuse or circuit breaker box before installing or servicing this fixture. Turning off the electrical power by using the light switch is not sufficient to prevent electrical shock.
  • Page 6 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Secure the upper mounting bracket to the outlet box Upper Outlet Box Mounting...
  • Page 7 ASSEMBLY INSTRUCTIONS Upper Mounting Bracket 5. Reinstall the previously removed mounting bracket screws to secure the lower mounting bracket to upper mounting bracket. Securely tighten the screws. Lower Mounting Mounting Bracket Bracket Screw 6. Connect household supply and fan wires according to the diagram and these steps: •...
  • Page 8 ASSEMBLY INSTRUCTIONS Install the blade arm to the underside of the motor assembly with preinstalled motor screws. Tighten each blade arm completely before moving to the next. Blade To install the fan without the light kit, skip to Step 16. Motor Screw 10.
  • Page 9 ASSEMBLY INSTRUCTIONS 13. Feed the pull chain coming from the grommet in the light kit through the off-center hole in the glass bowl. Feed the pull chain coming from the center of the light kit through the center hole in the glass bowl. Glass Bowl Off-Center Hole 14.
  • Page 10 OPERATING INSTRUCTIONS 1. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your comfort. In warmer weather, push the reverse switch to the down for downward airflow creating a wind chill effect.

  • Page 11: Troubleshooting

    TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 8 a.m.

  • Page 12: Limited Lifetime Warranty

    20851 - (SKU: 355-2110) Matte White Set forth below, the manufacturer warrants the fan motor for this Patriot Lighting ceiling fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, the manufacturer warrants all ceiling fan parts (“ceiling fan parts”...

This manual is also suitable for:

Alston ii 20851355-2108355-2110
