Diphano Selecta Instruction Manual

Extendable table
Hide thumbs Also See for Selecta:

Advertisement

Quick Links

Download this manual
Selecta
extendable table
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Selecta and is the answer not in the manual?

Questions and answers

Related Manuals for Diphano Selecta

Summary of Contents for Diphano Selecta

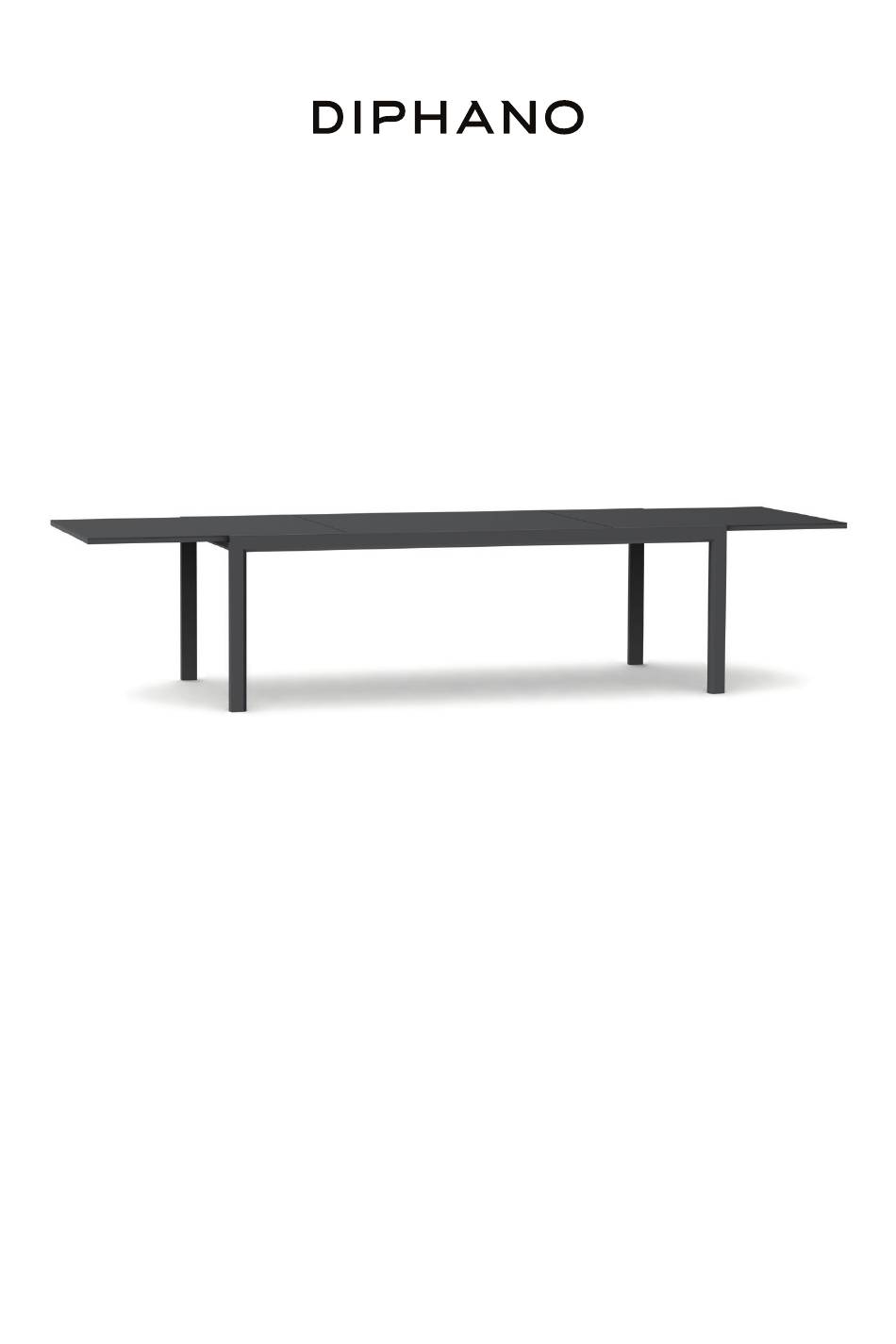

  • Page 1 Selecta extendable table INSTRUCTION MANUAL...
  • Page 2 (you can use the cardboard box for this). 12x bolt (M6x15mm) 16x bolt (M6x35mm) 28x (M6) 1x hex key (5) 8x silicone cap 1x alu table top 2x alu legs Diphano cannot be held responsible if the assembly instructions are not followed properly.
  • Page 3 PLACE SILICONE CAPS Place 4 silicone caps (E) onto the right side of the table top (F) as shown in the picture. Repeat this for the left side.
  • Page 4 SLIDE LEGS ON TABLE TOP Slide the legs (G) equally into the table top (F).
  • Page 5 FIXATE LEGS Fixate the legs (G) with the table top (F) by following the 3 steps. Make sure you follow the correct order as indicated by the letters in the picture. Repeat this for the other 3 corners.
  • Page 6 TURN TABLE Turn the table carefully to its normal position with at least 6 persons.

  • Page 7: Open Table

    how to extend your table watch the video OPEN TABLE Slide the 2 table tops outwards (1), tilt the middle table top in the direction indicated by the arrows (2). Slide the 2 outer table tops back inwards (3).
  • Page 8 PLACE REMAINING BOLTS Fixate 4 bolts (B) with the washers (C) in the remaining center holes at the left side and repeat this for the remaining center holes at the right side. Make sure you follow the correct order as indicated by the letters in the picture.
  • Page 9 ADJUST FEET Check with a spirit level if the table is placed level. If not, (un)screw the adjustable feet till your table is completely level.

  • Page 10: Maintenance And Care

    maintenance & care POWDERCOATED ALUMINIUM Simply brush away loose dirt, rinse, and clean with a mild, lukewarm soapy solution. Rinse thoroughly and pat dry with a cloth. CERAMIC Simply brush away loose dirt, rinse, and clean with a mild, lukewarm soapy solution or Ceramic cleaner.
  • Page 12 Textielstraat 4 - 8790 Waregem - Belgium Tel. +32 (0)56 980 008 - info@diphano.com...
