Diphano SELECTA Instructions

INSTRUCTION PAPER

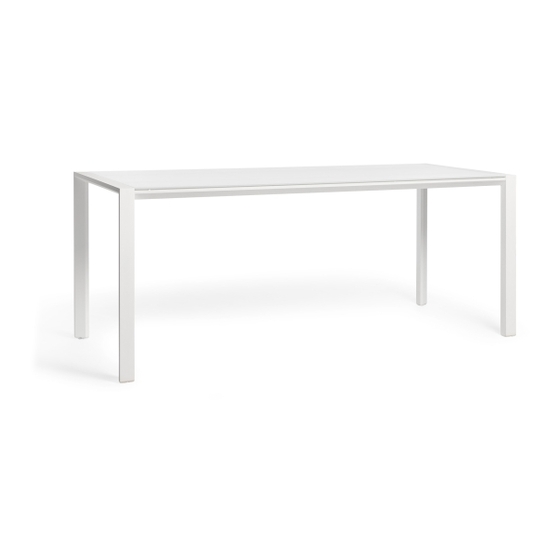

SELECTA | High dining table M 226x90
Start by unpacking everything carefully. Make sure to cover the fl oor to prevent any damage or scratching (you can use the cardboard box for this).
CONTENT
A
8x bolt (M8x40mm)
E
4x bolt (M6x15mm)
I
18x bumper
M
2x alu legs
STEP 1: ASSEMBLE LEGS
Slide the outer legs (M) equally onto the table top (L). Fixate the legs
by screwing the bolts (A,E) with the washer (B,F) and spring washer
(C,G) using the hex keys (D,H). Make sure you follow the correct order
as indicated by the letters in the picture. Repeat this action for the
other side.
B
8x washer (M8)
F
4x washer (M6)
J
18x washer (1mm)
N
1x table top
D
F B C A
H E G
C
8x spring washer (M8)
G
4x spring washer (M6)
K
18x washer (2mm)
STEP 2: TURN TABLE
Turn the table carefully to its normal position with at least 4 persons.
D
1x hex key (6)
H
1x hex key (5)
L
1x alu table top support
1/2
