Diphano SELECTA Assembly Instructions

INSTRUCTION PAPER

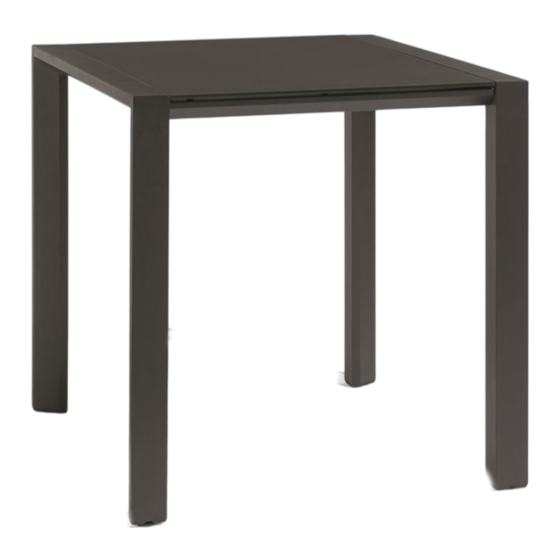

SELECTA | Dining table 80x80
Start by unpacking everything carefully. Make sure to cover the fl oor to prevent any damage or scratching (you can use the cardboard box for this).

CONTENT

A
8x bolt (M8x40mm)
E
13x bumper
I
2x alu legs

STEP 1: ASSEMBLE LEGS

Use the hex key (D) to screw the the aluminium legs onto the table
top (L) as shown in the picture. Make sure you follow the correct
order as indicated by the letters in the picture. Repeat this action for
the other side.
B
8x washer (M8)
F
13x washer (1mm)
J
1x table top
C
8x spring washer (M8)
G
13x washer (2mm)

STEP 2: TURN TABLE

Turn the table carefully to its normal position with at least 2 persons.
D
1x hex key (6)
H
1x alu table top support
1/2
