Exhaust Hose And Adaptors Installation

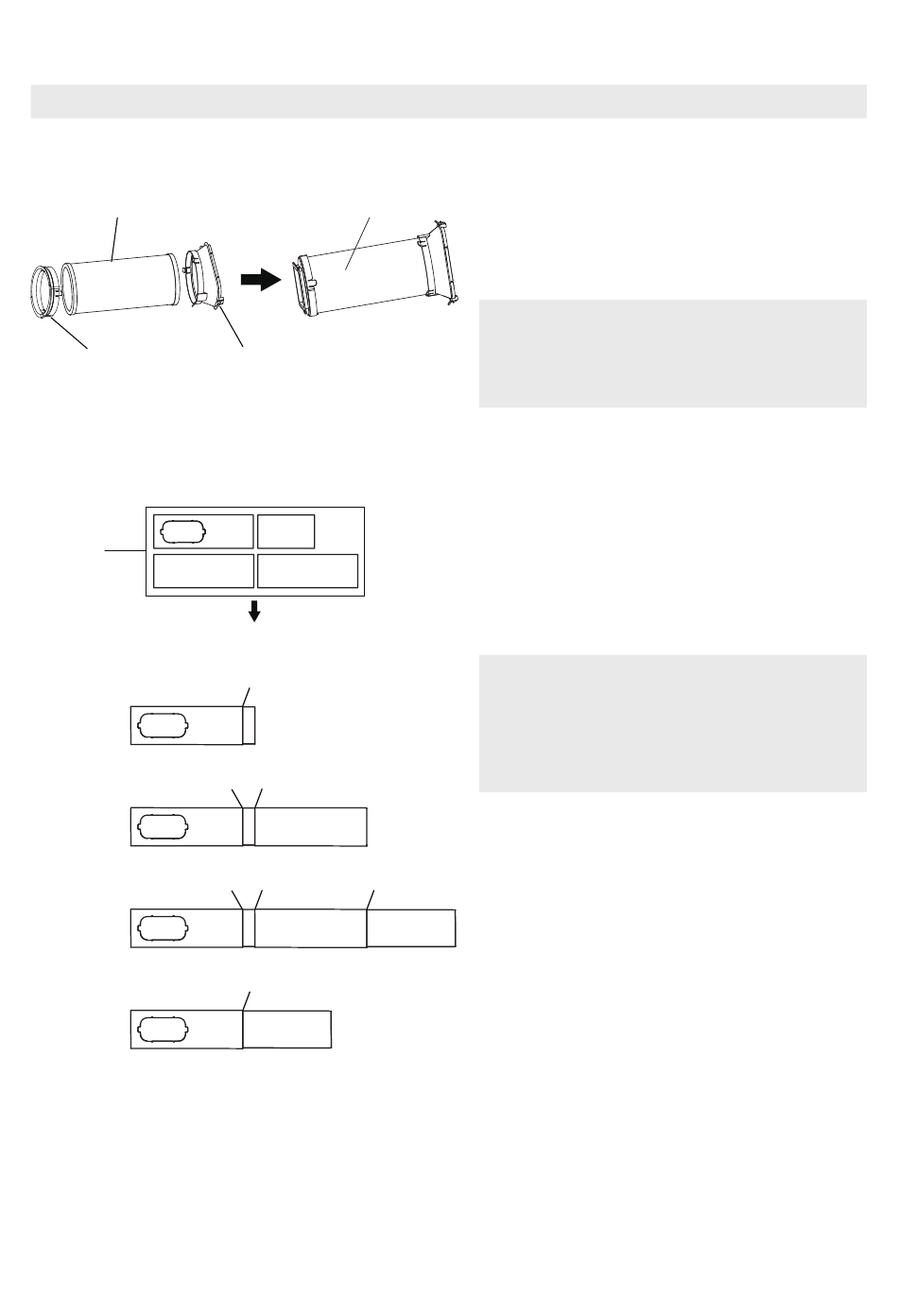

1 - The Exhaust Hose Assembly Installation (Window Type):
Exhaust hose
Unit adaptor Air exhaust
passage
2 - Preparing the Adjustable Window Slider:
Before assembly
Window
Sliders
After assembly
：
1+2
Bolt
：
1+2+3
Bolt
：
1+2+3+4
：
1+4
Exhaust hose
assembly
Bolt
Bolt
Bolt Bolt
Bolt
Press the exhaust hose (or extended
exhaust hose) into the window slider
adaptor and unit adaptor. The pieces
will clip together using the tabs on the
adaptors.
NOTICE
Please install the exhaust hose assembly
according to the fittings in your kit.
Choose the window sliders according to
the size of your window. Some of the sliders
may need to be cut to fit the exact window
size, make sure to cut the sliders carefully if
this is required.
Use bolts to fasten the window sliders once
they are adjusted to the proper length.
NOTICE
Please base your window slider
installation on the accessories in your
kit and the size of your window.
