7. Completing the Installation

7.1. Group and Volume Settings

7.1.1. Entry Panel and Selector Switch

• If the system has only one Entry Panel set the Selector Switch to the upper position
• If there are two Entry Panels set the Selector Switch on the one Panel to the upper
position and on the other Panel to the lower position
1
• When adjusting the Speech Volume start by pressing the Call Button to activate the
speech on the Entry Panel
• The volume setting depends on the number of HANDSETs connected to the system
1. Rotate the volume control knob (B) in a clockwise direction.
2. Test the volume by putting the cover back. An acceptable level occurs just before the entry panel howls.

7.1.2. One- or Two-Button Entry Panel Configuration

With the entry panel powered up, hold
the top and bottom buttons down
simultaneously for 5 seconds
(5 beeps). After the fifth beep, release
the buttons. A confirmation tone will
then be heard for 2 The entry panel
is now in Configuration Mode, and
will be for 10 seconds before it times
out. While in this mode, there are two
options available to the user:
• Press the top button
(one beep will be heard) to set
the entry panel as a one-button
unit, where each button rings both
groups of HANDSETs or;
• Press the bottom button (two beeps will be heard) to set the entry panel as a two-button
unit, where the top button rings group "A" handsets and the bottom button rings group
"B" HANDSETs
On power up, the entry panel will beep either once or twice to indicate the configuration
selected (one beep for a one-button and two beeps for a two-button Entry Panel).

7.1.3. HANDSET call Group Selector Switch and Volume Control

• Each handset is fitted with a
Selector Switch to allow the group
number for the specific HANDSET
to be set. Set the switch
depending on which Group, "A" or
"B" the respective HANDSET is
required to be linked
• Adjust the speech volume at the
handset to approximately 75%
by adjusting the control knob.
Clockwise rotation increases the
volume
COMPLETING THE INSTALLATION
2
Entry Panel
Cradle
page 26
or;
1
Volume
Dial
Selector
Switch

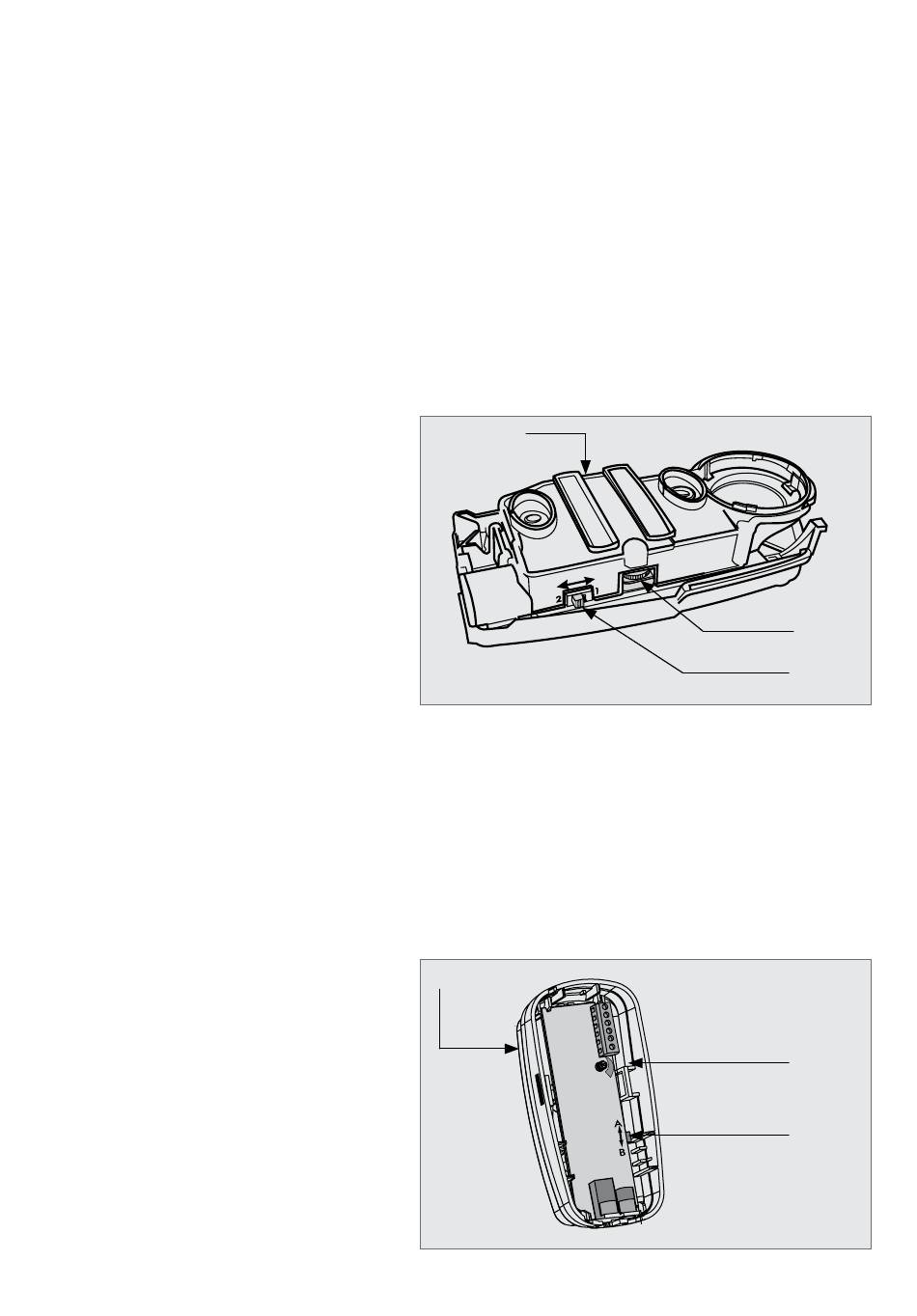

FIGURE 33
Volume
Control
Selector
Switch
FIGURE 34
