SECTION 6

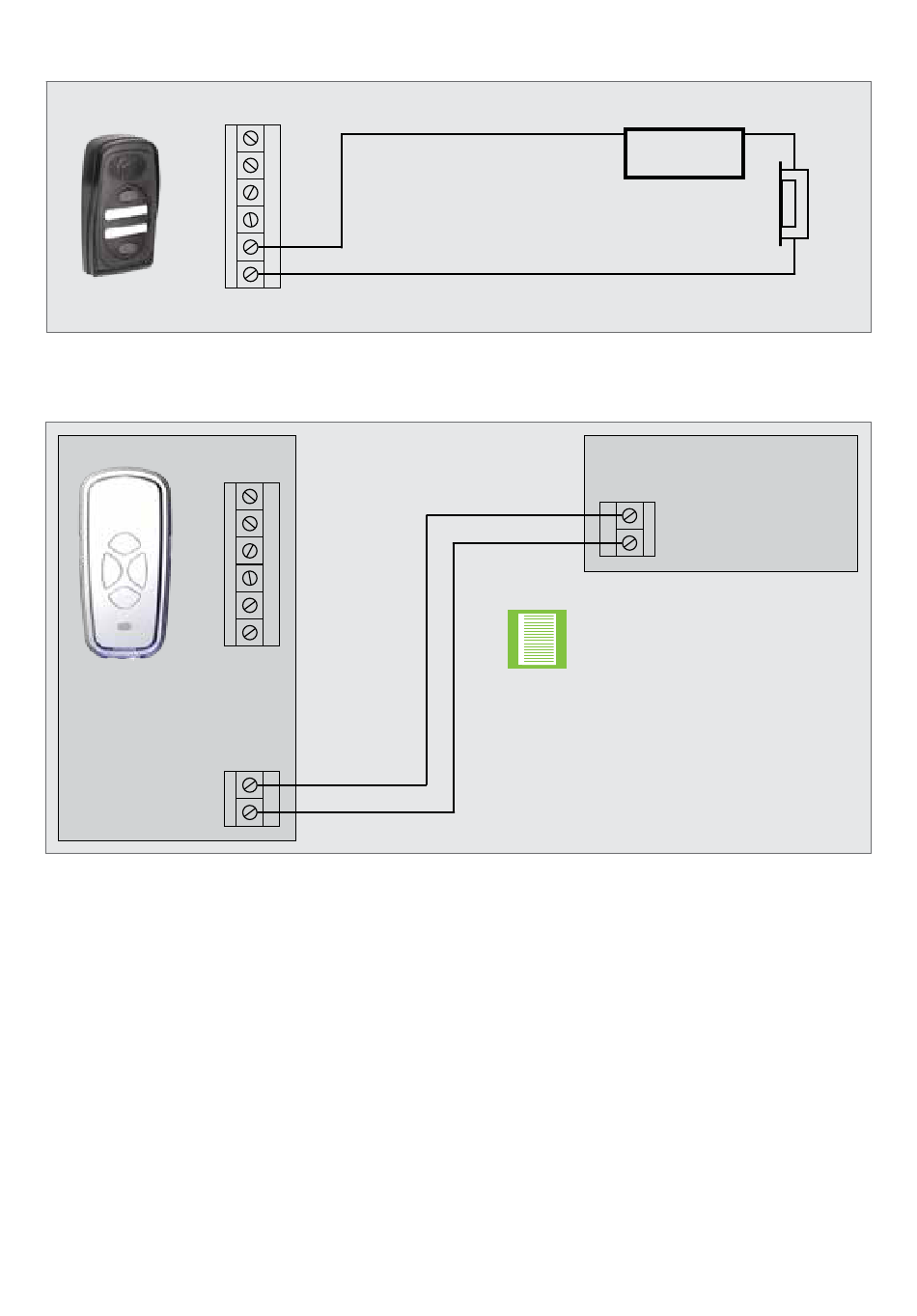

6.3. Door Lock Drive
ENTRY PANEL
1
2
-
+
NO
COM
6.4. Wiring the Gate Status LED
HANDSET
1
2
-
+
Aux
Aux
*
Ground
1. Excludes the D3 SMART
CRADLE
For SMART Opererators, wire
"*" into any of the output
termianls that is configured
to Gate Status (IO4 is
defaulted to "Gate Status")
page 22
WIRING
Lock Power
Supply
FIGURE 30
Gate Operator
Control Card
Status Terminal
COM
FIGURE 31
