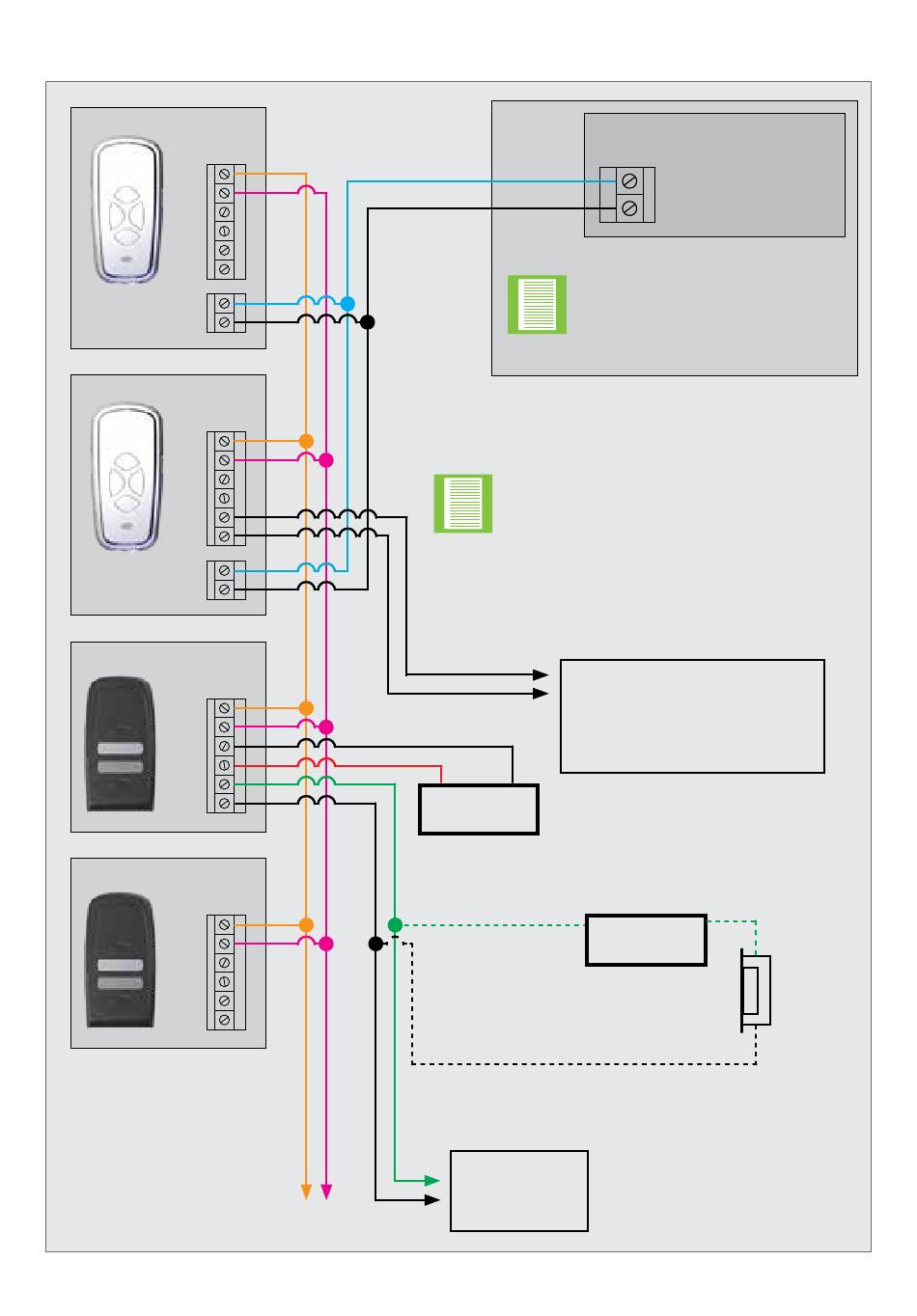

6.5. Full Site Wiring Diagram (12V DC Operators)

HANDSET
CRADLE
1
2
-
+
Aux
Aux
*
Ground
HANDSET
CRADLE
1
2
-
+
Aux
Aux
*
Ground
Entry
Panel
1
2
-
+
NO
COM
Entry
Panel
1
2
-
+
NO
COM
1. Excludes the D3 SMART
12V DC
Power Supply
TRG
COM
To extra
Handsets
page 23
For SMART Opererators, wire
"*" into any of the output
terminals that is configured
to Gate Status (IO4 is
defaulted to "Gate Status")
1. Only one 12V DC Power Supply is typically
needed to power the system.
2. Power can be connected to any component
in the system.
3. The diagram shows the 12V Battery Supply
of gate motor connected to the entry
panel to power the system.
4. If power is being connected to the handset
use either a mains adapter with a DC jack
compatible with the socket provided or
connect 12-14V DC to the terminals.
5. If the bus voltage (between terminals
"A" and "B") is lower than 8V DC, power
needs to be applied at another unit on the
system.
Auxiliary output/potential-free
normally-open
• Gate pedestrian opening
• Pillar light control
• Entrance light control
Lock Power
Supply
Potential-free
normally-open
contact to
activate gate
operator
WIRING
Gate Operator
Control Card
Status Terminal
COM
1
FIGURE 32
