CENTURION SYSTEMS INTERCOM HANDSET Installation Manual page 13

SECTION 5
Lift the Front Fascia of the Entry
Panel off.

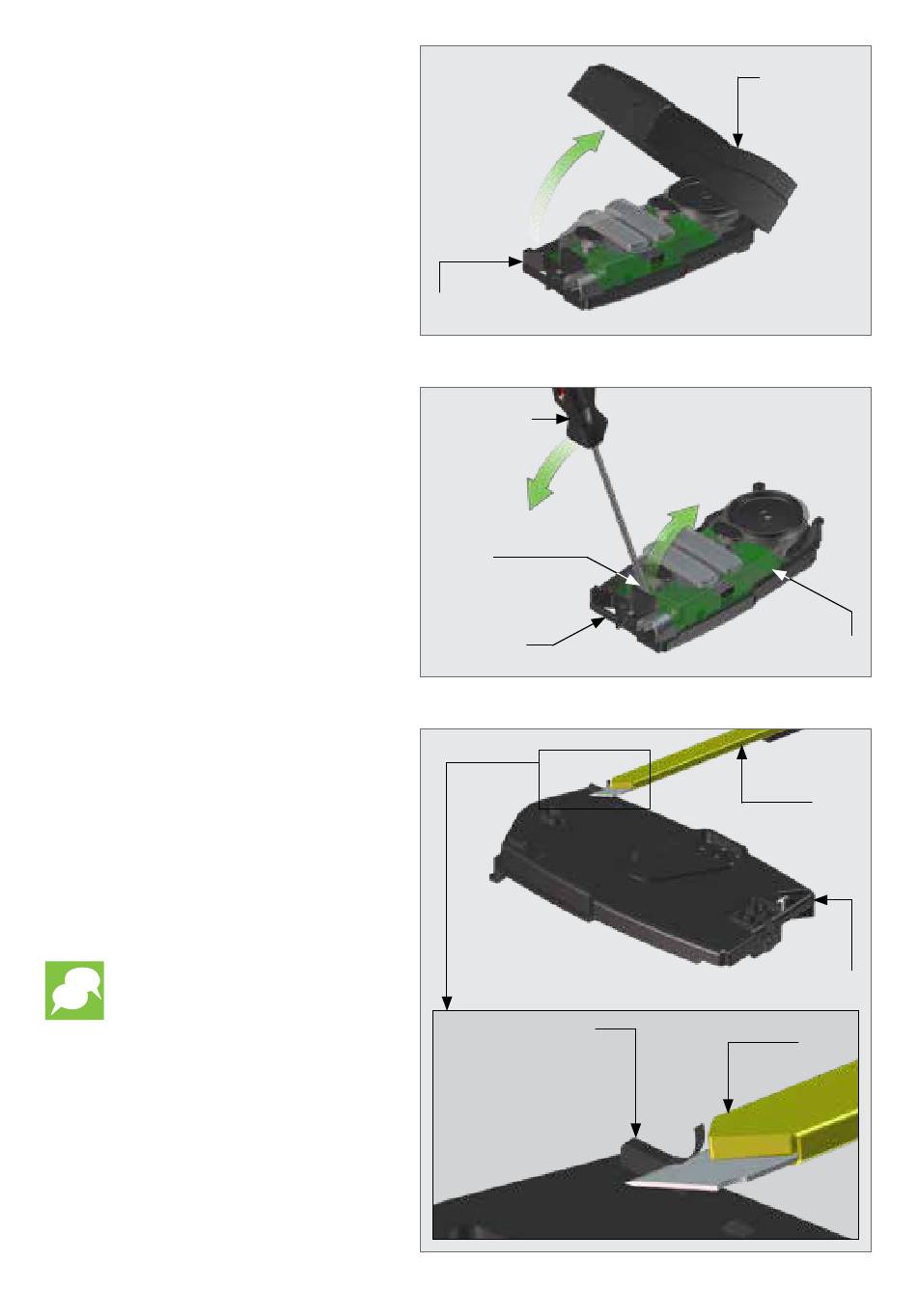

Insert a Flat Screwdriver into the
groove as shown in Figure 10, and
unclip the Electronic Module from
Entry Panel Base Plate.
Then lift the Electronic Module off
the Entry Panel Base Plate.
In the case of an uneven
wall, the tabs may be cut
as shown to allow the base
to 'sit' on the wall without
rocking.
Entry
Panel
Flat
Screwdriver
Groove
Entry Panel
Base Plate
Tab on the back of
the Entry Panel
Base Plate
page 13
INSTALLATION
Entry Panel
Front Fascia
FIGURE 9
Electronics
Module
FIGURE 10
Craft
Knife
Entry Panel
Base Plate
Craft
Knife
FIGURE 11
