SECTION 5
5.2. Intercom Handset Installation

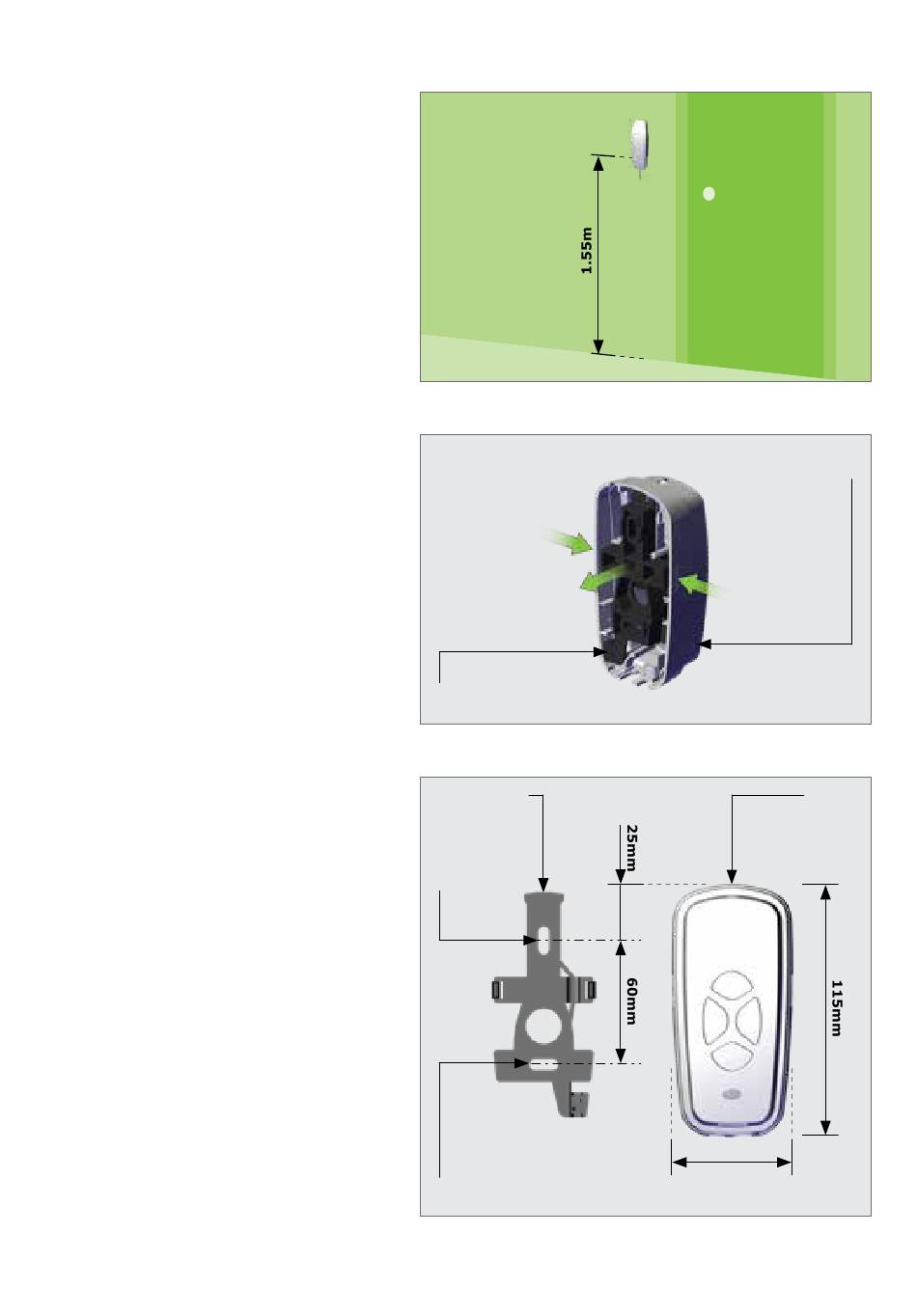

Position the Intercom Handset on
wall where required at a height that
will allow for comfortable use of the
Intercom Handset.
A height of 1550mm from the
floor to the base of the cradle is
recommended.
Remove the Cradle Base Plate from
the Cradle by squeezing the sides of
the Cradle inwards.
Dimentions of the Mounting Holes in
the Cradle Base Plate relative to the
Cradle.
Handset
Cradle Base
Cradle Base
Back Plate
Mounting
Hole
Mounting
Hole
page 16
INSTALLATION
FIGURE 18
Handset
Cradle
FIGURE 19
Cradle
Base
53mm
FIGURE 20
www.centsys.com
