CENTURION SYSTEMS INTERCOM HANDSET Installation Manual page 18

SECTION 5

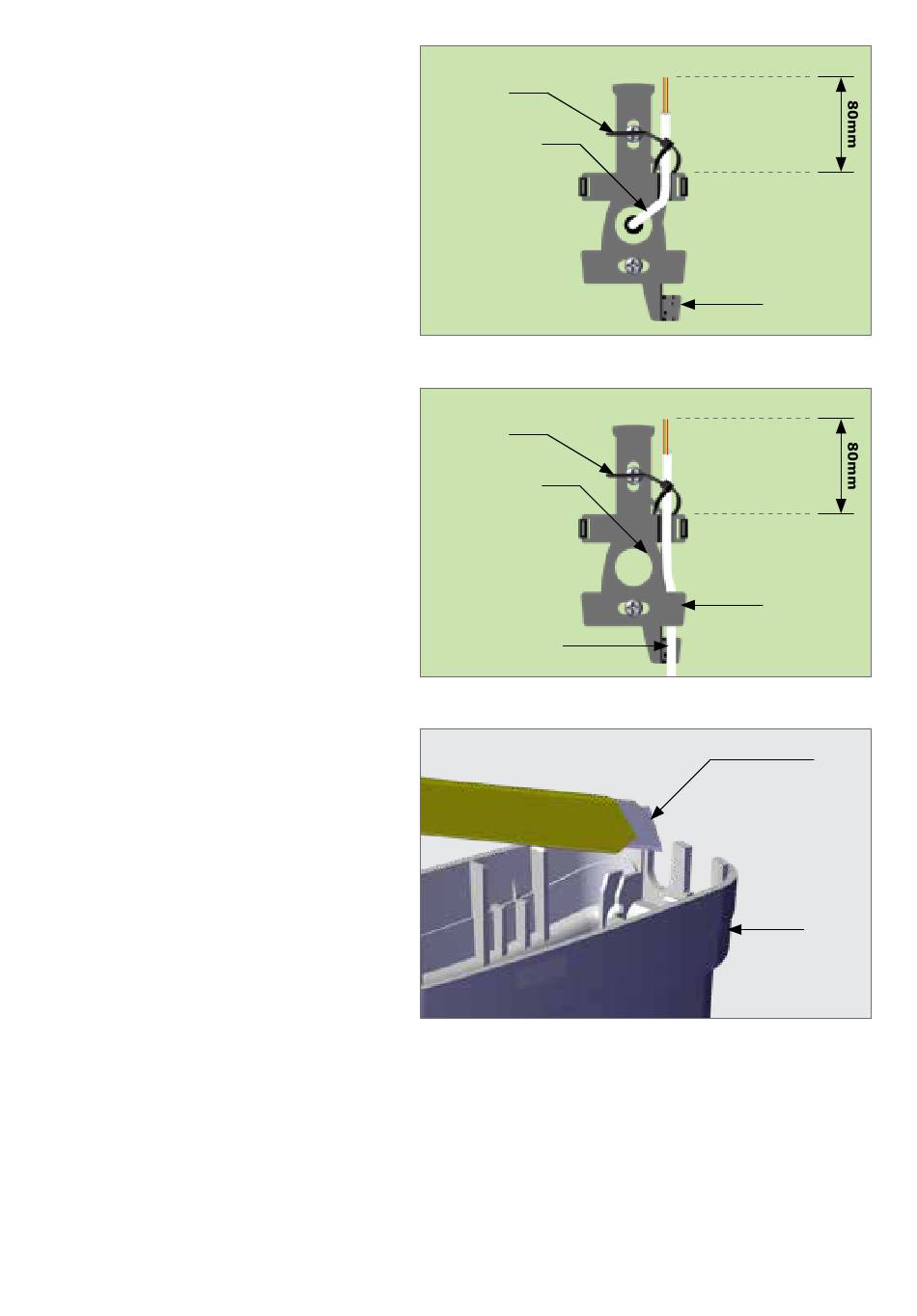

Route the cable over the channel in
the Cradle Base cross bar. Using the
Cable Tie provided, secure the cable
to the Cradle Base Back Plate as
shown in Figure 23.
Tighten cable tie ensuring that there
is sufficient slack to terminate the
cable onto the electronics (±80mm).
If the cable is surface mounted,
route the cable into the unit from
underneath as shown. Secure to
cradle base using cable tie provided.
Allow sufficient slack (±80mm)
Using a sharp knife carefully cut out
the Cable Entry Slot to allow the
surface mounted Cable to route into
the Cradle.
Cable Tie
Cable coming
from conduit
in wall
Cable Tie
Surface-Mounted
Cable
page 18
INSTALLATION
Cradle Base
Back Plate
FIGURE 23
Cradle Base
Back Plate
FIGURE 24
Craft
Knife
Cradle
Cover
FIGURE 25
