5. Installation
5.1. Entry Panel Installation
5.1.1. Wall-mount Installation
Position entry panel on wall adjacent
to entrance gate or door.
Mount at a height that allows for
comfortably speaking into the
microphone.

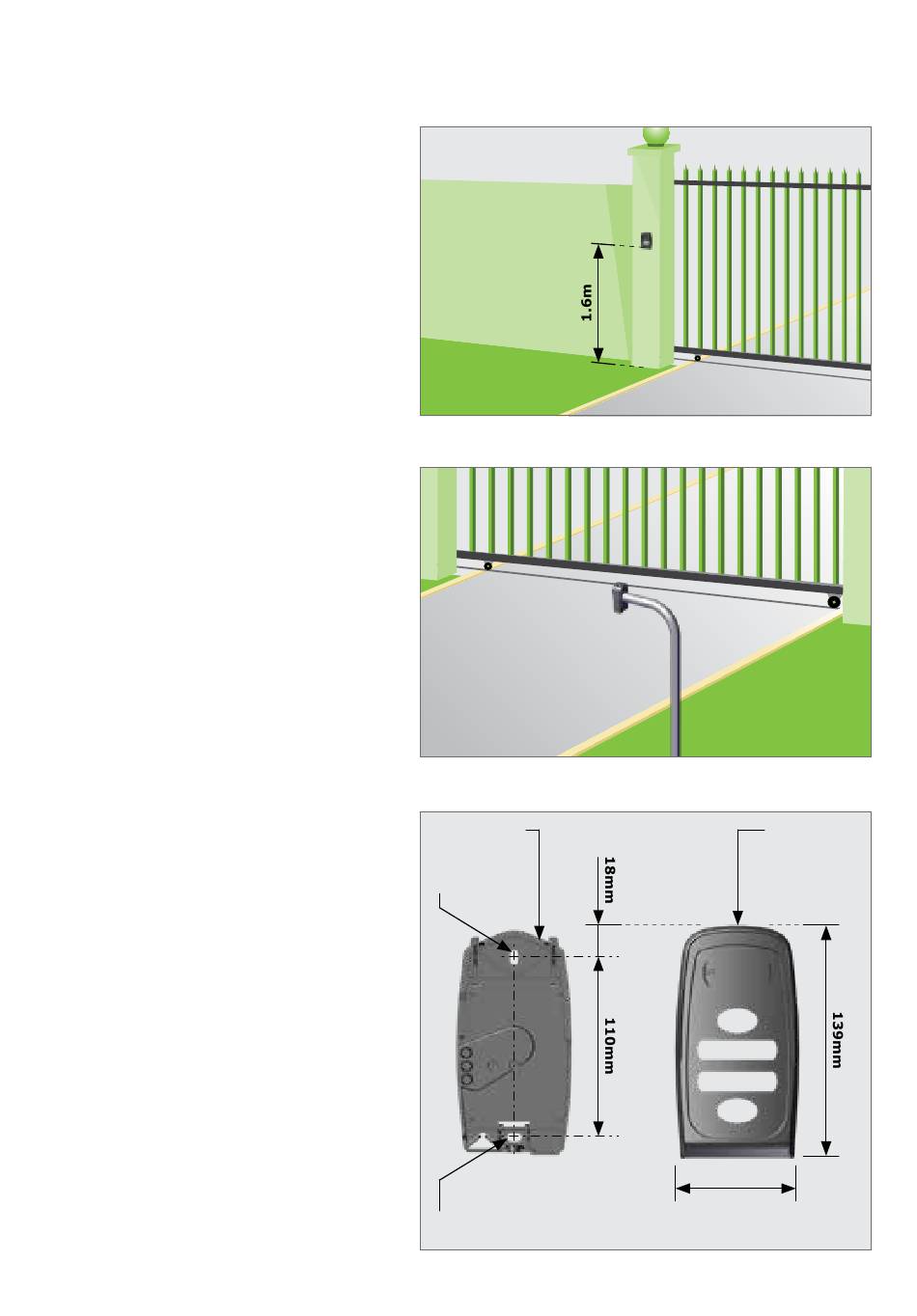

A recommended height is shown in
Figure 6.
5.1.2. Gooseneck Installation
Alternatively mount the entry panel
onto a gooseneck ensuring that:
•
The entry panel does not
protrude too far into the
driveway
•
The entry panel is not set too far
back and can be easily accessed
from a vehicle
•
The height allows for comfortably
speaking into the microphone
Dimensions of the Entry Panel Back
Plate and Mounting Holes relative to
the Entry Panel Cover are shown in
Figure 8.
Entry Panel
Back Plate
Mounting
Hole
Mounting
Hole
page 12
INSTALLATION
FIGURE 6
FIGURE 7
Entry Panel
Cover
74mm
FIGURE 8
