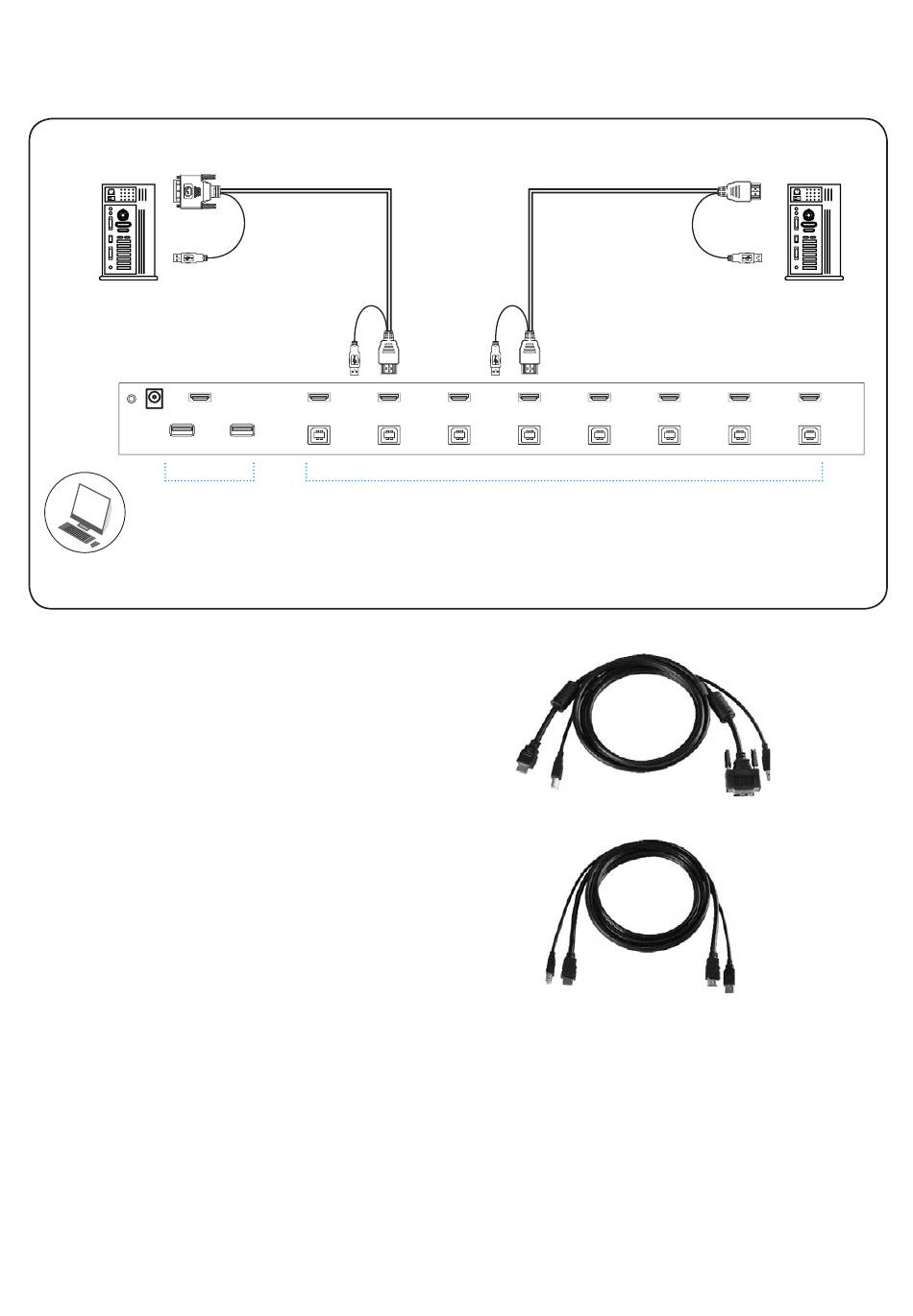

< 1.2 > KVM port connection
2K KVM
DVI-D HDMI
KVM-DK-6 KVM cable KVM-HK-6

KVM cable

USB-A USB-A
Video
8 7 6 5 4 3 2 1
Keyboard Mouse
Local Console KVM port x 8
1 x HDMI 1.4 ( HDMI + USB-B )
2 x USB-A ( KB / MS )
2K KVM Cable
KVM-DK-6 : 6 feet DVI-D KVM cable
( Server end : DVI-D + USB-A )
( KVM port : HDMI + USB-B )
KVM-HK-6 : 6 feet HDMI KVM cable
( Server end : HDMI + USB-A )
( KVM port : HDMI + USB-B )
UM-CV2KKVM-Q120V1 P.2 www.rackmountsales.com
