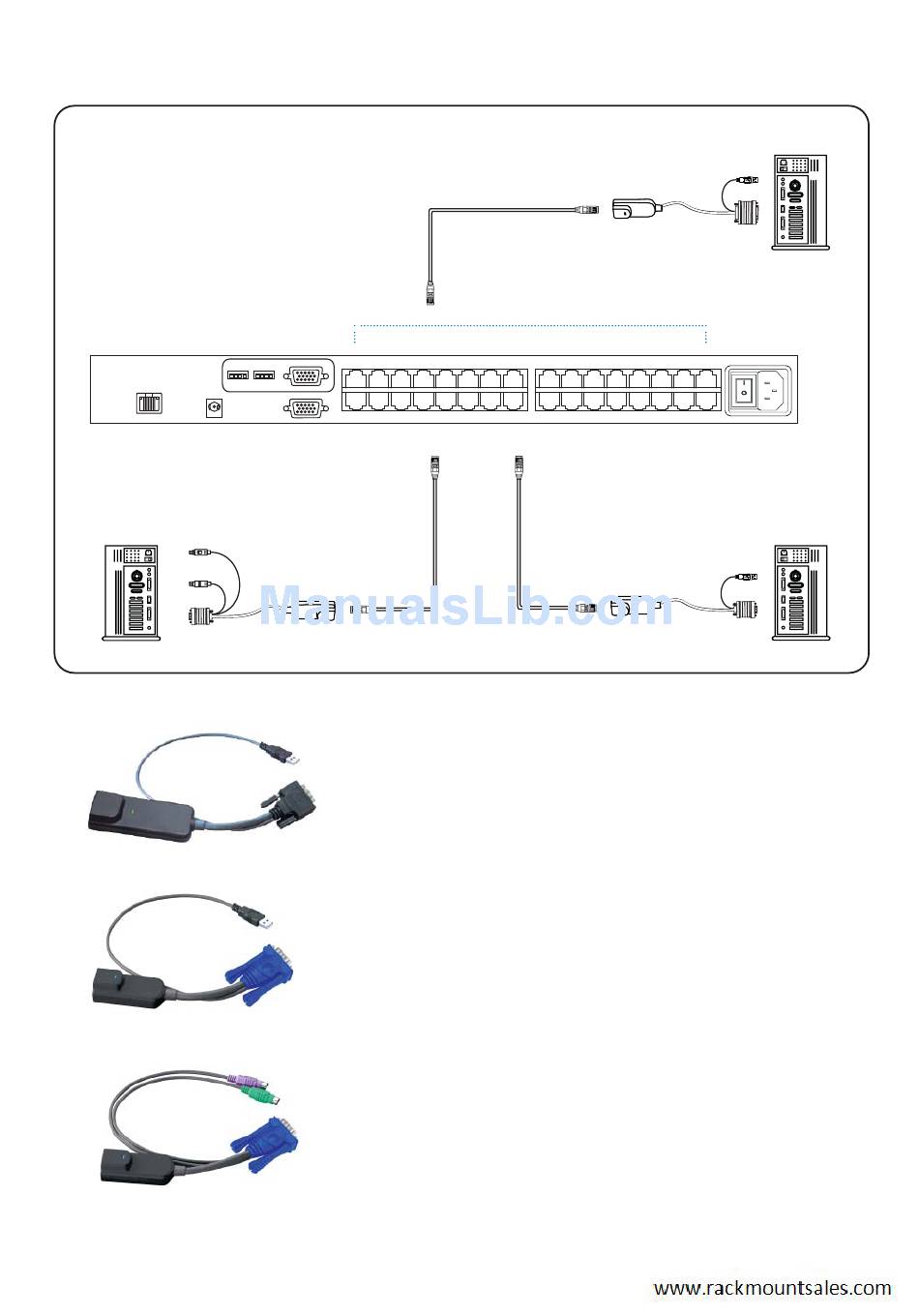

< 2.2 > KVM port & Cat6 dongle connection
PS/2 Servers
PS/2
VGA
UM-CV-UKVM-Q411V3
CAT 5 / 6 cable
max. 40 meters
32
31
30
29
24
23
22
21
VGA-PS/2 dongle
CAT 5 / 6 cable
max. 40 meters
Cat5 Dongle USB/DVI
■
To connect DVI-D connector to the computer's video card
■
To connect USB connector to the computer's USB port
Cat5 Dongle USB
■
To connect DB-15 connector to the computer's video card
■
To connect USB connector to the computer's USB port
Cat5 Dongle PS/2
■
To connect DB-15 connector to the computer's video card
■
To connect PS/2 keyboard connector to the computer's keyboard port
■
To connect PS/2 mouse connector to the computer's mouse port
Combo Cat6 2-console KVM
DVI-USB dongle
Cat6 KVM port
28
27
26
25
16
15
14
13
20
19
18
17
8
7
6
5
VGA-USB dongle
P.11
USB Servers
USB
DVI-D
12
11
10
9
4
3
2
1
USB Servers
USB
VGA
www.austin-hughes.com
