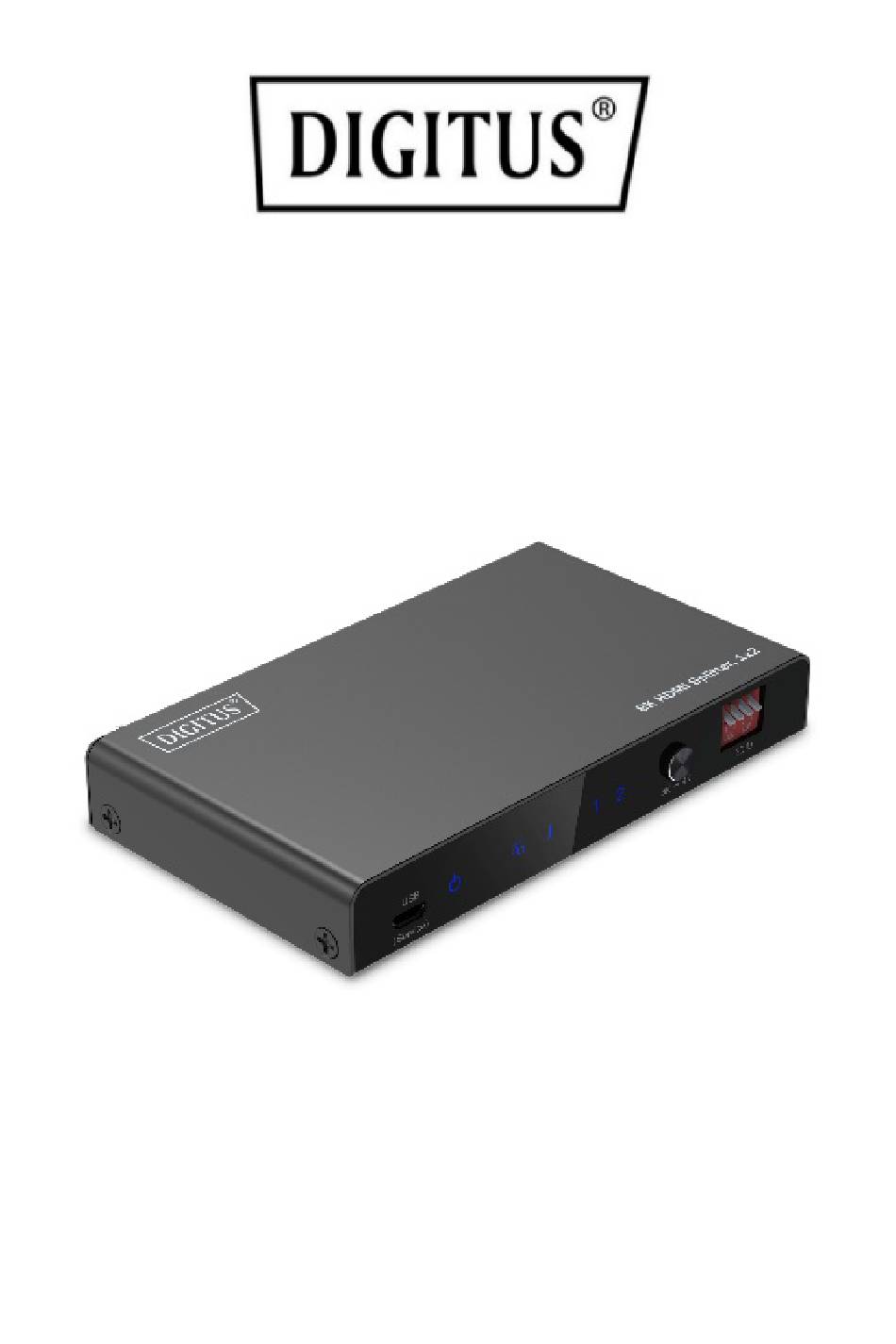

- Page 1 8K HDMI Splitter, 1x2 Quick Installation Guide DS-55339...
-
Page 2: Main Features
1. Introduction The DIGITUS® HDMI Splitter splits/reflects your HDMI device’s audio and video signals on 2 TVs, monitors or projectors with a resolution of UHD 8K/60 Hz. Audio signals can also be decoupled and separately reproduced via Toslink or 3.5 mm stereo connection. Using the EDID changeover switch, settings can be adjusted to fit the connected display. -
Page 3: Panel Description
Progressive (50&60Hz) 480p,576p,720p,1080p,4K@24/30Hz, 4K@50/60/120Hz, 8K@24/30/50/60Hz Operating Temperature 0℃ to 70℃ Storage Humidity 5% to 90% RH non-condensation Power Consumption (Max) Dimensions (LxWxH) 122 x 70.6 x 18 mm Weight 196g 5. Panel Description USB (service): For factory use only Power LED LED indicator for downscaler mode HDMI input LED indicator 1-2: LED indicator for HDMI output 1-2... -
Page 4: Supported Formats
resolution to 4K or 1080p via the UHD (4K) or FHD (1080p) screen with fixed connection to output 2. EDID: DIP switch for copying output 1 EDID and fifteen standard EDID modes INPUT: HDMI input OUTPUT 1-2: HDMI output 10.) Audio output via 3.5mm cable 11.) Audio output via SPDIF cable... - Page 5 You need connect standard HDMI-compatible 2.1 cable to enjoy 8K visual effects ↓=HIGH ↑=LOW Binary 4 3 2 1 EDID Setting Description Code 0000 ↓↓↓↓ Copy EDID from HDMI Output1 0001 ↓↓↓↑ 8Kx4K@60 4:4:4/8Kx4K@30 4:4:4/4Kx2K@120Hz 4:4:4, 48G, HDR10, 2CH AUDIO 0010 ↓↓↑↓...
-
Page 6: Connection Diagram
7. Connection Diagram... -
Page 7: Troubleshooting
8. Troubleshooting Q: Power light is off and product is not working. How can I fix this? A: First, please check the following items: 1. Ensure that your devices HDMI input and power supply are properly connected and power is turned on. 2. - Page 8 Disclaimer Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
