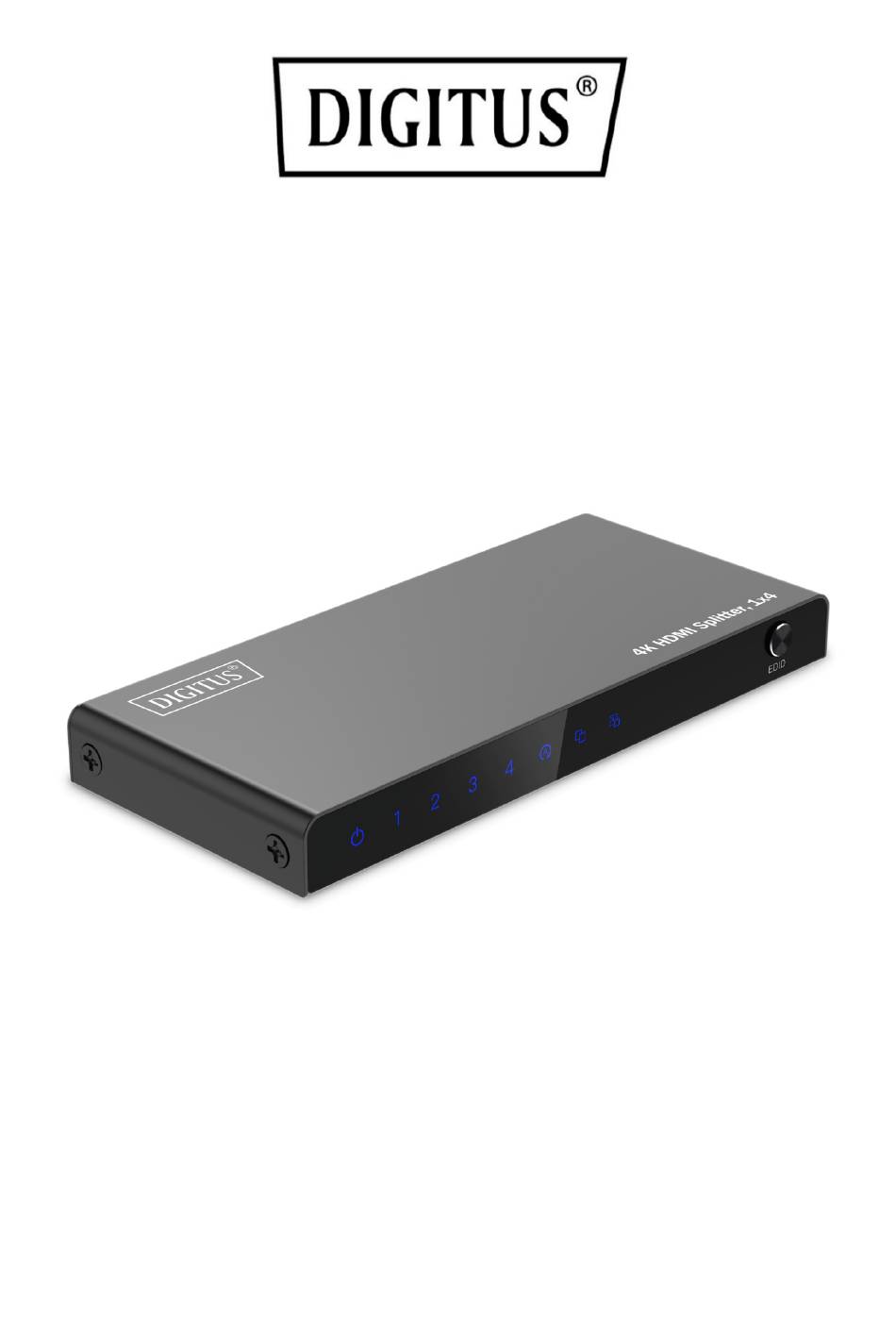

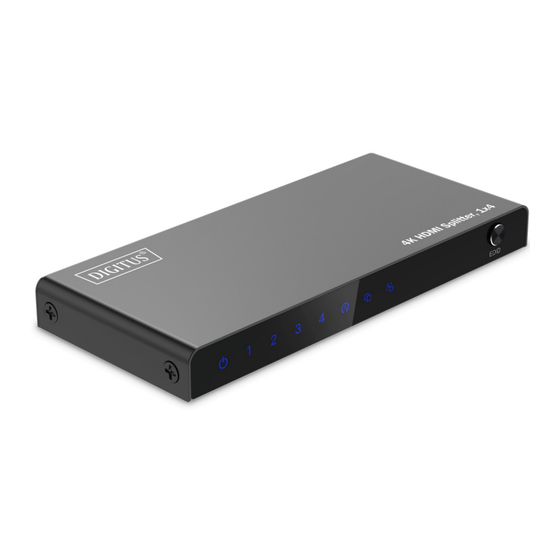

- Page 1 4K HDMI Splitter, 1x4 Quick Installation Guide DS-55337...
-
Page 2: Main Features
1. Introduction The DIGITUS® HDMI Splitter splits your HDMI device’s audio and video signals on 4 TVs, monitors or projectors with a resolution of UHD 4K / 60 Hz. Via EDID management, you can choose from 3 modes (Copy, Auto, Downscaler). The integrated Downscaler supports the display of 4K contents on Full HD displays. -
Page 3: Technical Features
4. Technical Features Specs Description Video Inputs 1x HDMI Video Output 4x HDMI 50/60 Hz Vertical Frequency Range Video Bandwidth 6.0Gbps / 600MHz per channel, 18Gbps all channels Interlaced Resolutions 480i, 576i, 1080i Progressive Resolutions 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4k@50/60Hz Operating Temperature 0℃... - Page 4 5. Overview Power LED Downscaler Mode LED Indicator: 1-4: HDMI Output 1-4 LED Indicator ON is In Downscaler EDID Mode which can downscale Auto Mode LED Indicator: the Input 4K Resolution to 1080p by the FHD (1080p) ON is in normal Auto EDID Display and 4K Resolution to Mode which gets the lower the 4K Displays Simultaneously.
-
Page 5: Connection Diagram
6. Connection Diagram 7. Troubleshooting Problems Causes Solutions Power light is off and No power supply Please connect the micro product is not connected. USB cable and connect it working. to the signal source or, if necessary, to a USB charging adapter via a socket. - Page 6 10 m for 4K@30Hz / 1080p. No picture out only Maybe the displays Change a lower sound out or output can’t support the resolution of the input pink screen. resolution or the HDMI signal to check HDCP. whether this issue or not;...
