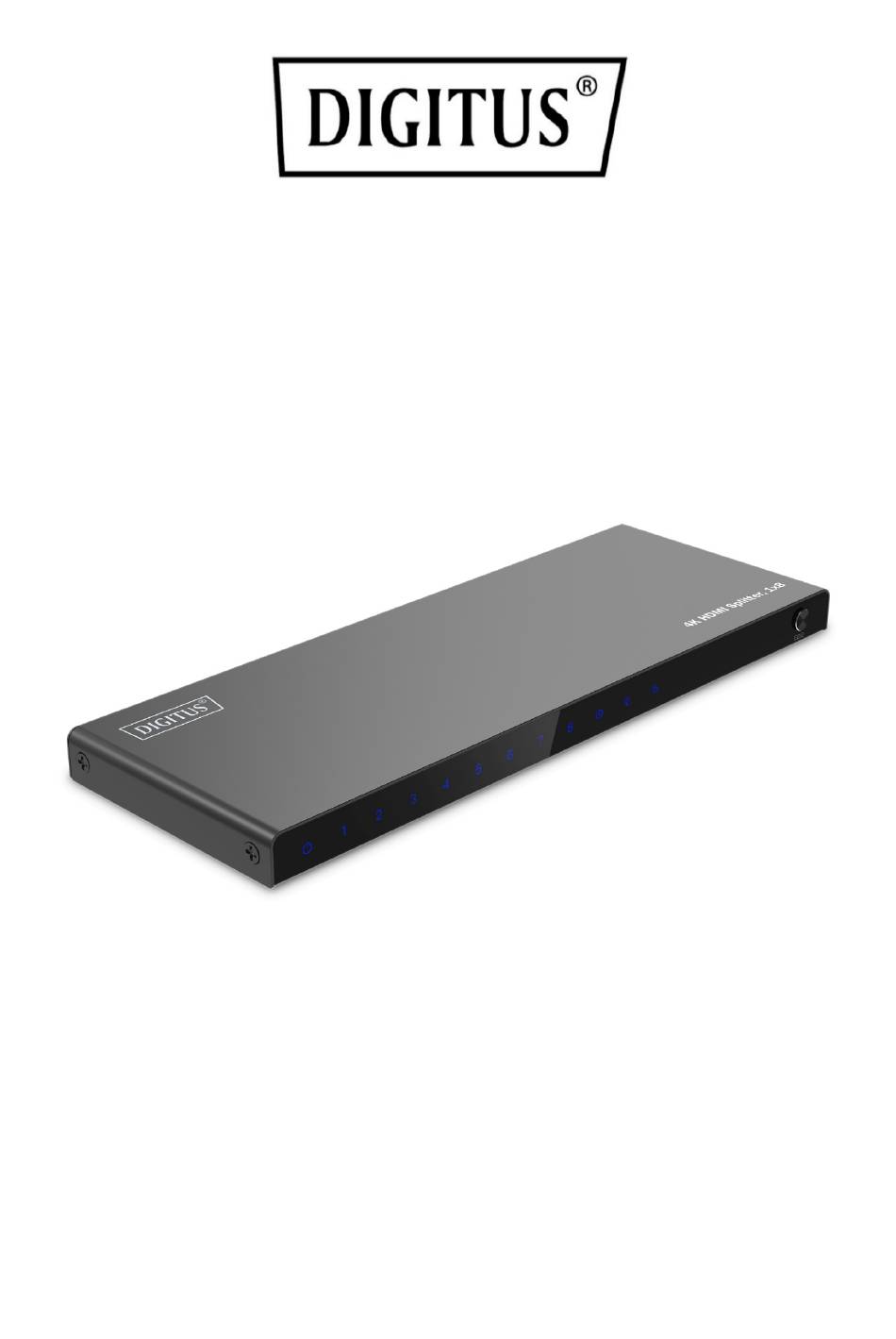

- Page 1 4K HDMI Splitter, 1x8 Quick Installation Guide DS-55338...
-
Page 2: Main Features
1. Introduction The DIGITUS® HDMI Splitter splits your HDMI device’s audio and video signals on 8 TVs, monitors or projectors with a resolution of UHD 4K / 60 Hz. Via EDID management, you can choose from 3 modes (Copy, Auto, Downscaler). The integrated Downscaler supports the display of 4K contents on Full HD displays. -
Page 3: Technical Features
4. Technical Features Item Description Video Inputs 1x HDMI Video Output 8x HDMI Vertical Frequency 50/60 Hz Range Video Bandwidth 6.0 Gbps / 600MHz per channel, 18 Gbps all channels Interlaced Resolutions 480i, 576i, 1080i Progressive Resolutions 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4k@50/60Hz Operating Temperature 0℃... - Page 4 5. Overview Power LED Downscaler Mode LED Indicator: 1-8: HDMI Output 1-8 LED Indicator ON is In Downscaler EDID Mode which can downscale Auto Mode LED Indicator: the Input 4K Resolution to 1080p by the FHD (1080p) ON is In Normal Auto EDID Display and 4K Resolution to Mode which gets the Lower the 4K Displays Simultaneously.
-
Page 5: Connection Diagram
6. Connection Diagram 7. Troubleshooting Problems Causes Solutions Power light is off and No power supply Please connect the product is not working connected power supply No signal output on The HDMI cable may Please use at least a High the screen not comply with the Speed HDMI 2.0 cable... - Page 6 whether this issue or not; if not, maybe the customer should change a non-HDCP input source or HDCP compliant displays or devices No picture out to a Maybe the downscaler The downscaler function FHD TV when function can`t support only support the connecting a 4K@60Hz the input signal, such 4K@60Hz 4:4:4 and...
