8K HDMI Splitter, 1x4
Quick Installation Guide
DS-55340

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-55340 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digitus DS-55340

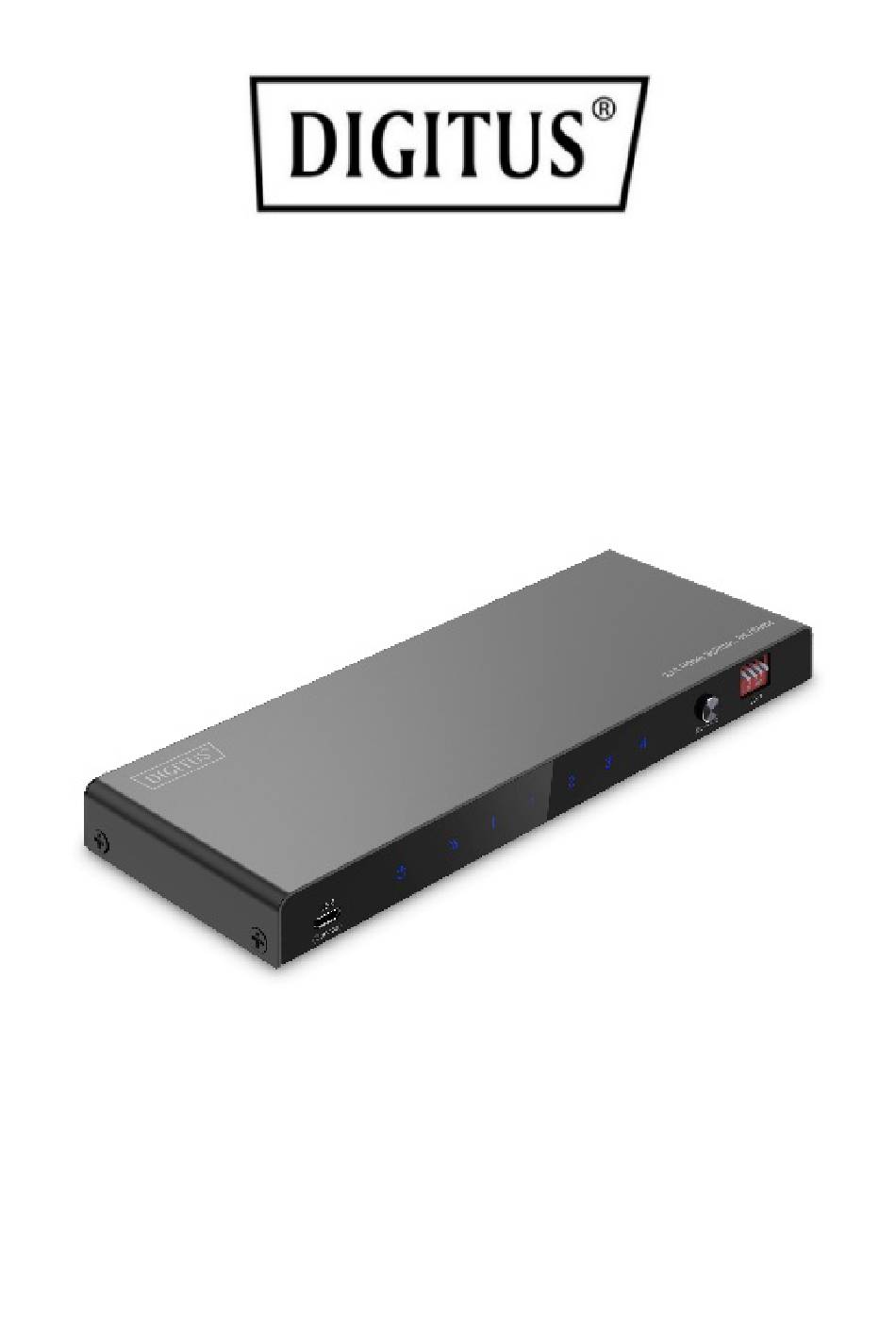

  • Page 1 8K HDMI Splitter, 1x4 Quick Installation Guide DS-55340...
  • Page 2: Main Features

    1. Introduction The DIGITUS® HDMI Splitter splits/reflects your HDMI device’s audio and video signals on 4 TVs, monitors or projectors with a resolution of UHD 8K/60 Hz. Audio signals can also be decoupled and separately reproduced via Toslink or 3.5 mm stereo connection. Using the EDID changeover switch, settings can be adjusted to fit the connected display.
  • Page 3: Panel Description

    Progressive (50&60Hz) 480p,576p,720p,1080p,4K@24/30Hz, 4K@50/60/120Hz, 8K@24/30/50/60Hz Operating Temperature 0℃ to 70℃ Storage Humidity 5% to 90% RH non-condensation Power Consumption (Max) Weight 285g 5. Panel Description USB (service): For factory use only Power LED LED indicator for downscaler mode HDMI input LED indicator 1-4: LED indicator for HDMI output 1-4 8K→4K: Downscaler mode selection button: ON is in downscaler EDID mode, which can downscale the 8K input...
  • Page 4: Supported Formats

    11.) Audio output via SPDIF cable 12.) DC/5V: DC 5V input 6. Supported formats • Support full 3D video format • Support high definition resolution 8K@60Hz 4:4:4, 4K@120Hz and 1080P@240Hz • Support 1200MHz/12Gbps per channel bandwidth (48Gbps all channels) • Support 12bit per channel (36bit all channels) deep color •...
  • Page 5 ↓=HIGH ↑=LOW Binary 4 3 2 1 EDID Setting Description Code 0000 ↓↓↓↓ Copy EDID from HDMI Output1 0001 ↓↓↓↑ 8Kx4K@60 4:4:4/8Kx4K@30 4:4:4/4Kx2K@120Hz 4:4:4, 48G, HDR10, 2CH AUDIO 0010 ↓↓↑↓ 8Kx4K@60 4:4:4/8Kx4K@30 4:4:4/4Kx2K@120Hz 4:4:4, 48G, HDR10, DOLBY/DTS 5.1 0011 ↓↓↑↑ 8Kx4K@60 4:4:4/8Kx4K@30 4:4:4/4Kx2K@120Hz 4:4:4, 48G, HDR10, HD AUDIO...
  • Page 6: Connection Diagram

    7. Connection Diagram...
  • Page 7: Troubleshooting

    8. Troubleshooting Q: Power light is off and product is not working. How can I fix this? A: First, please check the following items: 1. Ensure that your devices HDMI input and power supply are properly connected and power is turned on. 2.
  • Page 8 Disclaimer Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
