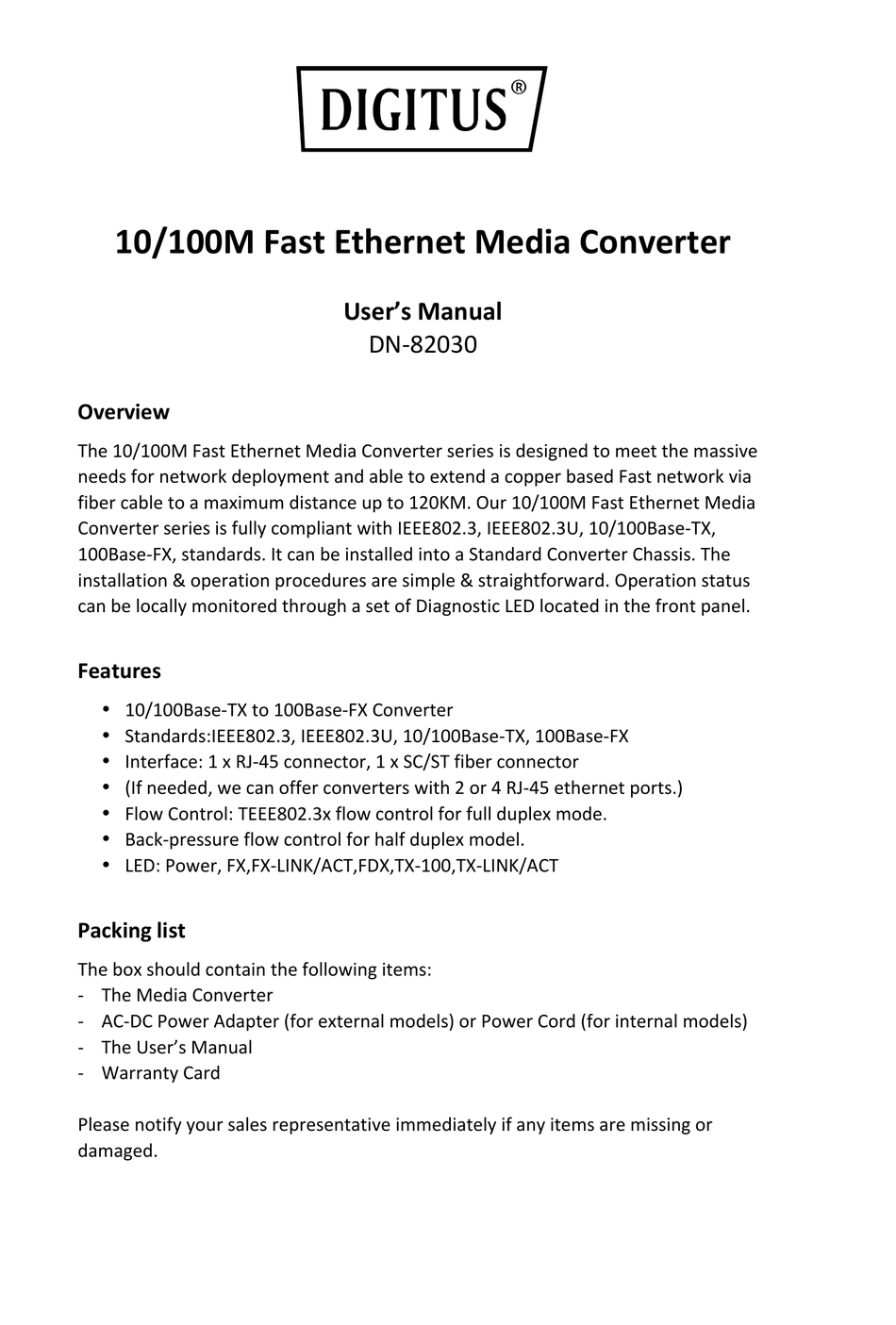

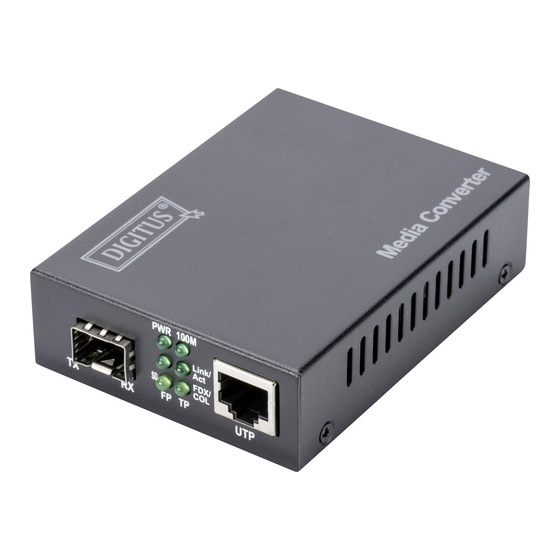

10/100M Fast Ethernet Media Converter

Overview

The 10/100M Fast Ethernet Media Converter series is designed to meet the massive
needs for network deployment and able to extend a copper based Fast network via
fiber cable to a maximum distance up to 120KM. Our 10/100M Fast Ethernet Media
Converter series is fully compliant with IEEE802.3, IEEE802.3U, 10/100Base-TX,
100Base-FX, standards. It can be installed into a Standard Converter Chassis. The
installation & operation procedures are simple & straightforward. Operation status
can be locally monitored through a set of Diagnostic LED located in the front panel.

Features

 10/100Base-TX to 100Base-FX Converter
 Standards:IEEE802.3, IEEE802.3U, 10/100Base-TX, 100Base-FX
 Interface: 1 x RJ-45 connector, 1 x SC/ST fiber connector
 (If needed, we can offer converters with 2 or 4 RJ-45 ethernet ports.)
 Flow Control: TEEE802.3x flow control for full duplex mode.
 Back-pressure flow control for half duplex model.
 LED: Power, FX,FX-LINK/ACT,FDX,TX-100,TX-LINK/ACT

Packing list

The box should contain the following items:
- The Media Converter
- AC-DC Power Adapter (for external models) or Power Cord (for internal models)
- The User's Manual
- Warranty Card
Please notify your sales representative immediately if any items are missing or
damaged.
User's Manual
DN-82030

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DN-82030 and is the answer not in the manual?

Questions and answers

Related Manuals for Digitus DN-82030

Summary of Contents for Digitus DN-82030

  • Page 1 10/100M Fast Ethernet Media Converter User’s Manual DN-82030 Overview The 10/100M Fast Ethernet Media Converter series is designed to meet the massive needs for network deployment and able to extend a copper based Fast network via fiber cable to a maximum distance up to 120KM. Our 10/100M Fast Ethernet Media Converter series is fully compliant with IEEE802.3, IEEE802.3U, 10/100Base-TX,...

  • Page 2: Led Description

    Installation • Attach fiber cable from the media converter to the fiber network. The fiber connections must be matched - transmit socket to receive socket, the TX, RX fiber cable must be paired at both ends. • Attach a UTP cable from the 10/100BASE-T network to the RJ-45 port on the media converter.

  • Page 3: Technical Specifications

    Fiber port works in the full duplex mode FDX/COL Fiber port works in the half duplex mode Fiber signal is detected Fiber signal not detected Technical Specifications 1. Standard Protocol: IEEE802.3 10 Base-T standard IEEE 802.3u 100Base-TX/FX standard 2. Connector: one RJ-45 connector, one SC/ST fiber connector. 3.
