- Page 1 4K HDMI Splitter, 1x2 Quick Installation Guide DS-55336...
-
Page 2: Main Features

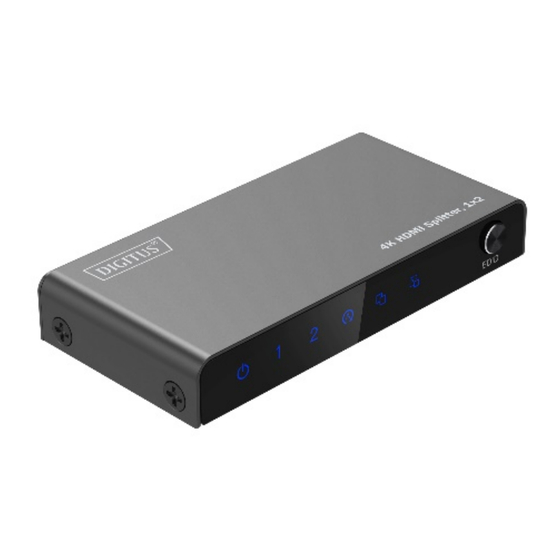

1. Introduction The DIGITUS® HDMI Splitter splits your HDMI device’s audio and video signals on two TVs, monitors or projectors with a resolution of UHD 4K / 60 Hz. Via EDID management, you can choose from 3 modes (Copy, Auto, Downscaler). -
Page 3: Technical Features
4. Technical Features Input Ports HDMI x 1 Output Ports HDMI x 2 Vertical Frequency 50/60Hz Range Video Amplifier 6.0Gbps/600MHz per channel(18Gbps all Bandwidth channels) Interlaced(50&60H 480i,576i,1080i Progressive(50&60 480p,576p,720p,1080p,4K@24/30Hz,4K@50 /60Hz Operating 0℃ to 70℃ Temperature Storage Humidity 5% to 90% RH non-condensation Power Consumption (Max) -
Page 4: Panel Description
5. Panel Description Power LED 1-2: HDMI Output 1-2 LED indicator Auto Mode LED Indicator: ON is in Normal Auto EDID Mode which gets the Lower Resolution and Audio Format of the Both Output for the Input Device to Output the Signal to fit both Outputs Copy Mode LED Indicator: ON is In Copy EDID Mode which copy the Output1 Resolution and Audio Format for the Input... -
Page 5: Connection Diagram
DC/5V: Micro USB DC 5V Input INPUT: HDMI Input port OUTPUT 1-2: HDMI Output 1-2 port 6. Connection Diagram... -
Page 6: Troubleshooting
7. Troubleshooting Problems Causes Solutions Power light is Please check if the power off, and adapter and Micro USB No power supply product is not power cable is connected working properly Please use at least one High Speed HDMI 2.0 HDMI cable may cable that does not not be HDMI 2.0... - Page 7 Disclaimer Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
