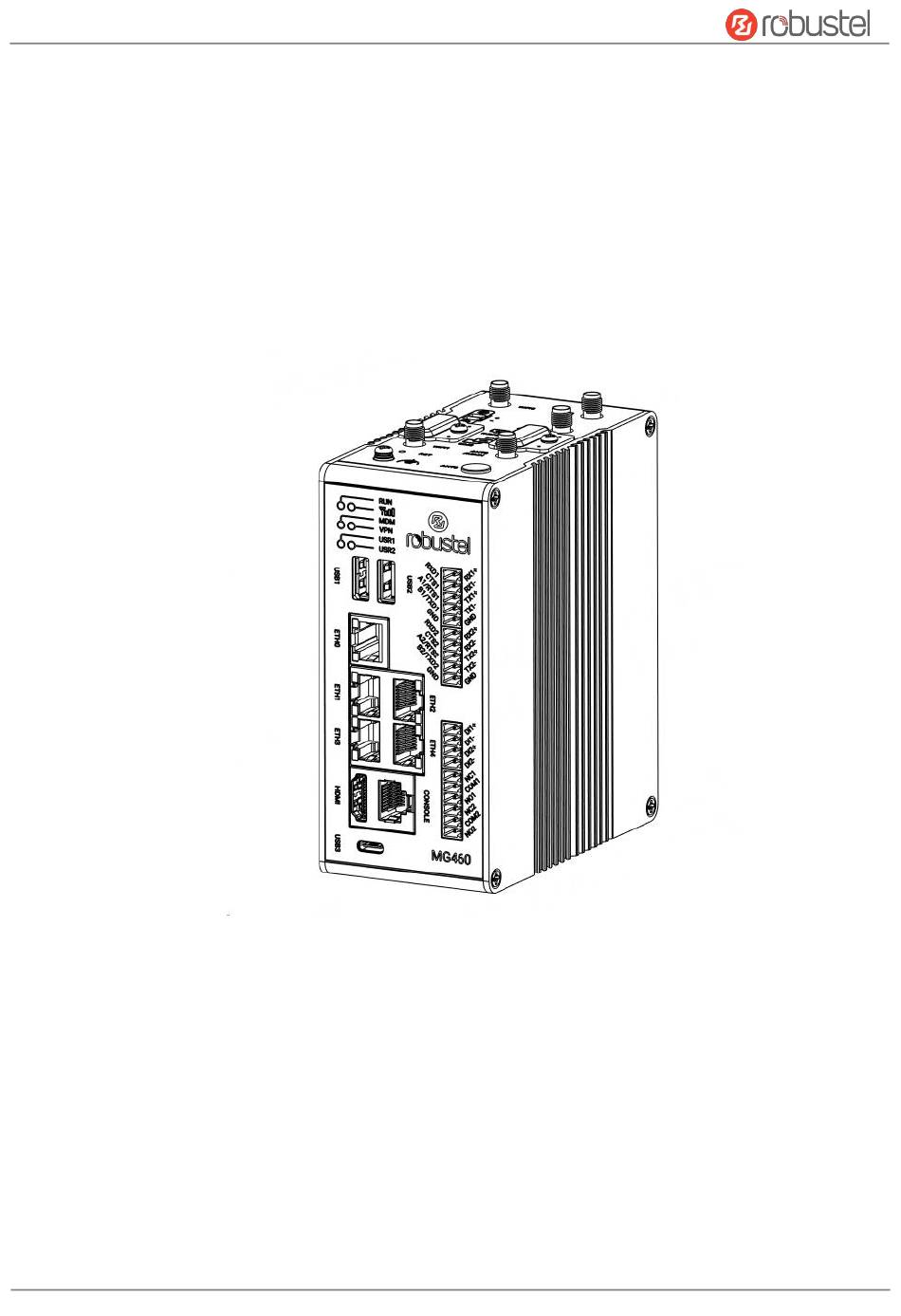

- Page 1 Robustel MG460 Hardware Manual MG460 Hardware Manual Version: 1.0.0 Date: Jun. 14, 2024 RT147_HM_MG460 1/12...
- Page 2 Robustel MG460 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit...
- Page 3 Robustel MG460 Hardware Manual Note: Operation of 5150 ~ 5250 MHz frequency range is restricted to indoor use only. 電波法の規定により 5GHz 帯は屋内使用に限ります。 Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 4 Simplified EU Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with all applicable EU directives. The full text of the EU DoC is available at the following internet address: www.robustel.com/certifications/...
- Page 5 Robustel MG460 Hardware Manual Related download link Find more product documents or tools at: www.robustel.com/documentation/ Technical Support Tel: 400-987-3791 Email: support@robustel.com Web: www.robustel.com Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions.
- Page 6 Robustel MG460 Hardware Manual Overview Robustel’s MG460 is a new generation of industrial maritime gateway which is compliant to IEC61162-460 (Maritime Safety and Security) standards and IEC60945 standards. The MG460 can be used as a gateway between on-board vessel equipment and external services (Cloud platforms, servers, etc).

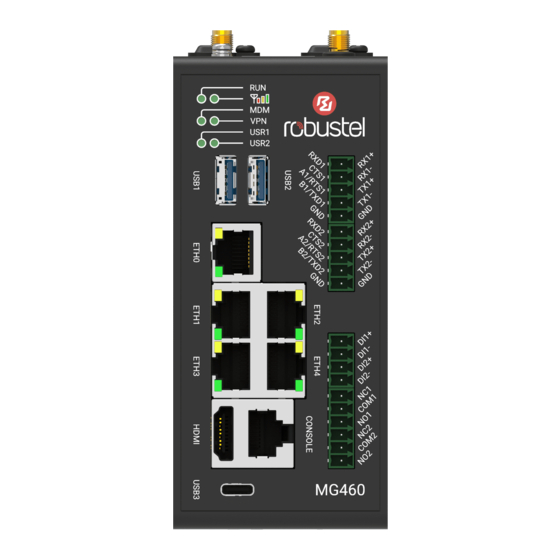

- Page 7 Robustel MG460 Hardware Manual Panel Layout (May vary on different models, please refer to Table1) Table1 Model Cellular Antenna Port WIFI Antenna Port GNSS Antenna Port MG460-A5ZAZ-NU B147001 MG460-A5CAZ-NU B147002 MG460-A5AAZ-4L-A06GL B147003 MG460-A5BAZ-4L-A06GL B147004 RT147_HM_MG460 7/12...
- Page 8 Robustel MG460 Hardware Manual Interface Descriptions Serial Ports. Two software configurable serial ports, could be configured as RS232 or RS485 or RS422. Name RS232 Mode RS485 Mode RS422 Mode RXD1 or RX1+ data receiving data receiving positive CTS1 or RX1-...
- Page 9 Robustel MG460 Hardware Manual Note: When the relay is off, NC is connected to COM, and NO is disconnected. The external power supply input voltage range is DC 5-48V, with a maximum load current of 300mA. Note: The external power supply DC voltage range is 5V~30V, 0.1A max.
- Page 10 Robustel MG460 Hardware Manual Hardware Installation 1. SIM Card Installation. Remove the SIM card cover to insert the SIM cards into the device, then screw up the cover. 2. Antenna Installation. Rotate the antenna into the antenna connector accordingly. 3. Terminal Block Installation. Insert the 4 PIN,5PIN and 6PIN terminal blocks into the interfaces connector, then can connect the devices or sensors to the gateway with wires via corresponding interfaces.
- Page 11 Robustel MG460 Hardware Manual 4. Power Supply installation. Insert the power supply cord into the corresponding terminal block if needed, then insert the terminal block into the power connector. 5. DIN Rail Mounting. Use 2 M3 screws to fix the DIN rail to the device, then hang the DIN rail on the mounting bracket.
- Page 12 Robustel MG460 Hardware Manual Login to the Device After logging in, the home page of the web Connect the gateway’s Ethernet port to a PC with interface is displayed, then you can view system a standard Ethernet cable. information and perform configuration on the device.
