Summary of Contents for Mytee Stingray HP90

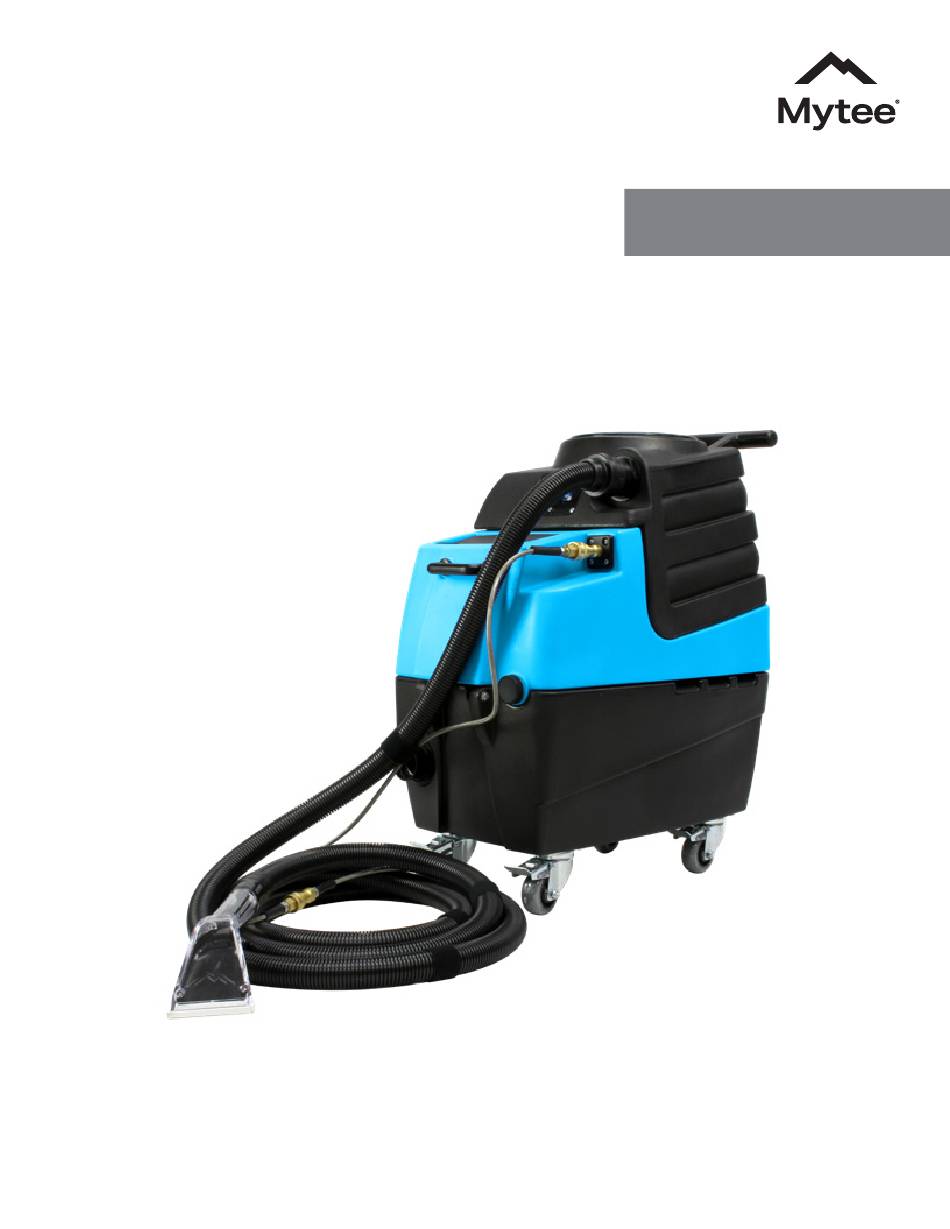

- Page 1 User Manual Stingray ™ Model: HP90 REV. 6/17/24 13655 Stowe Dr. Poway, CA 92064 P: (858) 679-1191 F: (858) 726-6005 www.mytee.com...
- Page 2 Congratulations on the purchase of your new Stingray™ Automotive Detailing Extractor. As technology continues to develop you can work confidently knowing that both Mytee and its employees are equally dedicated to developing with the industry and its advances. Like any other piece of machinery or technology, the Stingray™ also requires proper maintenance and care to keep the product working over extended use.
-
Page 3: Table Of Contents
Table of Contents Important Safety Information At a Glance 1.1 - Technical Specifications 1.2 - Included with the Stingray™ 1.3 - Stingray™ Front View 1.4 - Stingray™ Rear View Machine Operation 2.1 - Powering the Stingray™ 2.2 - Filling the Solution Tank 2.3 - Connecting the Hoses 2.4 - Operating the Stingray™... -
Page 4: Important Safety Information
When and if calling This machine must be grounded. If it should malfunction or Mytee for support, please have your Model and Serial Number break down, grounding provides a path of least resistance for available for faster assistance. - Page 5 Important Safety Information To reduce the risk of fire, electrical shock, or injury: may contain: chemicals, grease, oil, acid, alkalies, or other dangerous liquids. 1. Read all instructions before using equipment. 18. Do not leave operating unattended. Use only as described in this manual. Use only manufacturer’s recommended attachments.
-
Page 6: At A Glance
1 - At a Glance 1.1 - Technical Specifications Solution Tank 5 gallon capacity Recovery Tank 5 gallon capacity Vacuum Motor Single 3-stage low amp, 100 CFM, 130” water lift Vacuum Shut-Off Stainless steel shut-off switch in recovery tank Pump 120 PSI diaphragm pump, 1.3 GPM Heater 1,200W REAL HEAT™... -
Page 7: Stingray™ Front View
1 - At a Glance 1.3 - Stingray™ Front View 1. Faucet fill hose 7. 5 gallon solution tank 2. Solution tank lid 8. Solution hose quick connect fitting 3. Front lift handle 9. 5 gallon recovery tank 4. Solution tank drain cap 10. -
Page 8: Stingray™ Rear View
1 - At a Glance 1.4 - Stingray™ Rear View 1. Push handle 4. Rear lift handle 2. Recovery tank drain gate valve 5. 25’ power cord 3. Maintenance access plates... -
Page 9: Machine Operation
2 - Machine Operation 2.1 - Powering the Stingray™ 2.4 - Operating the Stingray™ Plug the power cord from the Stingray into a standard In order to avoid vapor locking the unit, the components grounded wall outlet. The Stingray operates off a single, should be switched on by following the procedure below after ♦... -
Page 10: Machine Maintenance
Weekly Clean and inspect tanks. 3.3 - System Maintainer Clean and inspect hoses. Regular flushing of the solution system with Mytee System Check and clean internal filters. Maintainer keeps your extractor running efficiently by removing Check power supply cable. hard water scaling that builds up in the system. -
Page 11: Troubleshooting
Circuit breaker tripped in building. Reset breaker in building. turning on. Faulty switch or power cord. Contact a Mytee Service Center. Unclog the jet by removing and soaking in a vinegar Jet is clogged. and water solution. Scrub with a soft brush. Repeat if Poor solution flow. - Page 12 Mytee, LLC 13655 Stowe Dr. Poway, CA 92064 www.mytee.com © 2024 Mytee, LLC...
