Mytee ks-500 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
12/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ks-500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mytee ks-500

Summary of Contents for Mytee ks-500

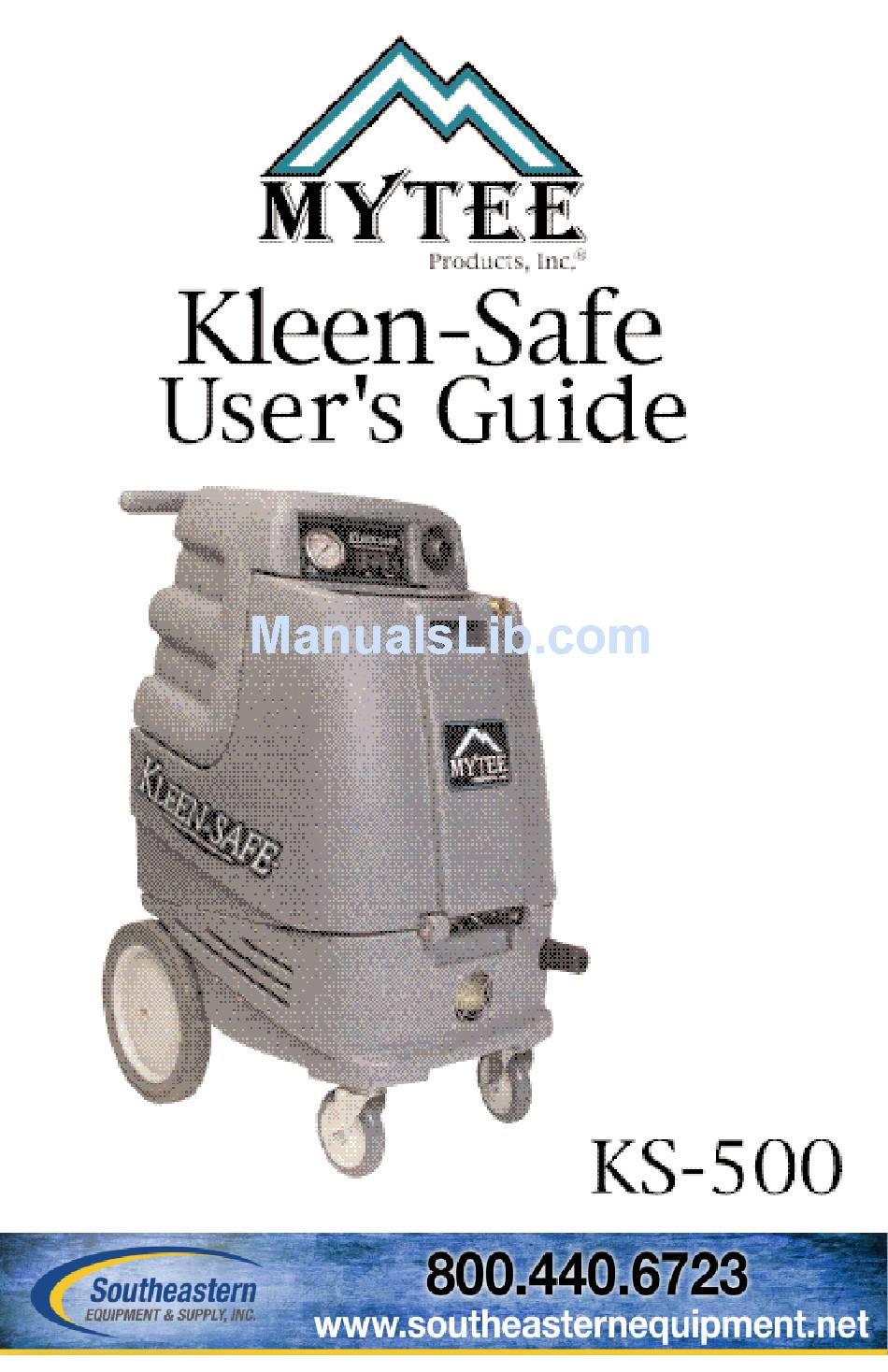

  • Page 1 12/02...
  • Page 2 Mytee Products, Inc. strive to keep you on the cutting edge with superior quality and technology. Keep in mind that your KS-500 is a machine and neglect and/or abuse will cause unnecessary damage and void warranty. With simple maintenance how- ever, your machine will give you quality performance for many years to come.

  • Page 3: Table Of Contents

    Table of Contents General Safety ........3 Warranty .

  • Page 4: General Safety

    General Safety/ Warnings These precautions have been written for your safety and the safety of others in mind. These precautions MUST BE FOLLOWED at all times to avoid serious injury, harm, and/or death, and damage to the unit. Warning: To reduce the risk of fire, electrical shock, or injury: 1.

  • Page 5: Warranty

    Mytee warrants a percentage of the cost of replacement of rotationally-molded housings pro-rated as follows: Mytee will pay 100% of replacement cost in the first year from the date of purchase, 75% of replacement cost in the second year from the date of purchase and 25% in the third year from the date of purchase.

  • Page 6: Rma

    Mytee has no obligation to honor the limited warranties set forth herein unless the original pur- chaser, promptly upon discovering the warranty claim and prior to continuing to use the prod- uct, contacts Mytee or a Mytee authorized distributor or service center to describe the claim and to receive and follow instructions for documenting and resolving the claim.

  • Page 7: Description/ Advantages

    PRIMING Mytee Products, Inc. is the first in the industry to introduce the 60 second electronic, hassle-free prime. With just a push of a button, your KLEEN- SAFE will prime in 60 seconds, without a priming hose!

  • Page 8: Set-Up

    Set-up 1. You will find a black plastic 45-degree elbow inside the machine. Place this elbow on the drain valve on the rear of the unit. The elbow will direct the flow of recovered water downward. 2. Plug in yellow electrical cord into a 20-amp circuit outlet. 3.

  • Page 9: Operation

    Operation KS500 1. To begin cleaning, make sure trigger gun is in the low-pressure chemical position (nozzle pulled out.) Spray desired areas thoroughly by rotating nozzle to desired fan pattern (left= stream, right= fan.) 2. When desired application of chemical is obtained, set trigger gun to the high-pressure solution position (nozzle pushed in), and rinse off chemical.

  • Page 10: Troubleshooting

    TROUBLESHOOTING SYMPTOM: Unit will not turn on. PROBLEM: Not plugged in. SOLUTION: Plug machine in proper outlet. PROBLEM: Circuit breaker has popped. SOLUTION: Reset circuit breaker. Make sure no other items are running on the same circuit as machine. Outlet must be a 20-amp circuit. PROBLEM: Wire from power cord has become disconnected from terminal block.
  • Page 11 PROBLEM: Pressure switch on pump head is bad. SOLUTION: Replace with new pressure switch. SYMPTOM: Vacuum motor not working properly. PROBLEM: Switch on switch plate is bad. SOLUTION: Replace switch. PROBLEM: Hose not connected tightly to wand or machine. SOLUTION: Connect hose tightly.

  • Page 12: Parts List

    DESCRIPTION PART NUMBER 3 stage C302 vacuum motor 450 psi pump C313 1/4” male B101 quick disconnect 1/4” female B102 quick disconnect 1/2” filter strainer B119A In-line filter B175 Dema injector B223...
  • Page 13 DESCRIPTION PART NUMBER 6” vacuum G056 tank lid Float assembly cage H235 Float assembly P755 elbow Plunger and seals RK0022 Valves and O-rings RK0023 Cam bearing RK0024 2 position switch E515...
  • Page 14 DESCRIPTION PART NUMBER Prime/pressure B239 relief cilinoid valve High pressure hose A943 Scrub brush H695 Scrub brush handle H696 12” hand squeegee H699 Gulper tool H700 18” floor squeegee H815 with wheels...
  • Page 15 DESCRIPTION PART NUMBER 35’ green H843 vacuum hose 35’ yellow H844 vacuum hose 2 piece, aluminum, P505 button-lock wand Hose hanger H375 Chemical container H688 bracket High pressure A1007 spray gun Dryer nozzle A919...

  • Page 16: Notes

    IMPORTANT INFORMATION Model # ________________________ Serial # ______________________ Distributor name and phone# ______________________________________ Date of purchase ___________________ NOTES...
