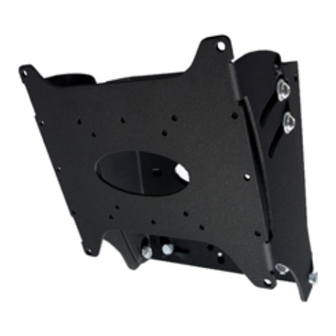

B-Tech BT 7533 Assembly And Installation Manual

B j BT 7533
LCD SCREEN WALL MOUNT
WITH TILT
SETTER [ov] DESIGN"

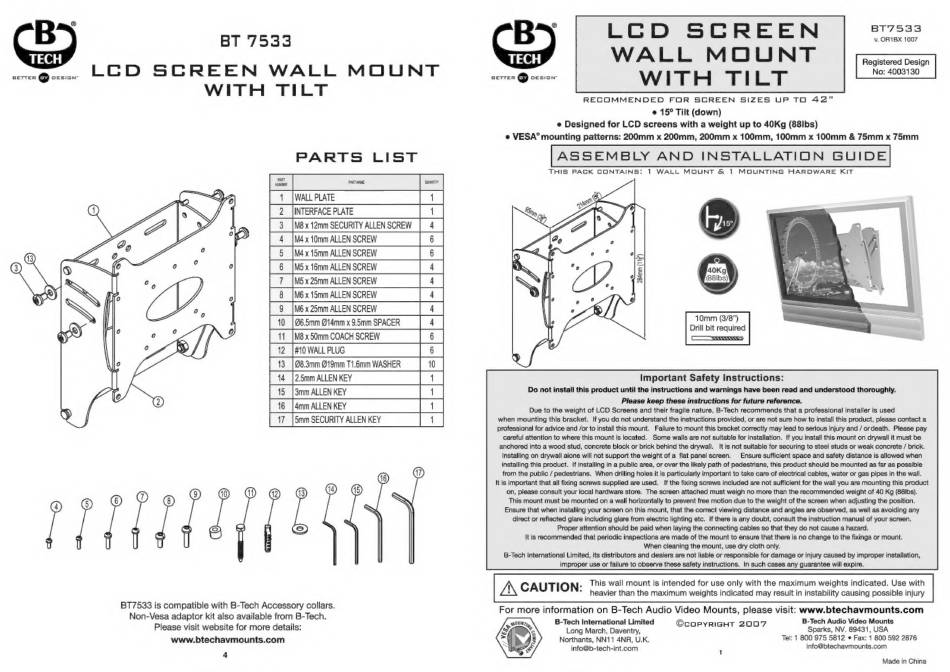

PARTS LIST
ee ee ae
| 1 (waua = Ct
| 2 |INTERFACEPLATE |1
| 3 |M@x 12mm SECURITY ALLENSCREW | 4 |
| 4 |MéxtOmmALLENSCREW | 6_|
| 5 |MéxtSmmALLENSCREW
|6 |MSxt6mmALLENSCREW |
| 8 [MBx't6mmALLENSCREW |
| 9 [Mex25mmALLENSCREW |
|10 [265mmgidmmx9S5mmSPACER |
| 11 [MBx50mmCOACHSCREW |
|12 [#owaPue |e
| 13 |08.3mm O19mmT1.6mmWASHER | 10 |
|14 [25mmALLENKEY 1
|15 [ammALLENKEY |
| 16 [maene |
| 17 |SmmSECURITYALLENKEY |1)
BT7533 is compatible with B-Tech Accessory collars.
Non-Vesa adaptor kit also available from B-Tech.
Please visit website for more details:
www.btechavmounts.com
4
BETTER © DESIGN
BA LCD SCREEN MESS
v. OR1BX 1007
Registered Design
No: 4003130
WALL MOUNT
WITH TILT
RECOMMENDED FOR SCREEN SIZES UP TO 42"
e 15° Tilt (down)
e Designed for LCD screens with a weight up to 40Kg (88Ibs)
e VESA" mounting patterns: 200mm x 200mm, 200mm x 100mm, 100mm x 100mm & 75mm x 75mm
ASSEMBLY AND INSTALLATION GUIDE
THIS PACK CONTAINS: 1 WALL MOUNT & 1 MOUNTING HARDWARE KIT
10mm (3/8")
Drill bit required
Important Safety Instructions:
Do not install this product until the instructions and warnings have been read and understood thoroughly.
Please keep these instructions for future reference.
Due to the weight of LCD Screens and their fragile nature, B-Tech recommends that a professional installer is used
when mounting this bracket. If you do not understand the instructions provided, or are not sure how to install this product, please contact a
professional for advice and /or to install this mount. Failure to mount this bracket correctly may lead to serious injury and / ordeath. Please pay
careful attention to where this mount is located. Some walls are not suitable for installation. If you install this mount on drywall it must be
anchored into a wood stud, concrete block or brick behind the drywall. It is not suitable for securing to steel studs or weak concrete / brick.
Installing on drywall alone will not support the weight of a flat panel screen. Ensure sufficient space and safety distance is allowed when
installing this product. If installing in a public area, or over the likely path of pedestrians, this product should be mounted as far as possible
from the public / pedestrians. When drilling holes it is particularly important to take care of electrical cables, water or gas pipes in the wall.
It is important that all fixing screws supplied are used. If the fixing screws included are not sufficient for the wall you are mounting this product
on, please consult your local hardware store. The screen attached must weigh no more than the recommended weight of 40 Kg (88lbs).
This mount must be mounted on a wall horizontally to prevent free motion due to the weight of the screen when adjusting the position.
Ensure that when installing your screen on this mount, that the correct viewing distance and angles are observed, as well as avoiding any
direct or refiected glare including glare from electric lighting etc. If there is any doubt, consult the instruction manual of your screen.
Proper attention should be paid when laying the connecting cables so that they do not cause a hazard.
It is recommended that periodic inspections are made of the mount to ensure that there is no change to the fixings or mount.
When cleaning the mount, use dry cloth only.
B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation,
improper use or failure to observe these safety instructions. In such cases any guarantee will expire.
A CAUTION: This wall mount is intended for use only with the maximum weights indicated. Use with
heavier than the maximum weights indicated may result in instability causing possible injury
For more information on B-Tech Audio Video Mounts, please visit: www.btechavmounts.com
B-Tech International Limited OCOPYRIGHT 2007 B-Tech Audio Video Mounts
Long March, Daventry, Sparks, NV. 89431, USA
Northants, NN11 4NR, U.K. Tel: 1 800 975 5812 © Fax: 1 800 592 2876
info@b-tech-int.com info@btechavmounts.com
Made in China
