B-Tech BT8210 Quick Start Manual

ULTRA-SLIM
UNIVERSAL FLAT SCREEN WALL MOUNT
FOR LARGE SCREENS
*
MAXIMUM FIXING DIMENSIONS
HORIZONTAL: 440mm (17.3") VERTICAL: 400mm (15.7")
*
SCREEN NOT INCLUDED
Only 14mm (0.6")
from wall
B-TECH AUDIO VIDEO MOUNTS
©2010 Bennett Technologies Limited. All rights reserved. B-Tech Audio Video Mounts is a division of Bennett Technologies Limited.
B-Tech, Better By Design, Mountlogic, Torsion Lock & OWLS are registered trademarks of Bennett Technologies Limited.
All other brands and products names are trademarks of their respective owners. Photographs are for illustrative purposes only. E&OE.

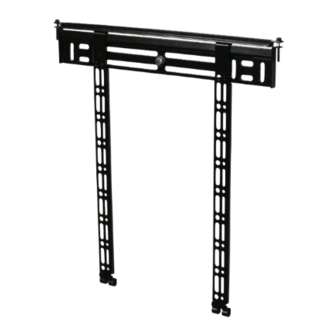

BT8210
Ultra-slim design
for close to
wall installation.
Post installation
screen alignment.
DESIGNED FOR LED,
LCD AND PLASMA
SCREENS UP TO 55"
(139cm) / 50kg (110lbs)
• Fits screens with mounting patterns up to
440mm (17.3") x 400mm (15.7") including VESA
75 x 75mm, 100 x 100mm, 200 x 100mm,
200 x 200mm, 200 x 300mm, 300 x 200mm,
300 x 300mm, 400 x 200mm, 400 x 300mm
and 400 x 400mm
• Ultra-slim design mounts screen
only 14mm (0.6") from wall
• Features 'OWLS' On Wall Levelling System
™
• Suitable for concrete / brick or up to 16" stud walls
• Security locking screws, Allen key and
locking bar provided for secure installation
• Universal screen fixing kit supplied,
including M4, M5, M6, M8 screws and spacers
• Simple 'hook on' installation with
all mounting hardware included
• Available in Black
www.btechavmounts.co.uk
:
®
Features
'Torsion Lock'
TM
security.
Comprehensive
screen fixing
kit included.
