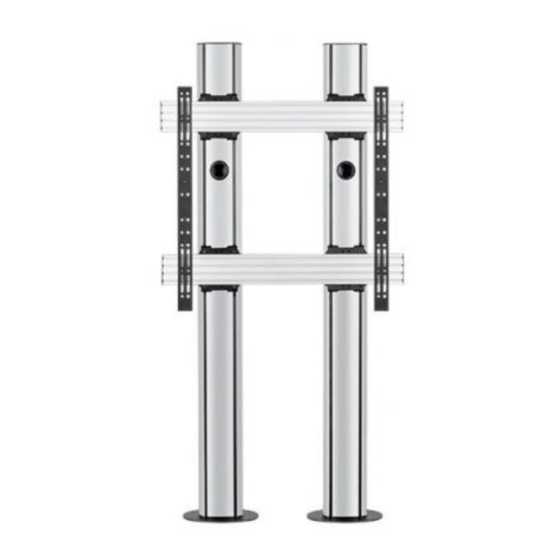

Premium bolt down single screen twin column uc stand
Hide thumbs

Advertisement

Quick Links

Download this manual
BT8708
PREMIUM BOLT DOWN
SINGLE SCREEN TWIN COLUMN
UC STAND
INSTALLATION GUIDE
SPECIFICATIONS
• Recommended for screens up to: 100" (254cm)
• Max load: 140kg (308lbs)
• Suitable for displays with fixings up to 972 x 800mm
• Stand dimensions: H.1910 x W.1005 x D.210mm
• Integrated cable management
www.btechavmounts.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the AV mounts BT8708 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for B-Tech AV mounts BT8708

Summary of Contents for B-Tech AV mounts BT8708

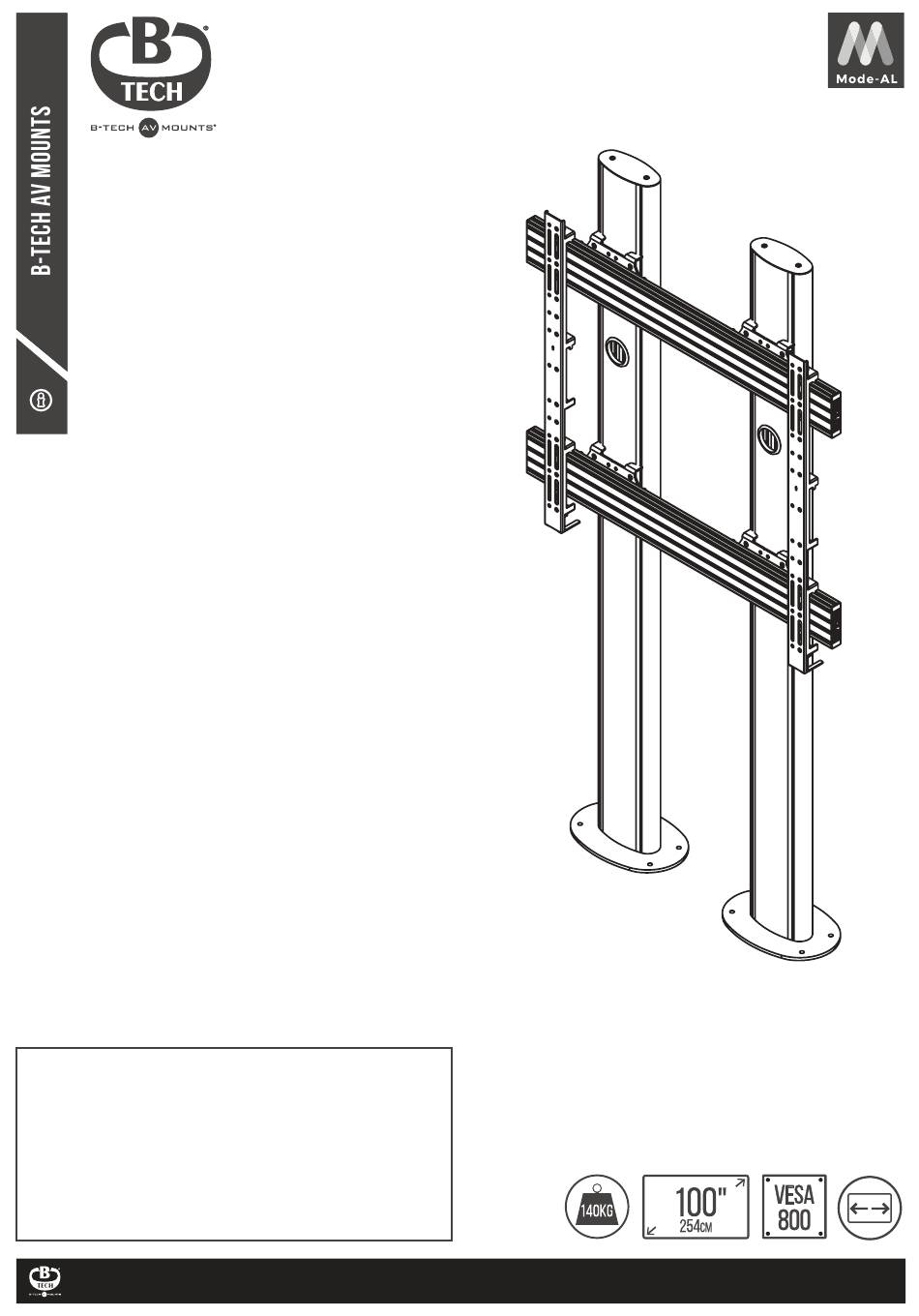

  • Page 1 BT8708 PREMIUM BOLT DOWN SINGLE SCREEN TWIN COLUMN UC STAND INSTALLATION GUIDE SPECIFICATIONS • Recommended for screens up to: 100" (254cm) • Max load: 140kg (308lbs) • Suitable for displays with fixings up to 972 x 800mm • Stand dimensions: H.1910 x W.1005 x D.210mm •...

  • Page 2: Table Of Contents

    Please check carefully to make sure there are no missing or defective parts - defective parts must never be used. B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

  • Page 4: Parts List

    BT8708 PARTS LIST PLEASE KEEP THIS FOR FUTURE REFERENCE INSTALLATION TOOLS REQUIRED Crosshead screwdriver Pliers/Cutter...
  • Page 5 ITEM PART DESCRIPTION 1.9M COLUMN END CAP COLUMN REAR COVER M6 x 12mm HEX SCREW M6 x 12mm GRUB SCREW (OPTIONAL) SQUARE NUT (OPTIONAL) COVER STRIP 3AF HEX KEY 4AF HEX KEY BOLT DOWN BASE M6 x 35mm CSK HEX SCREW 4AF HEX KEY RAIL-TO-COLUMN MOUNTING BRACKET M6 x 40mm CSK HEX SCREW...

  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS OPTIONAL FIX REAR COVER TO COLUMNS Place item A3 into the back of item A1. Use items A5 & A6 at the top and bottom of the column slot to secure rear cover. FRONT REAR REAR FIX BASES TO COLUMNS Fix item B1 to the bottom of item A1 using item B2.
  • Page 7 ATTACH MOUNTING BRACKETS TO COLUMNS i. Insert 4 x item C2 into item C1 and attach item C3. Screw two full turns to leave item C3 at the end of item C2. ii. Slide item C1 down the front slots of item A1 to the correct height and tighten items C2. Note: Space the 2 mounting plates (item C1) 600mm apart on each column.
  • Page 8 HOOK RAILS ONTO MOUNTING BRACKETS i. Insert 4 x item C4 into item D1 (2 in the top channel, 2 in the bottom channel) on each side of the rails. M8 SLIDING M8 x 12mm ii. Screw 2 x item C5 into item C4 in the top channel - allow at least a 6mm gap HEX SCREW INSERT so the rail can be hooked on to item C1.
  • Page 9 iii. Hook items D1 onto items C1 and fix with in place with item C5. iv. Attach item D2 to the ends of items D1. Note: The rear cover strips (item A7) can also be inserted into the back of the columns at this point.
  • Page 10 ATTACH END CAPS Fix item A2 onto the top of item A1 using item A4. M6 x 12mm HEX SCREW BOLT STAND TO THE FLOOR Pre-drill holes in floor and using suitable ground anchor fixings (not supplied), fix stand to floor. BASE PLATE FIXING DIMENSIONS 230mm 4 x Ø10.5...
  • Page 11 ATTACH INTERFACE ARMS TO SCREEN Fix items E1 to the rear of the screen using items E3 - E16. Note: Ensure the arms are facing the correct way round and the same holes are used on both arms. E3-E11 SCREEN Use spacers (items E13-E16) for screens with recessed fixings.
  • Page 12 LOCK SCREEN TO RAIL Tighten the safety screws on the bottom of item E1 securing the screen to item D1. Optional: Note: If necessary, adjust the height adjustment HEIGHT ADJUSTMENT screws on top of item E1 to level the screen. SCREW SAFETY SCREW...

  • Page 13: Optional Accessories

    OPTIONAL ACCESSORIES BT8390-SA + BT7863 CAMERA SHELF AND ADAPTOR BT8390-SA BT7863 BT7884 FLIP DOWN STORAGE TRAY...

  • Page 14: Product Dimensions

    PLEASE KEEP THIS FOR FUTURE REFERENCE FRONT VIEW Max 972mm 8.4mm 10.4mm 60.8mm 24mm BOTTOM VIEW 60mm 230mm 10.5mm 115mm These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.
  • Page 15 BT8708 DIMENSIONS PLEASE KEEP THIS FOR FUTURE REFERENCE SIDE VIEW 141.5mm BACK VIEW 79.5mm 60.8mm TOP VIEW 1005mm These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.

  • Page 16: B-Tech Contact Details

    ©2021 B-Tech International Design and Manufacturing Ltd. All rights reserved. B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd. B-Tech AV Mounts and the B-Tech logo are registered trade marks. All other brands and product names are trademarks of their respective owners.
