BT4002

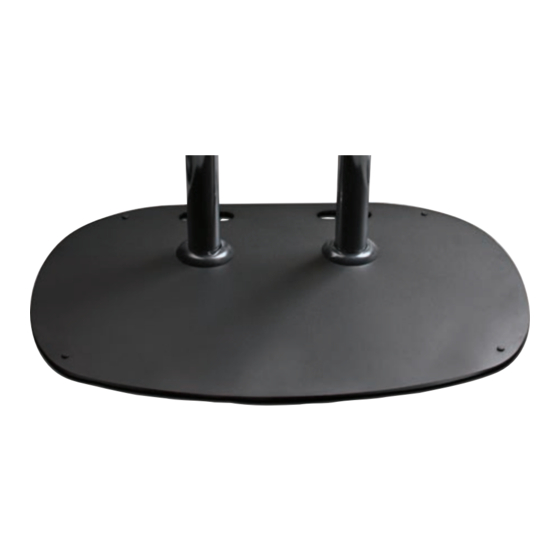

LARGE FLOOR BASE
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Floor Base
PLEASE KEEP THIS FOR FUTURE REFERENCE
Installation Safety Notes...............................................................................................................2
Parts List.......................................................................................................................................4
Product Assembly.....................................................................................
Typical Installations......................................................................................................................9
Optional Accessories................................. . .................................................................................10
Product Dimensions....................................................................................................................11
B-Tech Contact Details................................................................................
INSTALLATION TOOLS REQUIRED
B-TECH AUDIO VIDEO MOUNTS
FEATURES
Can be used free standing or bolted to the floor
Maximum recommended screen size and
weight: 65" (165cm) / 70kg
Supplied with rubber feet for use when free standing
Base dimensions (including feet): 890mm x 610mm x 28mm
Base features grab handles for easy handling
Requires 2 x Ø60mm support columns, screen interface kit
and accessory collars - all sold separately
CONTENTS
10mm Hex Key
(Supplied)
www.btechavmounts.com
..........................................6
.......................................12
Advertisement
Related Manuals for B-Tech BT4002
Summary of Contents for B-Tech BT4002
-
Page 1: Table Of Contents
and accessory collars - all sold separately CONTENTS Installation Safety Notes.......................2 Parts List............................4 Product Assembly..........................6 Typical Installations........................9 Optional Accessories........................10 Product Dimensions........................11 B-Tech Contact Details........................12 INSTALLATION TOOLS REQUIRED 10mm Hex Key (Supplied) B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com... -
Page 2: Installation Safety Notes
INSTALLATION SAFETY INSTRUCTIONS CAUTION: This base is intended for use only with the maximum weights indicated. Use with flat screen heavier than the maximum indicated may result in instability causing possible injury. ... - Page 3 CS Spole nost B-Tech International Ltd. doporu uje provést instalaci tohoto produktu prost ednictvím odborného instalátora AV i jinak zp sobilé osoby. Spole nost B-Tech International Ltd, její distributo i a prodejci nenesou odpov dnost za škody nebo zran ní zp sobená nevhodnou instalací. Tento výrobek je nutno umístit do vhodné konstrukce a pou vat jen po uvedenou maximální...
-
Page 4: Parts List
BT4002 PARTS LIST Ø60mm poles (BT4005, BT4011, BT4015 and BT4020) are sold separately Suitable for loads up to 70kg... - Page 5 REF PART NAME QTY 1 B E 1 PLASTIC HOLE CAP 2 4 RUBBER FOOT 3 8 4 M16 x 50mm SCREW 2 5 POLE TRIM RING ...
-
Page 6: Product Assembly
INSTALLATION INSTRUCTIONS Attach the rubber feet (part 3) to the floor base. Note: Do not insert rubber feet (part 3) if fixing the base to the floor. Optional: Slide pole trim rings (part 5) onto the bottom of the poles. Ø60mm poles (BT4005, BT4011, BT4015 and BT4020) - Page 7 Fix the poles to the floor base (part 1). Ø60mm poles (BT4005, BT4011, BT4015 and BT4020) are sold separately Ø60mm POLE...
- Page 8 Mount the screen using one of the following B-Tech screen mounting kits: BT7507 / BT8500 interface plate with BT8009 mounting plate and 4 x BT4041 or 2 x BT7060 accessory collars. Or, BT8431 / BT8432 flat screen tilt mount with 2 x BT7060 accessory collars. ...
-
Page 9: Typical Installations
TYPICAL INSTALLATIONS BT8500 BT7507 BT8009 BT8009 BT4041 BT4041 Ø60mm POLE Ø60mm POLE BT4002 BT4002 BT8432 BT7060 BT8009 BT8500 Ø60mm POLE Ø 60mm POLE BT4041 BT4002 BT4002... -
Page 10: Optional Accessories
Double pole installation Single pole installation BT4041 BT7172 BT7173 BT4041 BT4041 Back to back on a double pole BT7174 BT7174 BT4041 BT4002 BT4041 BT7174 Steel Shelf VC Camera Shelf BT4041 BT7060 BT7060 BT7864 BT7032 BT4041 ... -
Page 11: Product Dimensions
BT4002 PRODUCT DIMENSIONS 890mm 600mm 276mm 110mm 720mm Ø60mm 890mm THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-‐TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. -
Page 12: B-Tech Contact Details
B-Tech & Better By Design are registered trademarks of B-Tech International Limited. All other brands and product names are trademarks of their respective owners. Photographs are for illustrative purposes only. E&OE. AMA-BT4002-V1.2-PROBX-0215-BTECH MADE IN THE UK...
