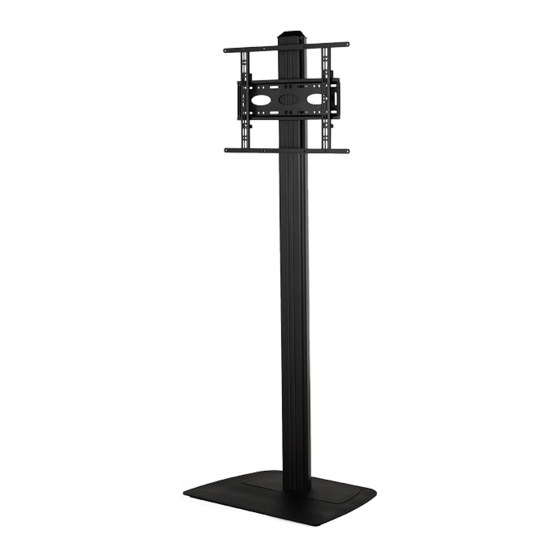

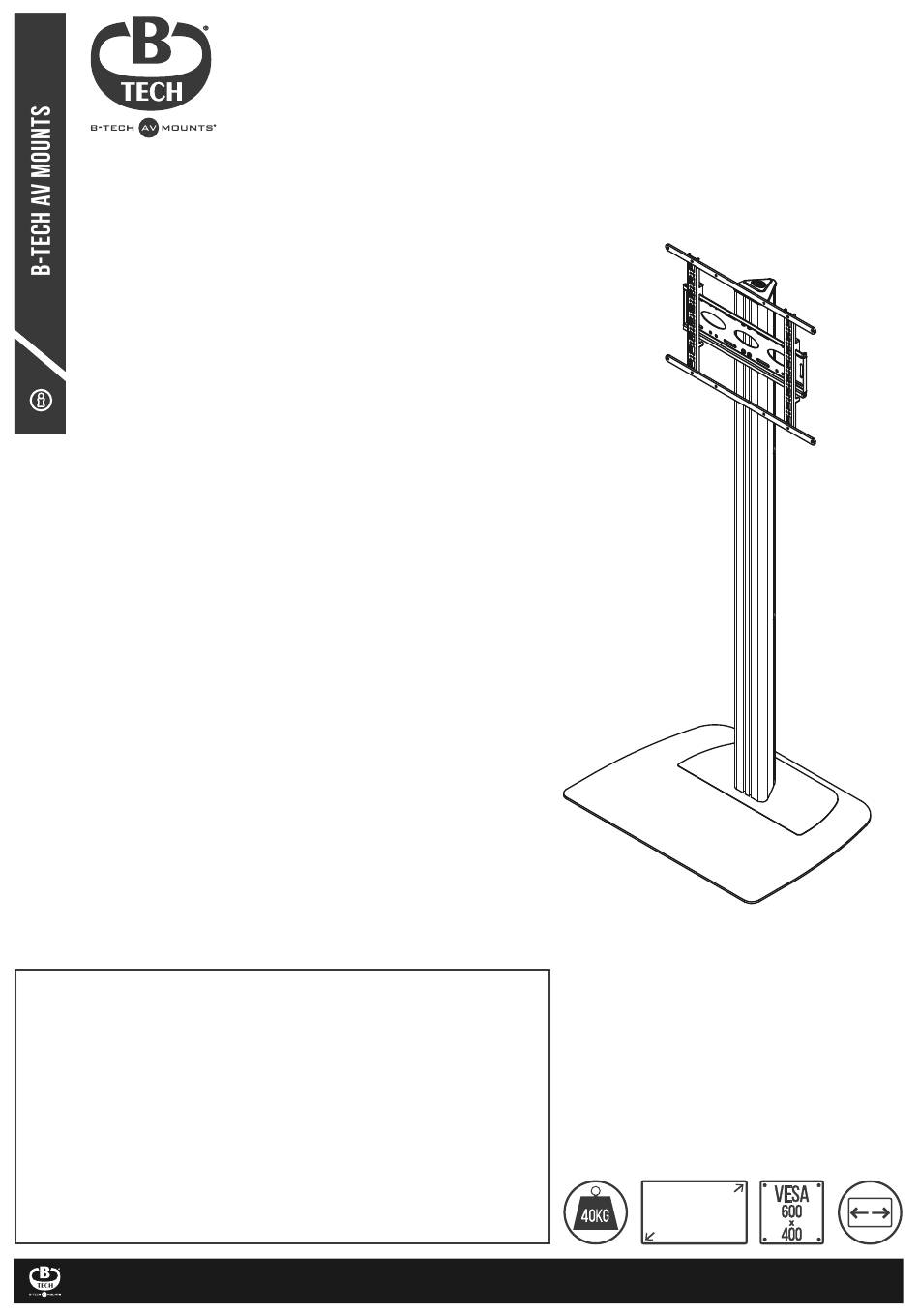

BT8582
LARGE FLAT SCREEN
SINGLE COLUMN FLOOR STAND
INSTALLATION GUIDE
• Recommended for screens up to: 55" (140cm)
• Max load: 40kg (88lbs)
• Suitable for screens with VESA
• Universal design suitable to mount screens in a landscape
or portrait orientation
• Integrated cable management
• Dimensions:
H.1826 x W.800 x D.600mm (H.71.90" x W.31.50" x D.23.62")
• Simple 'hook-on' installation with all mounting hardware included
SPECIFICATIONS
®
fixings up to 600 x 400mm
www.btechavmounts.com
55"
140
cm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for B-Tech BT8582
Summary of Contents for B-Tech BT8582
- Page 1 BT8582 LARGE FLAT SCREEN SINGLE COLUMN FLOOR STAND INSTALLATION GUIDE SPECIFICATIONS • Recommended for screens up to: 55" (140cm) • Max load: 40kg (88lbs) ® • Suitable for screens with VESA fixings up to 600 x 400mm • Universal design suitable to mount screens in a landscape or portrait orientation •...
-
Page 2: Installation Safety Instructions
Please check carefully to make sure there are no missing or defective parts - defective parts must never be used. B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire. - Page 4 BT8582 PARTS LIST PLEASE KEEP THIS FOR FUTURE REFERENCE...
-
Page 5: Installation Tools Required
ITEM PART NAME FLOOR BASE COVER PLATE VERTICAL COLUMN 1.8M COLUMN CAP REAR COVER PLASTIC SLOT INSERT M8 x 35mm HEX SCREW M8 x 12mm HEX SCREW M8 SLIDING INSERT 5AF HEX KEY MOUNTING PLATE INTERFACE ARMS 600mm ADAPTOR ARM M8 x 12mm CSK SCREW 4AF LONG HEX KEY INTERFACE KIT... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS ATTACH COLUMN TO BASE Fix item 3 to items 1 & 2 using item 7. M8 x 35mm Note: Use the double sided tape on the bottom HEX SCREW of the item 2 to fix the cover in place on item 1. DOUBLE SIDED TAPE... - Page 7 ATTACH MOUNTING PLATE TO COLUMNS i. Insert 4x item 9 into item 3 (2 in each channel). Note: Position item 9 in the column at the preferred height for the screen mount. M8 x 12mm HEX SCREW SLIDING INSERT ii. Fix item 11 to item 3 using items 8 & 9.
- Page 8 FIX INTERFACE ARMS TO SCREEN Fix items 12 to the back of the screen using the interface kit (items A-M). Note: Ensure the arms are facing the correct way round and the same holes A - I are used on both arms. Spacers (items J, K, L) J - L are to be used...
- Page 9 MOUNT SCREEN ONTO STAND Hook screen onto item 11. SCREEN Note: If necessary, once screen is mounted laterally adjust by hand. SECURE SCREEN TO MOUNTING PLATE HEIGHT Lock screen onto item 11 using the safety screws ADJUSTMENT at the bottom of item 12. SCREW Optional: Level screen using the...
- Page 10 ATTACH COVERS i. Route screen cables through the back of of item 3 and attach item 5. ii. Fit item 4 to the top of item 3. iii. Insert item 6 into the front slots on item 3. Note: Use pliers to cut item 6 to correct size...
- Page 11 122mm 345.4mm SIDE VIEW VIEW 800mm 110.5mm SCREEN INTERFACE WITHOUT ADAPTORS 8.5mm 5.5mm 37mm Max. 455mm 500mm THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
- Page 12 ©2021 B-Tech International Design and Manufacturing Ltd. All rights reserved. B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd. B-Tech AV Mounts and the B-Tech logo are registered trade marks. All other brands and product names are trademarks of their respective owners.
