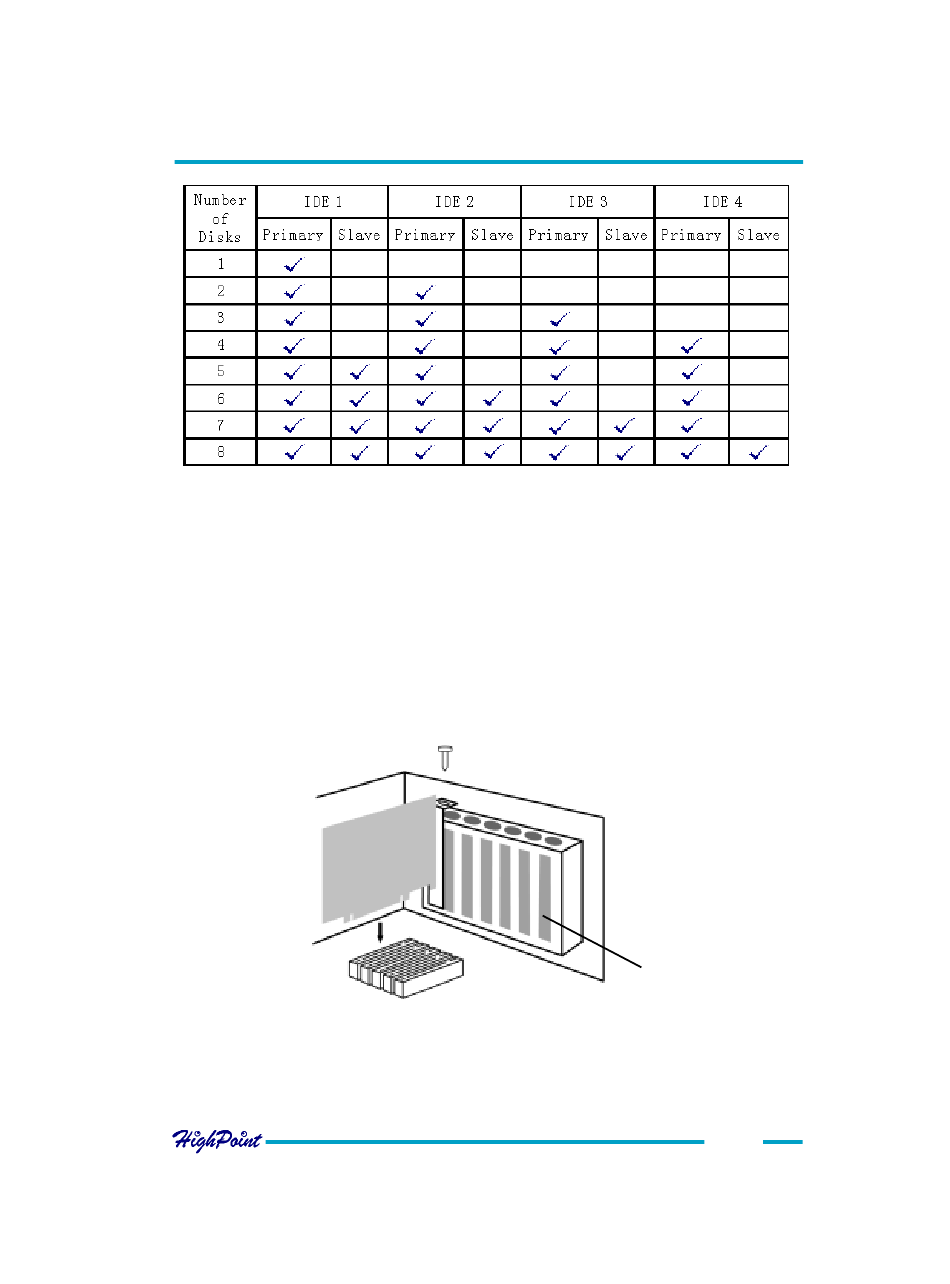

2.3 Adapter Installation

Follow these steps to install the RAID adapter and connect hard disks onto the adapter:

1. Shut down the computer and unplug the power supply;

2. Please discharge static electricity from your body by touching a conductor;

3. Remove the corresponding card bracket from the back of the computer chassis;

4. Insert the RocketRAID 404 adapter steadily into a PCI slot on motherboard and

then settle it with screw;

5. Set jumper of hard disks and settle them inside the computer chassis;

6. Connect hard disks to RAID adapter with IDE cables;

Adapter Installation

Card Bracket

2-2
