  Rocket 640L/644L


6Gb/s SATA Host Adapter


Quick Installation Guide
v1.1



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rocket 640L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HighPoint Rocket 640L

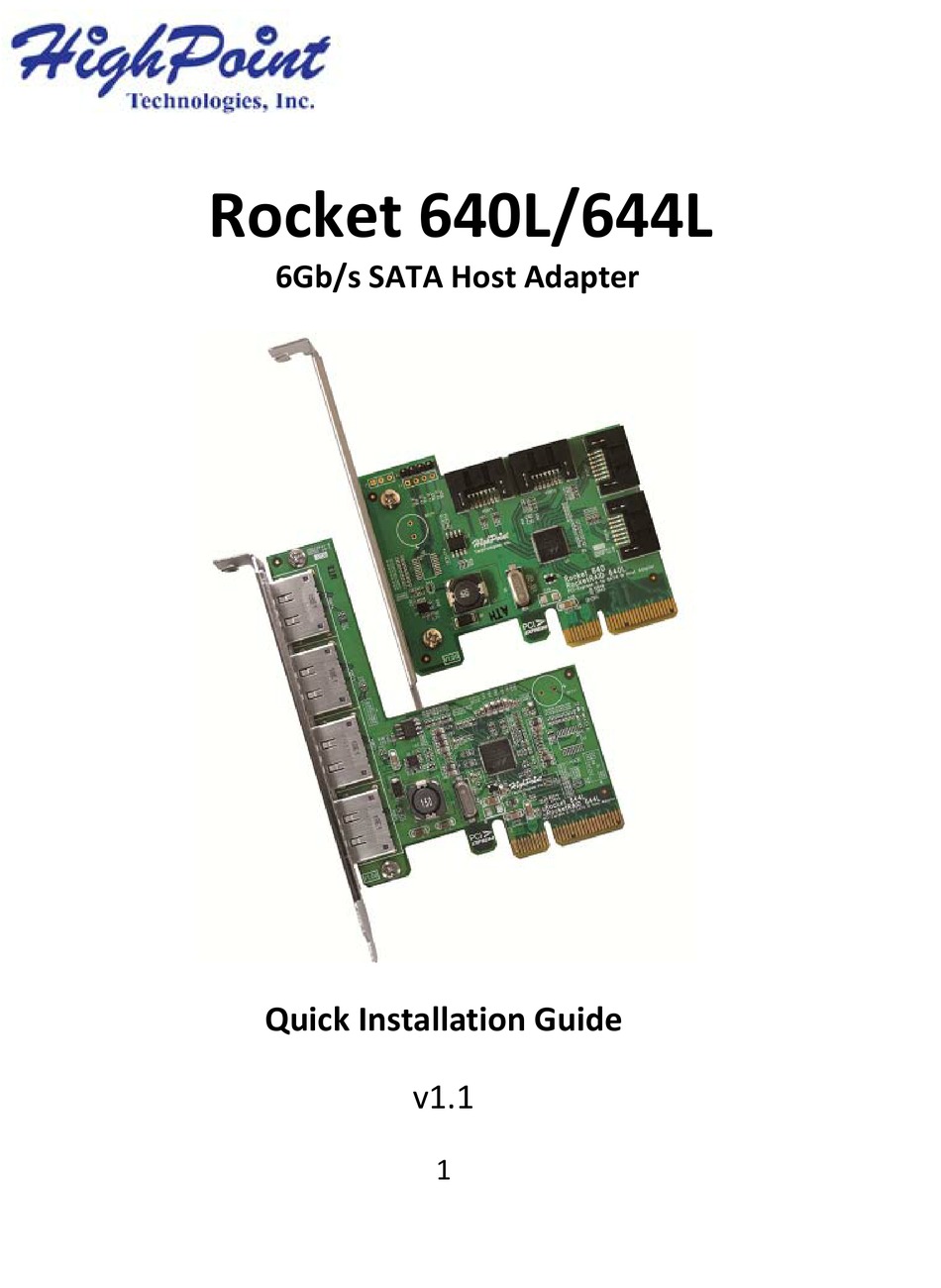

  • Page 1       Rocket 640L/644L     6Gb/s SATA Host Adapter       Quick Installation Guide    v1.1     1   ...
  • Page 2: Table Of Contents

    Contents    HighPoint Rocket640L/644L..................3    Hardware Installation.....................3 Using the Rocket64xL Adapter………................4  Rocket 64xL BIOS....................4  Driver and Utility Installation (Windows 7, Vista, 2008)..........5  Customer Support....................7  Contact information....................7    FCC Part 15 Class B Radio Frequency Interference statement........8 2   ...
  • Page 3: Highpoint Rocket640L/644L

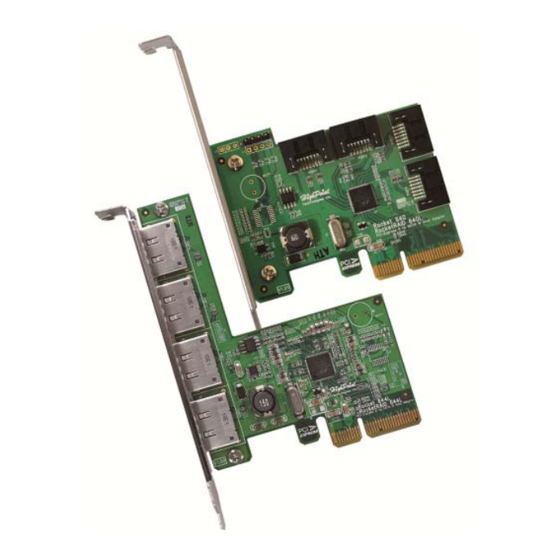

    HighPoint Rocket 640L/644L    – 4‐Port SATA 6Gb/s PCI‐E 2.0 HBA   The Rocket 640L/644L SATA 6Gb/s HBA is an ideal, cost‐effective  solution for adding high‐speed storage to desktop and workstation  PC’s. The Rocket 640L provide 4x SATA port and the Rocket 644L  provide 4x eSATA ports. The 4 independent SATA port supports up to 4  SATA 3Gb/s and 6Gb/s hard drives and SSD’s.    The Rocket 640L/644L is fully backwards compatible with PCI‐E 1.0 x4,  x8 and x16 slots, and supports all generations of SATA hard drives and  SSD’s.    Hardware Installation      Installing the Rocket 64xL Host Adapter      Note: Make sure the system is powered‐off before installing the Rocket  64xL host adapter.      1) Open the system chassis and locate an unused PCI‐E (2.0 or 1.0) ×4  (or x8/x16) slot.    2) Remove the PCI slot cover.    3) Gently insert the Rocket 64xL into the PCI‐E slot, and secure the  bracket to the system chassis.    4) After installing the adapter, attach the hard disks or disk enclosure  to the Rocket 64xL card using the SATA cables.    5) Close and secure the system chassis.        3 ...
  • Page 4: Rocket 64Xl Bios

      Using the Rocket 64xL:  Rocket 64xL BIOS  After installing the Rocket 64xL host adapter, and powering on the  system, the Rocket 64xL BIOS should post.      The BIOS will scan for devices and display information about each disk.    Note: Scan time may vary depending on the disk’s make/model and  disk related features such as Staggered Drive Spinup.    When prompted, press “Ctrl + M” to access the Rocket 64xL BIOS  Setup menu. The BIOS Setup menu will display information about the  Rocket 64xL and hosted devices:  4   ...
  • Page 5: Driver And Utility Installation (Windows 7, Vista, 2008)

      Driver and Utility Installation (Windows 7, Vista, 2008)    1.  After installing the Rocket 64xL host adapter, boot to the  Windows operating system. Windows should automatically  detect and install the “Standard AHCI” controller driver for the  Rocket 64xL adapter. Please verify the driver installation under  Windows “Device Manager”:    3.  The Rocket 64xL is coming with another “Console” device which  is using for communicated with the “MSU” utility software:  5   ...
  • Page 6   4.  Browse to the location of the “Console” device driver and click  “Next”. Driver location (Rocket 64xL Software CD):  /Driver/R64xL/Windows/driver  5.  When asked: “Would you like to install this driver software?”  select “Install”.    6.  Install the MSU utility. Double Click the “MSUSetup” program to  install the utility. Driver location (Rocket 64xL Software CD):  /Driver/R64xL/Windows/utility:      7.  After  the  utility  is  installed,  please  click  the  shortcut  on  the  Windows desktop to run the utility.        6   ...
  • Page 7: Customer Support

     Quick Installation Guide   Low profile bracket        Customer Support   If  you  encounter  any  problems  while  utilizing  the  Rocket  series  host  adapter,  or  have  any  questions  about  this  or  any  other  HighPoint  Technologies, Inc. product, feel free to contact our Customer Support  Department.      Web Support: http://www.highpoint‐tech.com/websupport/    HighPoint Technologies, Inc. websites:  http://www.highpoint‐tech.com   ...
  • Page 8: Fcc Part 15 Class B Radio Frequency Interference Statement

    FCC Part 15 Class B Radio Frequency Interference  statement  This equipment has been tested and found to comply with the limits for a Class  B digital device, pursuant to part 15 of the FCC Rules. These limits are designed  to provide reasonable protection against harmful interference in a residential  installation.  This  equipment  generates  uses  and  can  radiate  radio  frequency  energy and, if not installed and used in accordance with the instructions, may  cause  harmful  interference  to  radio  communications.  However,  there  is  no  guarantee  that  interference  will  not  occur  in  a  particular  installation.  If  this  equipment  does  cause  harmful  interference  to  radio  or  television  reception,  which ...
