Adapter Installation

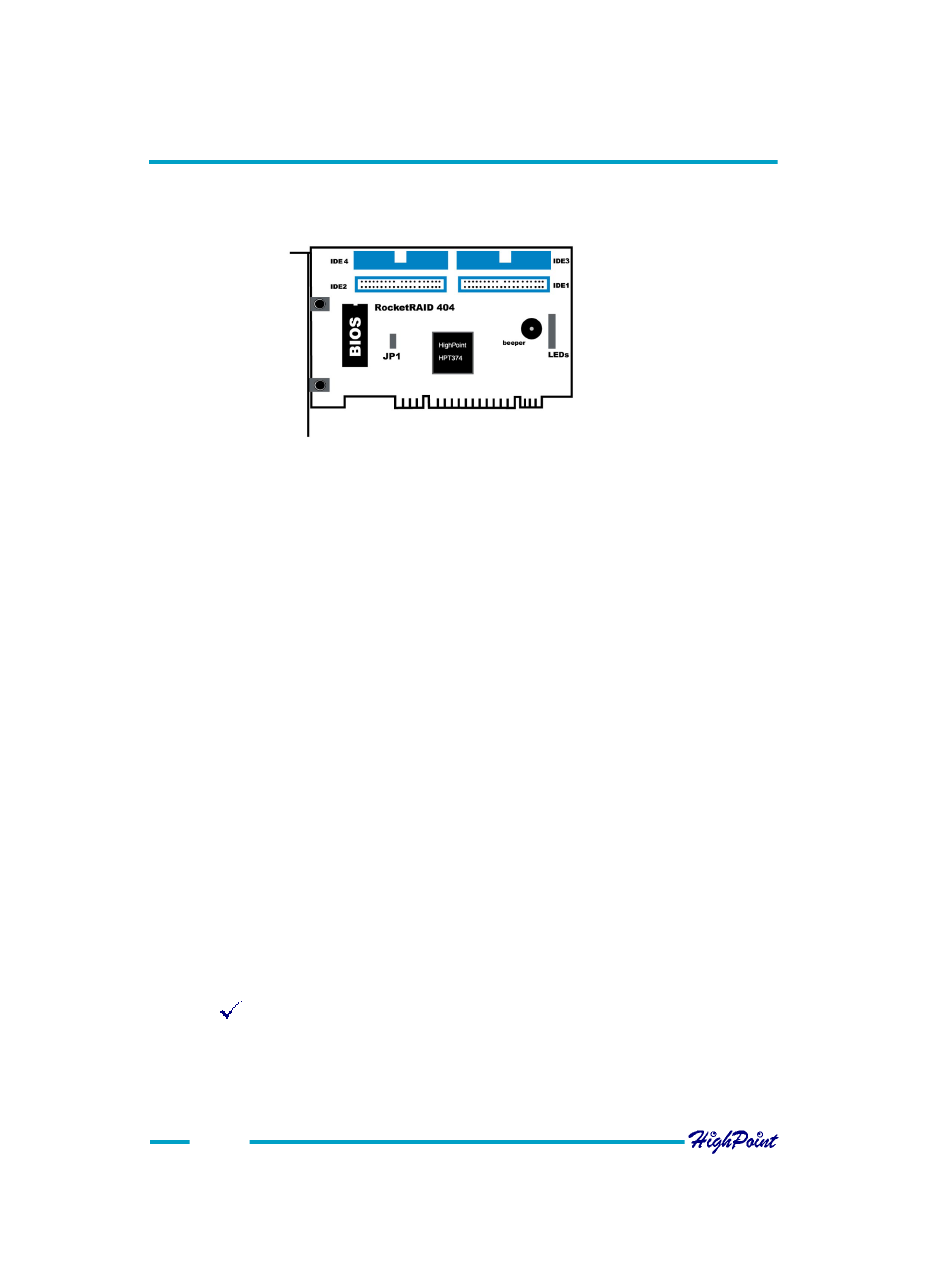

2.1 Adapter Layout
Setting of JP1:
1-2 short connected :
2-3 short connected:
The default setting of JP1 is 1-2 short connected. No need to change JP1 setting after
you got the adapter.
Note:
1. JP1's setting has nothing to do with updating BIOS. Either the JP1 is 1-2
short-connected or 2-3 short-connected, user can update the BIOS by
running the program: LOAD.EXE contained in the driver diskette.
LEDs connection:
The 8-pins LED connector are for LED connecting. From the top to the bottom there are
8 pins, 1-2 for IDE 1, 3-4 for IDE 2, 5-6 for IDE 3, 7-8 for IDE 4.
2.2 Hard Disk Connection
We suggest the following connection way depending on disk numbers (see the table in
page 2-2):
Note:
1. "
"means it is better to connect hard disk at this position.
2. When connecting hard disk, pay much attention to its Master -Slave jumper
setting: if two hard disks are connected onto one IDE cable, then one disk
must be set as master while the other as slave.
2-1
Adapter
Disable loading configuration from adapter's
BIOS, and use the default on-chip configuration
instead.
Enable loading configuration from adapter's BIOS.
