Summary of Contents for HighPoint RocketRAID 3720A

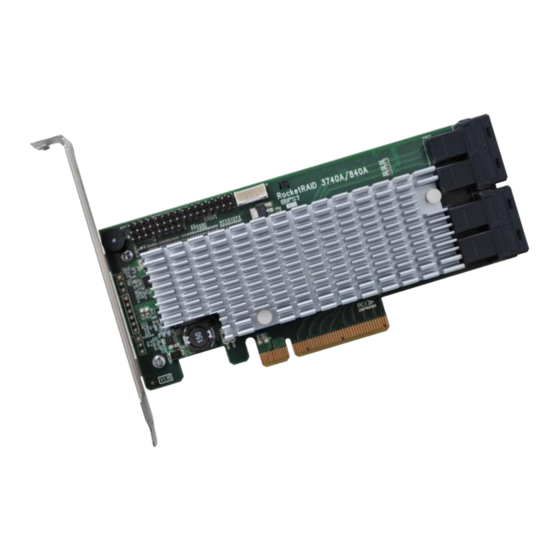

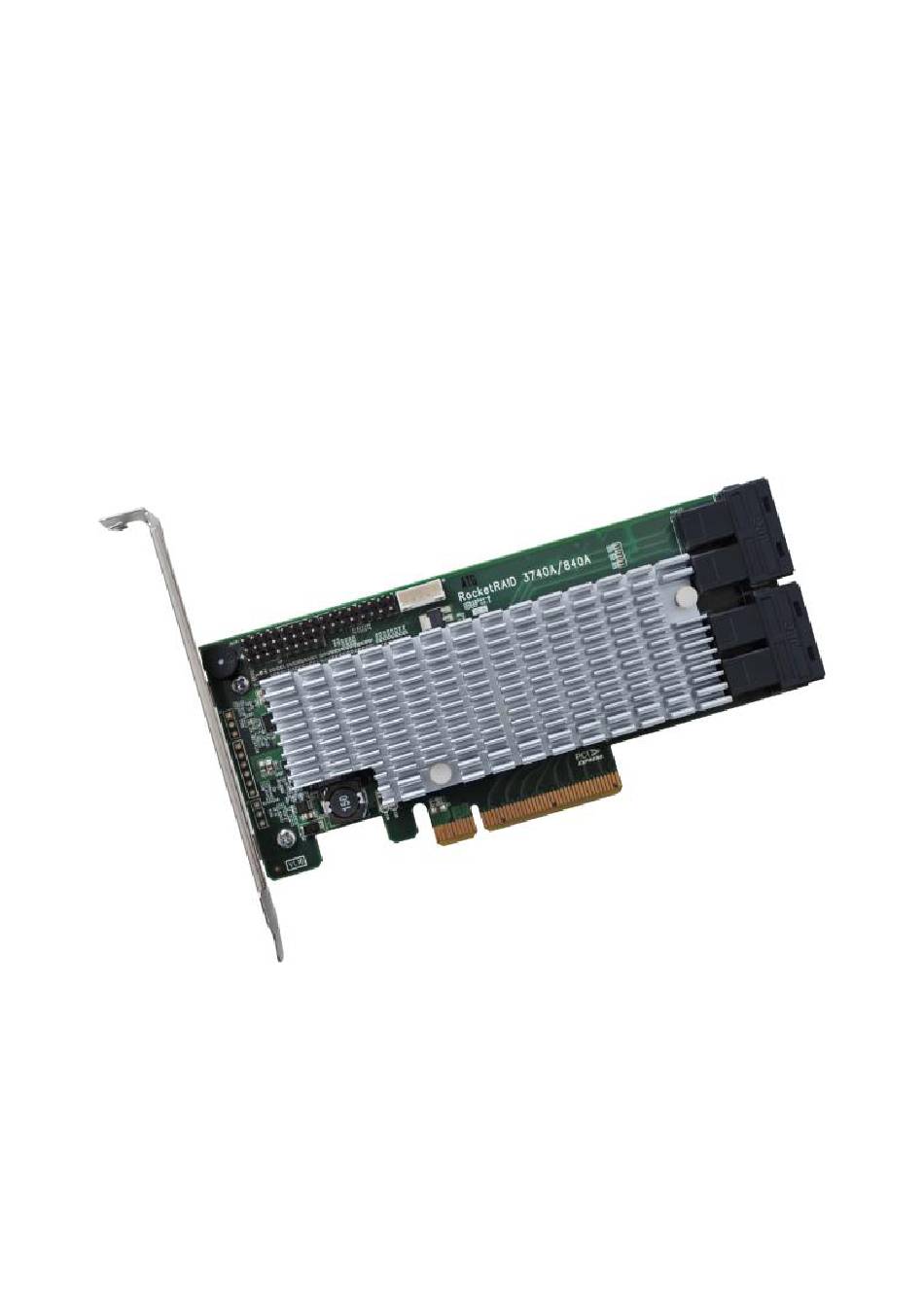

- Page 1 RocketRAID 3700 Series SAS 12Gb/s PCI-Express 3.0 x8 RAID Controller Quick Installation Guide v1.1...
- Page 2 Table of Contents HighPoint RocketRAID 3700 Series ........3 Kit Contents ..............3 Board Layout ..............4 Hardware Installation ............5 Using the RocketRAID 3700 Series ........5 Customer Support ............. 8...
- Page 3 Controllers. The PCIe Generation 3.0 host interface and dedicated 12Gbs SAS channels work in tandem to deliver uncompromised transfer performance for up to 16 SSD’s or hard disks. Backed by HighPoint’s 20 years of RAID technology expertise, and enterprise class RAID Storage reliability and management capabilities, RocketRAID 3700 series HBA’s are ideal for a wide range of cost-...
- Page 4 LED pins are provided for Active/Fail status for each of the device channels. For more information about LED functionality and connection requirements, please refer to below document: http://www.highpoint-tech.com/PDF/LED_connection.pdf Alarm Buzzer Audible alarm will sound if a disk failed status occurred.
- Page 5 BIOS should post during the system’s boot procedure. Use Ctrl + H key to log-in to the BIOS setting utility. The BIOS setting utility can be used for RAID management. Please refer the user guide for how to use the BIOS: http://www.highpoint-tech.com/PDF/RR3740A/RR3740A_user_guide.pdf...
- Page 6 Driver and WebGUI Installation (Windows) Download and prepare the Windows Driver and WebGUI from the product download page. RocketRAID 3700 Series: http://www.highpoint-tech.com/USA_new/series_rr3740a-Download.htm After installing the RAID controller, boot to the Windows operating system. Windows should automatically detect the card as new “RAID Controller”...
- Page 7 Please refer to the online help for storage management through WebGUI: http://www.highpoint-tech.com/help/ Driver and Software Installation (Linux, FreeBSD or Mac OS X) Please refer to the README file and Installation Guide under the software folder for the appropriate installation procedure.
- Page 8 Customer Support If you encounter any problems while utilizing the RocketRAID series HBA, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: http://www.highpoint-tech.com/websupport/ HighPoint Technologies, Inc. websites:...
