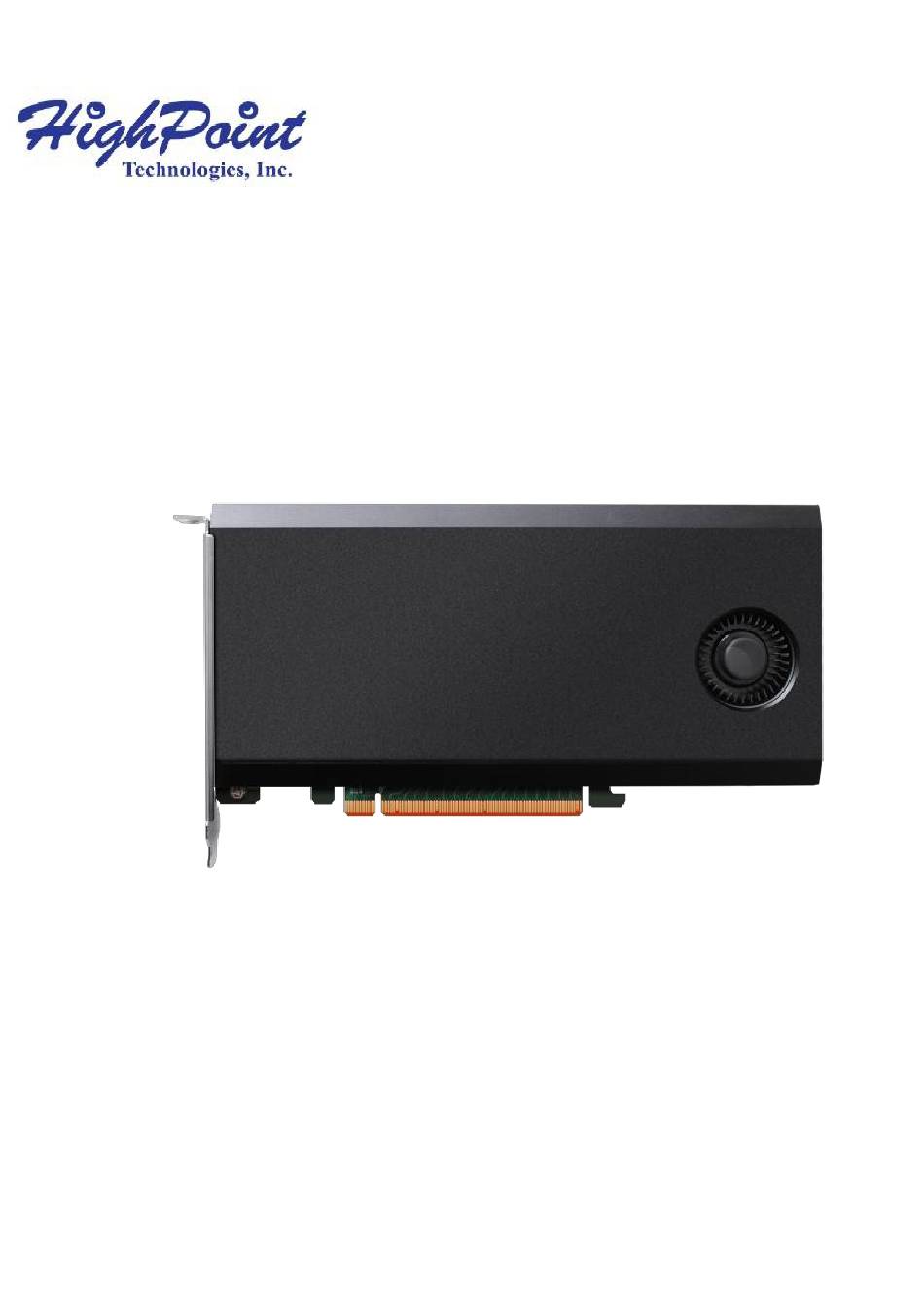

- Page 1 SSD7101A-1 4x M.2 Port to PCIe 3.0x16 NVMe RAID Controller Quick Installation Guide V1.03...
- Page 2 System Requirements PC Requirements • System with an empty x16 PCIe 3.0 slot (Please refer to the SSD7101A-1 compatibility list.) • Windows 10 or later • Linux Kernel 3.19 or later macOS 10.13 and later • SSD7101A-1 Kit Contents •...
- Page 3 SSD7101A-1 Hardware Front View Aluminum casing with integrated thermal pad Intake for cooling fan Low-Noise cooling fan PCIe 3.0 x16 Host Interface...
- Page 4 Hardware Installation: Step 1. On the rear of the SSD7101A-1, remove the six screws that secure the unit’s front panel to the PCB. After removing the screws, carefully remove the front panel from the SSD7101A-1. Step 2. These 4 screws are used to install the NVMe SSD’s.

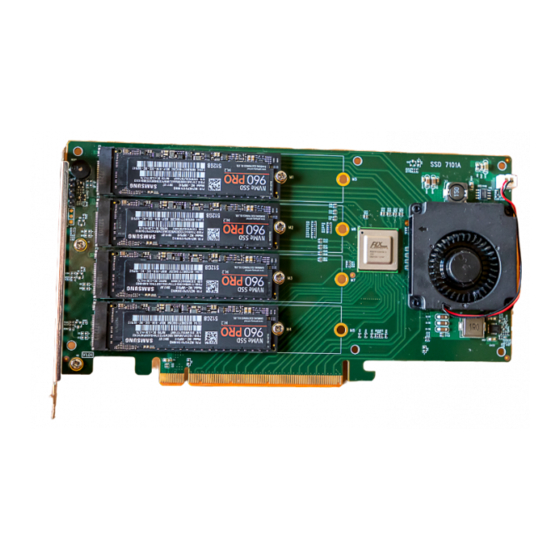

- Page 5 Step 3. The SSDs should be installed from top to bottom. Remove the top screw. Step 4. Gently insert the SSD into the slot. Step 5. Refasten the screw to secure the SSD. Repeat Steps 3 to 5 to install the remaining SSDs. Note: Make sure the SSD’s are carefully, but securely installed into each M.2 port.
- Page 6 Step 6. Replace the front panel after installing all SSDs. Step 7. On the rear of the SSD7101A-1, refasten the 6 screws that were removed in step 1. Note: Make sure the aluminum cover is properly aligned with the controller board (PCB), and that it makes full contact with the thermal pad, before refastening it to the SSD7101A-1.
- Page 7 Document Downloads: https://www.highpoint-tech.com/USA_new/series-ssd7101a-1- resource.htm Customer Support If you encounter any problems while utilizing the SSD7101A-1, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport/ HighPoint Technologies, Inc.
