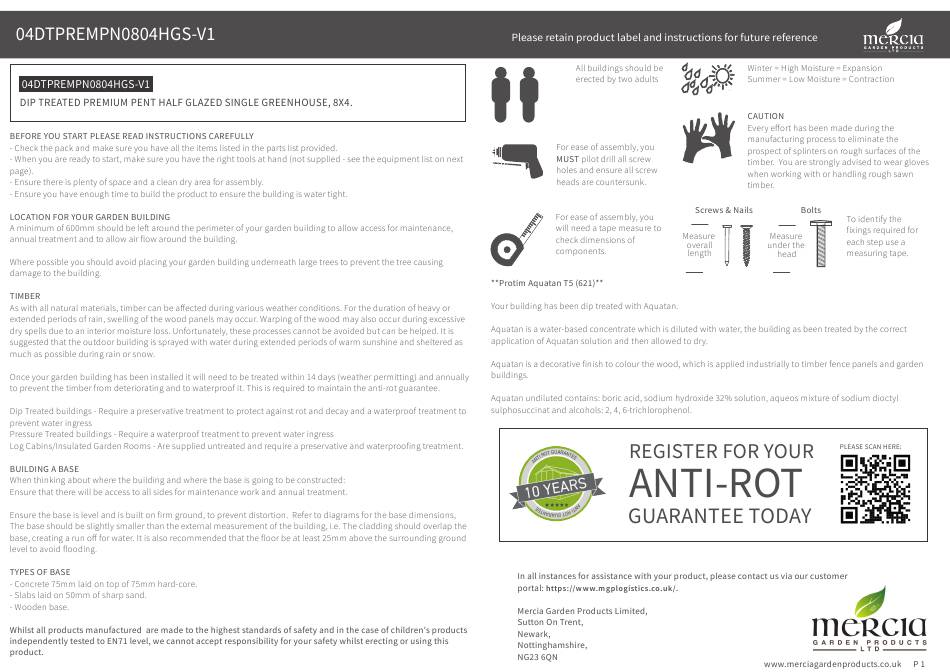

- Page 1 2mm Drill bit...
-
Page 2: Any Questions
PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal. - Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
- Page 4 Before assembly Floor Bearer - 27x44x1300mm QTY 2 please make sure you have a F2744-1300mm suitable base ready to erect your building Floor Bearer - 27x44x1180mm QTY 4 F2744-1180mm Cover Strip - 12x75x1256mm QTY 2 S1275-G-1256mm (31mm shoulder, 9 degree angled cut) MADE IN GREAT BRITAIN Overall Dimensions: Base Dimensions:...
- Page 5 Step 1 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 3 QTY 1 Nail Bag No. 4 QTY 1 70mm Screw x 61 30mm Screw x 37 No. 19 QTY 1 No. 20 QTY 2 50mm Screw x 16 30mm Black Screw x 42 Locate the Door (No.4) into the Door 40mm Screw x 10...
- Page 6 Step 4 Step 2 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 3 QTY 1 Parts needed - No. 22 QTY 1 No. 13 QTY 2 No. 23 QTY 1 No. 14 QTY 1 Locate the mortice lock (No.22) into the Locate the vertical and horizontal recess of the Door (No.4).
- Page 7 Step 5 Step 6 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 10 QTY 2 Parts needed - No. 2 QTY 2 No. 11 QTY 4 No. 16 QTY 4 Locate Support Framing Lay the Floor Bearers (No.10 & 11) down as shown in the (No.16) on to the top of each Side diagram on a rm and level base, ensure the base has Panel (No.2), as shown.
- Page 8 Step 7 Step 8 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 5 QTY 1 Parts needed - No. 1 QTY 1 (Or No.3 QTY1) No. 6 QTY 1 No. 2 QTY 1 No. 16 QTY 4 *The door and rear panel are both interchangable and can be positioned at Locate one Support framing...
- Page 9 Step 11 Step 10 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 6 QTY 1 Parts needed - No. 7 QTY 1 No. 9 QTY 1 No. 8 QTY 1 No. 15 QTY 1 No.
- Page 10 IMPORTANT: Pre-drill before xing screws. Step 14 IMPORTANT: Pre-drill before xing screws. Step 12 Parts needed - No. 5 QTY 1 Parts needed - No. 17 QTY 2 No. 6 QTY 1 No. 25 QTY 1 Place the two Ridge Bars (No.17) Locate Roof Panel 1 (No.5) and Roof Panel 2 (No.6), on top of the building so together ensuring the ends are ush, as...
- Page 11 IMPORTANT: Pre-drill before xing screws. Step 16 Step 15 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 18 QTY 1 No. 26 QTY 3 Secure the Roof Panels to the building using 10x70mm screws. Locate the Roof Truss (No.18) cover the 10x70mm screw gap where the two Roof panels join internally.
- Page 12 Ensure the large center cover trim (No.11) has not been tted (see step 18). Follow instructions 04DTPREMPN0804HGS-V1 to assemble the pent greenhouse unit up against the tall side of the Pent shed. The buildings should look as shown. Step 19...
-
Page 13: After Treatment
Step 20 Step 21 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 11 QTY 1 Pre drill holes from the shed Panel Top (No.8) straight into Use a tape measure to measure the the green house roof panel. height of the joining panels on the back of the shed / inside the Secure place... - Page 14 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
