Mercia Garden Products 04DTSTRDAX0806HGS-V1 Manual

Dip treated standard apex greenhouse, 8x6
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 04DTSTRDAX0806HGS-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 04DTSTRDAX0806HGS-V1

Summary of Contents for Mercia Garden Products 04DTSTRDAX0806HGS-V1

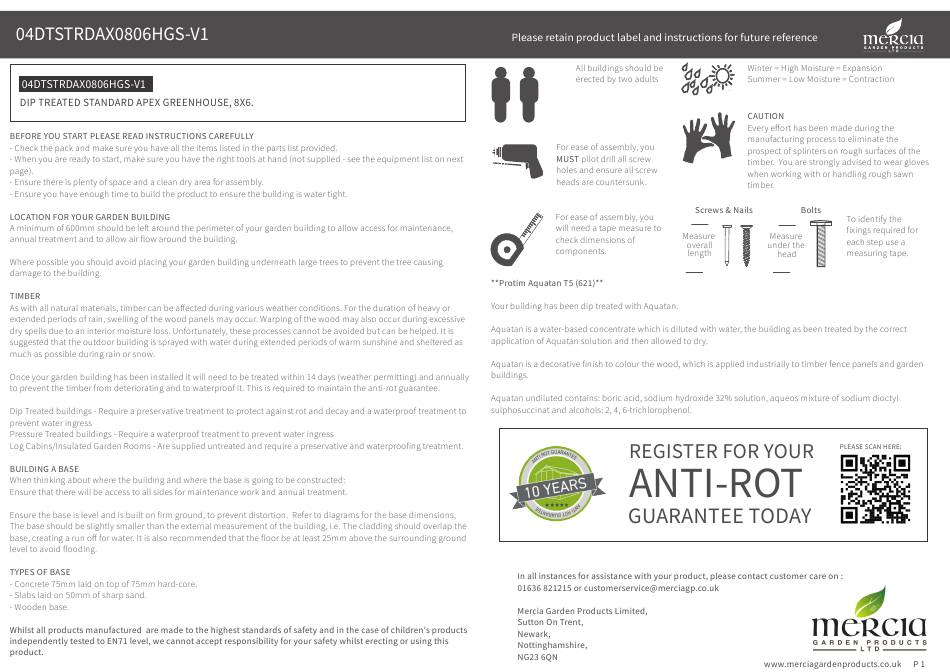

  • Page 1 2mm Drill bit...
  • Page 3 Overall Dimensions: Width = 2042mm Depth = 2460mm Height = 2059mm Base Dimensions: Width =1864mm Depth = 2386mm Before assembly please make sure you have a suitable base ready to erect your building Roof QTY 3 Door Opening Window AI-04S21GR2W1218X1037-V1 AI-BSCHGPD550X1720-V1 AI-FW560X460-V1 MADE IN GREAT BRITAIN...
  • Page 4 Window Strip - 12x27x926mm QTY 16 Nail Bag Strip - 12x21x560mm QTY 1 S1227-926mm S1221-560mm There may be extra screws present in the nail bag Window Strip - 12x27x1776mm QTY 1 Corner Trims - 12x56x1576mm QTY 4 30mm Screw x 189 16mm Black Screws x 8 S1227-1776mm S1256-1576mm...
  • Page 5 Step 1 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 11 QTY 2 Pre Assembly No. 12 QTY 4 Before assembling remove the transportation Lay the Base Frames (No.11 & 12) down on blocks from the bottom of each panel. a at and level base.
  • Page 6 Step 2 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 1 QTY 2 No. 37 QTY 2 No. 2 QTY 4 No. 38 QTY 4 No. 3 QTY 1 No. 39 QTY 1 No. 33 QTY 13 Lay the Door Sides (No.1), Small Window Sides (No.2) and Large Window Side (No.3) down on a at and level base.
  • Page 7 Step 3 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 27 QTY 16 No. 28 QTY 1 No. 29 QTY 4 No. 30 QTY 2 On the Door sides (No.1) locate Window strips (No.27) onto either side of the panel and the Window Strips (No.30) along the top of the panel, ensuring to trap the styrene.
  • Page 8 Step 4 Step 6 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 2 QTY 1 Parts needed - No. 2 QTY 1 No. 3 QTY 1 Locate the remaining Small Window Side Locate the Small Window Side (No.2) and (No.2) on top of the bearers at the corner, the Large Window Side (No.3) on top of the ensuring there is equal spacing between...
  • Page 9 Step 8 Step 10 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 16 QTY 1 Parts needed - No. 4 QTY 1 No. 5 QTY 1 Locate the Door Frame (No.14) onto the base framing between the Locate the Plain Gable Top (No.5) on top Door Sides (No.1).
  • Page 10 Step 12 Step 14 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 18 QTY 1 Parts needed - No. 6 QTY 1 No. 23 QTY 4 Locate the Short Door strip (No. No. 34 QTY 1 18) to the top of the door opening.
  • Page 11 Step 16 Step 17 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 9 QTY 1 Parts needed - No. 7 QTY 3 No. 21 QTY 2 No. 23 QTY 12 No. 40 QTY 1 No.
  • Page 12 Step 19 Step 21 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 6 QTY 1 Parts needed - No. 13 QTY 1 No. 7 QTY 3 No. 14 QTY 1 Place the assembled Roof panels (No.6&7) Attach the Roof Support bars (No.
  • Page 13 IMPORTANT: Pre-drill before xing screws. Step 23 Step 24 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 22 QTY 1 Parts needed - No. 8 QTY 1 No. 21 QTY 2 Fix the Casement stay (No. 22) to the No.
  • Page 14 Step 27 Step 25 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 19 QTY 1 Parts needed - No. 41 QTY 4 No. 20 QTY 1 No. 44 QTY 2 Locate the Roof trims (No.19 & 20) Locate the Corner Trims (No.41) to the top of the building and onto each corner of the building,...
  • Page 15 Greenhouse and apex shed assembly Step 1a IMPORTANT: Pre-drill before xing screws. Parts needed - No. 11 QTY 2 (04DTSTRDAX0806HGS-V1 + 01DTSHAX0406SDFW-V1) No. 12 QTY 4 Overall Dimensions: Base Dimensions: Internal Door: Width = 2042mm Width: 1860mm Lay the Base Frames (No.11 & 12) down on...
  • Page 16 IMPORTANT: Pre-drill before xing screws. Step 2a Parts needed - No. 1 QTY 2 No. 37 QTY 2 No. 2 QTY 4 No. 38 QTY 4 No. 33 QTY 10 Lay the Door Sides (No.1), Small Window Sides (No.2) and Large Window Side (No.3) down on a at and level base.
  • Page 17 Step 3a IMPORTANT: Pre-drill before xing screws. Parts needed - No. 27 QTY 12 No. 29 QTY 4 No. 30 QTY 2 On the Door sides (No.1) locate Window strips (No.27) onto either side of the panel and the Window Strips (No.30) along the top of the panel, ensuring to trap the styrene.
  • Page 18 IMPORTANT: Pre-drill before xing screws. Step 4a Step 6a IMPORTANT: Pre-drill before xing screws. Parts needed - No. 2 QTY 2 Parts needed - No. 1 QTY 2 Internal Door: Internal Door: Locate two Small Window Sides (No.2) Locate two Door Sides (No.1) on on top of the base frame and ush to top of the base frame and ush to the shed, ensure there is equal spacing...
  • Page 19 IMPORTANT: Pre-drill before xing screws. Step 8a Step 10a IMPORTANT: Pre-drill before xing screws. Parts needed - No. 17 QTY 2 Parts needed - No. 43 QTY 2 Locate the two Door strips (No. 17) to either Locate a Strip (No.43) over the joining of the Small Window side of the door opening, ensuring the Strips are ush with the internal framing of the...
  • Page 20 Step 14a Step 12a IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 31 QTY 1 Parts needed - No. 15 QTY 4 No. 32 QTY 2 No. 36 QTY 1 Align the Fascia Blocks (No. 15) to the top edge of the Door Gable Top and x in place Locate the strips (No 31, 32, &...
  • Page 21 Step 15a Step 16a IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 9 QTY 1 Parts needed - No. 7 QTY 3 No. 21 QTY 2 No. 23 QTY 12 No. 40 QTY 1 No.
  • Page 22 Step 18a IMPORTANT: Pre-drill before xing screws. Step 20a IMPORTANT: Pre-drill before xing screws. Parts needed - No. 6 QTY 1 Parts needed - FROM SHED CONTENTS No. 11 QTY 2 No. 7 QTY 3 Internal Door: Place the greenhouse roof frames Place the assembled Roof panels (No.6&7) on top of the Door Gable, and the Roof (No.11) against each window panel,...
  • Page 23 IMPORTANT: Pre-drill before xing screws. Step 21a Step 23a IMPORTANT: Pre-drill before xing screws. Parts needed - No. 42 QTY 2 Once the roof is secure, the building can Fix strip (No.42) to the roofs be secured to the base framing with 6x50mm screws per side.
  • Page 24 Step 26a IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Step 25a Parts needed - No. 41 QTY 2 Parts needed - No. 8 QTY 1 No. 44 QTY 2 No. 21 QTY 2 No. 25 QTY 1 Locate the Corner Trims (No.41) No.
  • Page 25 Step 28a IMPORTANT: Pre-drill before xing screws. Parts needed - No. 19 QTY 1 No. 20 QTY 1 Locate the Roof trims (No.19 & 20) to the top of the building and secure with 6x30mm screws as shown. 6x30mm Screws AFTER TREATMENT: score around protective cover on glazing and...
