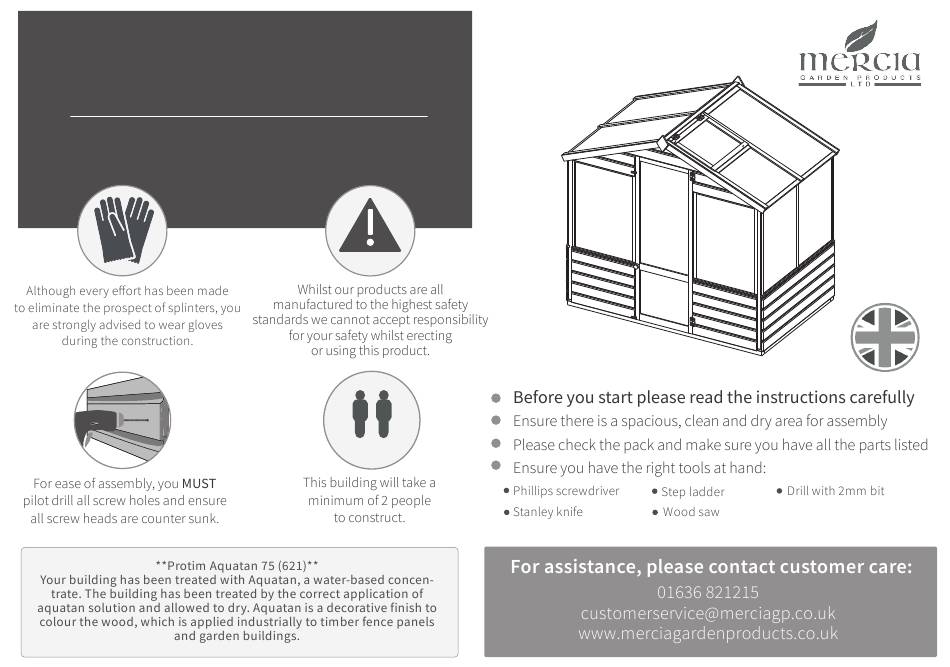

- Page 1 04GREEN0406SD-V5 04GREEN0406SD-V5 ASSEMBLY INSTRUCTIONS 4 X 6 GREENHOUSE...
- Page 2 04GREEN0406SD-V5 Please retain product label and instructions for future reference Overall Dimensions: Width = 1215mm Depth = 1887mm Height = 2066mm Base Dimensions: Width =1191mm Depth = 1862mm Before assembly please make sure you have a suitable base ready to erect your...
- Page 3 Please retain product label and instructions for future reference Nail Bag 30mm Screw x 150 16mm Screws x 20 40mm Screw x 8 20mm Screw x 6 50mm Screw x 60 70mm Screw x 8 30mm Black Screw x 18 Window Strip 926mm QTY 14 S1227-926mm Window Cill 610mm QTY 2...
- Page 4 Please retain product label and instructions for future reference Pre Assembly Step 3 Before assembling remove the transportation Attach the window strips using 3x30mm screws as per the diagram, starting with blocks from the bottom of each panel. Step 1 the top strip.
- Page 5 Please retain product label and instructions for future reference Step 6 Step 4 Fix the Door Sides (No. 1) between the Fix the corners of the Sml Window Side window panels using 6x50mm screws. (No. 2) and the Lrg Window Side (No. 3) with 3x50mm screws as shown in the 6x50mm Screws.
- Page 6 Please retain product label and instructions for future reference Step 10 Step 8 Fix the Door strip (No. 17) to the top of Fix the Gable tops (No. 4) & (No. 5) to the the door opening with 3x30mm screws. panels using 4x50mm screws per top as shown in the diagram.
- Page 7 Please retain product label and instructions for future reference Step 12 Step 13 Fix the strips (No 28, 29, 33) onto the Attach the strip (No.37) onto the window window frame using 3x30mm screws panel with 4x30mm screws. Drop the 30mm per strip.
- Page 8 Please retain product label and instructions for future reference Step 14 Step 15 Repeat step 12 for part 7. Place the Roof panels (No. 6) & (No. 7) on top of each gable, making sure the roofs are ush to each gable and meet at the 12x30mm Screws.
- Page 9 Please retain product label and instructions for future reference Step 17 Step 19 Attach the Roof Support bar (No. 13) to Fix the corner trims (No.38) in position the roof panels using 5x40mm screws. using 4x30mm screws Screw diagonally through the support 16x30mm Screws into the roof panel as shown in the diagram.
- Page 10 Please retain product label and instructions for future reference Step 20 Step 22 Fit the fascias (No. 10) and the nials (No. 21)to the building using 14x30mm screws as shown in the diagram. It is ESSENTIAL that you apply wood treat- ment immediately after the building has 14x30mm Screws been assembled.
- Page 11 P 11...
- Page 12 P 12...
