General Instructions
04GREENLEAN0804-V2

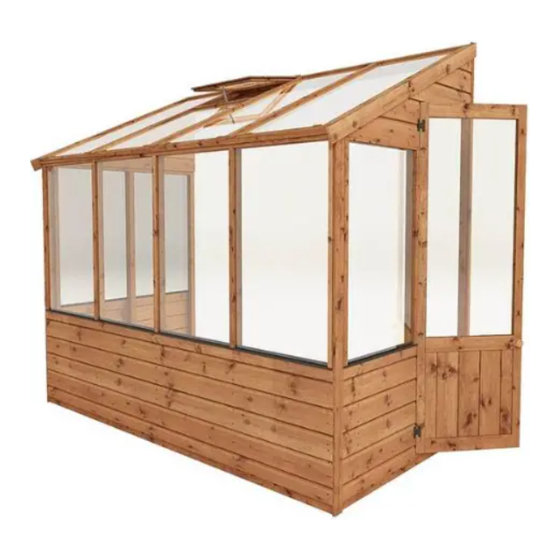

8x4 Greenhouse

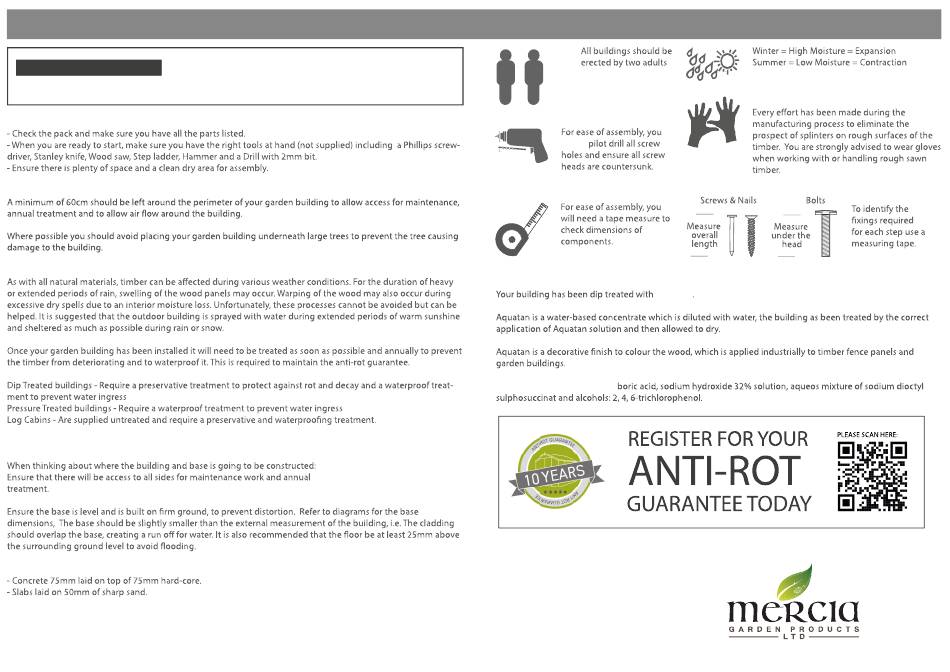

BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
LOCATION FOR YOUR GARDEN BUILDING
TIMBER
BUILDING A BASE
TYPES OF BASE
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
Please retain product label and instructions for future reference
x2
MUST
2mm Drill bit
**Protim Aquatan T5 (621)**
Aquatan
Aquatan undiluted contains:
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
P 1
