Summary of Contents for Beckhoff C7015

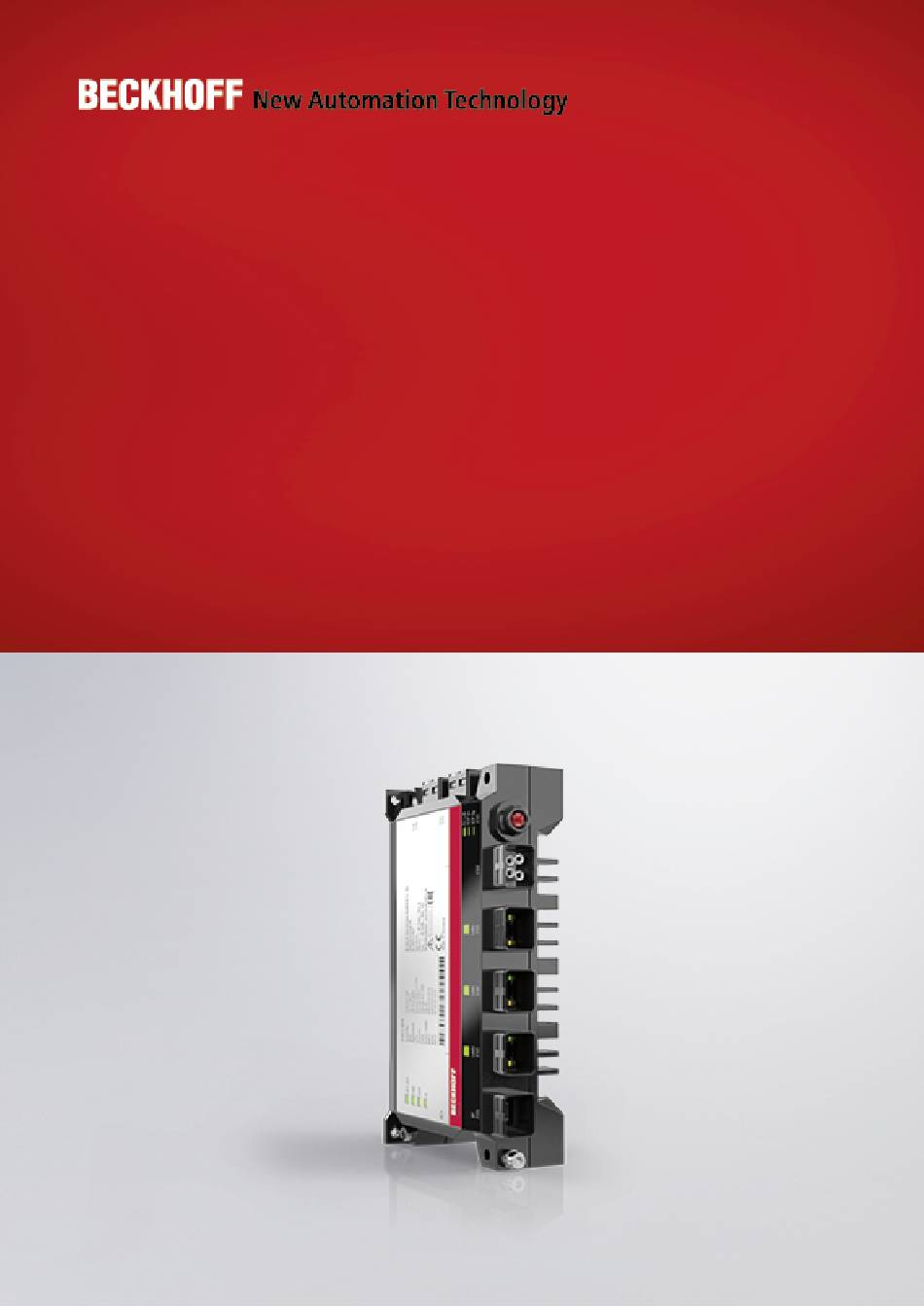

- Page 1 Manual | EN C7015 Industrial PC 2024-06-19 | Version: 1.8...
-
Page 3: Table Of Contents
Grounding of the industrial PC .................. 26 4.3.2 Connecting cables and power supply ................ 27 Switching the industrial PC on and off .................... 28 5 Beckhoff Device Manager ........................ 29 6 Decommissioning ........................... 32 Disconnecting the power supply and cables ................... 32 Disassembly and disposal....................... 33 7 Maintenance ............................ 35... - Page 4 Table of contents 10.2 Approvals ............................ 41 Version: 1.8 C7015...
-
Page 5: Notes On The Documentation
EP1590927, EP1789857, EP1456722, EP2137893, DE102015105702 and similar applications and registrations in several other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The distribution and reproduction of this document as well as the use and communication of its contents without express authorization are prohibited. -
Page 6: For Your Safety
Exclusion of liability Beckhoff shall not be liable in the event of non-compliance with this documentation and thus the use of the devices outside the documented operating conditions. -
Page 7: Fundamental Safety Instructions
• the operating instructions are in good condition and complete, and always available for reference at the location where the products are used. C7015 Version: 1.8... -
Page 8: Notes On Information Security
For your safety Notes on information security The products of Beckhoff Automation GmbH & Co. KG (Beckhoff), insofar as they can be accessed online, are equipped with security functions that support the secure operation of plants, systems, machines and networks. Despite the security functions, the creation, implementation and constant updating of a holistic security concept for the operation are necessary to protect the respective plant, system, machine and networks against cyber threats. -
Page 9: Product Overview
Product overview Product overview The C7015 Industrial PC is an ultra-compact Industrial PC in IP65 that can be mounted either in the control cabinet to save space or directly on the machine. Thanks to the existing processors, the industrial PC has sufficient performance reserves for the following applications, among others: •... -
Page 10: Structure
Product overview Structure Fig. 1: Structure Table 1: Legend - C7015 structure Component Description Flexible mounting concept For mounting inside or outside the control cabinet via the rear or side panel EtherCAT P LEDs Display for Link Activity, system voltage, peripheral voltage Name plate... -
Page 11: Interface Description
Ethernet cable (according to IP65) for data and for two electrically isolated, individually switchable 24 V/ 3 A supplies. This allows you to cascade several EtherCAT devices. For connection and power supply of I/O as well as field devices you only need one cable. Beckhoff recommends the use of the following cable: • ZK7000-0101-1003 Alternatively, you can use other cables whose length exceeds 20 cm. -
Page 12: Power Supply
Voltage in normal range red on Voltage outside the normal range You can use the Beckhoff Device Manager to switch the system voltage U and the peripheral voltage U For more information, refer to Chapter 5 Beckhoff Device Manager [} 29]. -
Page 13: Ethernet Rj45
Product overview There is no voltage connector in the scope of delivery of the industrial PC. To connect the PC, Beckhoff recommends ordering one of the following options from your Beckhoff Sales: • C9900-K936 • C9900-K937 3.2.3 Ethernet RJ45 The industrial PC has three Gigabit LAN ports according to IP65/67 (X103-X105). The 100Base-T and 1000Base-T Ethernet standards enable the connection of corresponding network components and data rates of 100/1000 Mbit/s. -
Page 14: Mini Displayport
The industrial PC has a Mini DisplayPort according to IP65/67 (X106) that enables connection of devices with Mini DisplayPort. It facilitates transfer of image signals. In addition, DVI signals can be transferred via an adapter. Please get in touch with your Beckhoff sales contact. -
Page 15: Fig. 8 Usb Interfaces Pin Numbering
Product overview X108 X107 Fig. 8: USB interfaces pin numbering Table 7: USB interface pin assignment Connection Vbus StdA_SSRX - StdA_SSRX + GND_DRAIN StdA_SSTX - StdA_SSTX + C7015 Version: 1.8... -
Page 16: Status Leds
Table 8: Meaning of the UPS-OCT LED Color Flashing interval Meaning None Steadily lit No UPS-OCT connected Blue Flashing Bootloader active Yellow Steadily lit Moderate signal quality Green Steadily lit Good signal quality Steadily lit Poor signal quality Version: 1.8 C7015... -
Page 17: Pwr Led
Flashing Checksum error during the I2C transmission in the bootloader Cyan Flashing (2 s) contact Beckhoff Service 3.3.3 HDD LED The HDD LED indicates the activity of the storage medium. The colors and flashing intervals have the following meanings: Table 10: Meaning of the HDD LED... -
Page 18: Name Plate
The name plate provides information on the equipment fitted to the industrial PC. The name plate shown here serves only as an example. Fig. 10: Name plate Table 12: Legend C7015 name plate Description Manufacturer, including address Model: the last four digits indicate the product variant. -
Page 19: Commissioning
4. Check your delivery for completeness by comparing it with your order. 5. Check the contents for visible shipping damage. 6. In case of discrepancies between the package contents and the order, or in case of transport damage, please inform Beckhoff Service (see Chapter 10.1 Service and support). C7015 Version: 1.8... -
Page 20: Assembly
The mounting concept allows mounting via the rear panel as well as via the right side panel of the industrial PC. The C7015 can either be mounted inside a control cabinet or integrated outside a control cabinet on the machine or plant. -
Page 21: Dimensions
32,5 Fig. 12: Dimensions If you have mounted an EtherCAT P Box module directly on the industrial PC, this changes the dimensions. Figure 13 shows the dimensions of the C7015 with mounted EtherCAT P Box module. 79,5 Fig. 13: Dimensions with ECP Box module C7015 Version: 1.8... -
Page 22: Mounting The Industrial Pc
If you have mounted an EtherCAT P Box module directly on the industrial PC (see chapter 4.2.3 Mounting EtherCAT P Box module [} 24]), you can mount the industrial PC with the module exclusively via the rear panel using M4 screws (see Fig. 15). Version: 1.8 C7015... -
Page 23: Fig. 15 Mounting With Ethercat P Box Module
Commissioning Fig. 15: Mounting with EtherCAT P Box module C7015 Version: 1.8... -
Page 24: Mounting Ethercat P Box Module
The integrated EtherCAT P connection of the industrial PC enables you to connect actuators/sensors directly via IP67-protected EtherCAT P Box modules. These act as EtherCAT P slaves, while the C7015 is used as master. For more information on the Box modules, refer to the EPP1xxx documentation. -
Page 25: Connecting The Industrial Pc
• Standard EN 60204-1:2006, section 6.4.1:b stipulates that one side of the circuit, or a point of the energy source for this circuit must be connected to the protective conductor system. 230 V 24 V Grounding busbar Fig. 17: Wiring example C7015 Version: 1.8... -
Page 26: Grounding Of The Industrial Pc
PC is installed. Use wires with a cross-section of at least 4 mm or a flat conductor for the ground connection, as the circumference of the conductor should be as large as possible. Fig. 18: Grounding bolt for functional earthing Version: 1.8 C7015... -
Page 27: Connecting Cables And Power Supply
Make sure that you first ground the PC (see chapter 4.3.1 Grounding of the industrial PC [} 26]) and then plug in all data transmission cables. Observe the cable recommendation from Beckhoff when connecting the EtherCAT P interface: • ZK7000-0101-1003 Alternatively, you can use other cables whose length exceeds 20 cm for this interface. -
Page 28: Switching The Industrial Pc On And Off
When you switch on the PC for the first time, the optionally pre-installed operating system will be started. For any additional hardware you have connected, you have to install the drivers yourself afterwards. In addition, the Beckhoff Device Manager starts automatically. The Device Manager is a software from Beckhoff that supports you in configuring the PC. -
Page 29: Beckhoff Device Manager
• User name: Administrator • Password: 1 You also have the option of using the Beckhoff Device Manager to remotely configure the industrial PC via a web browser. More detailed information is available in the Beckhoff Device Manager manual. First start Beckhoff Device Manager When your industrial PC is booted for the first time, the Beckhoff Device Manager also starts automatically for the first time. -
Page 30: Fig. 20 Beckhoff Device Manager - Start Page
Secure passwords Strong passwords are an important prerequisite for a secure system. Beckhoff supplies the device images with standard user names and standard passwords for the operating system. It is imperative that you change these. Controllers are shipped without a password in the UEFI/BIOS setup. Beckhoff recommends assigning a password here as well. -
Page 31: Fig. 21 Beckhoff Device Manager - Onboard Ethercat P
3. Select either Enabled or Disabled for the state and default values of the voltages (3). 4. Confirm your selection by clicking on the checkmark on the right (4). ð You have switched the voltages. Fig. 21: Beckhoff Device Manager - Onboard EtherCAT P Further interfaces for switching U and U , for example directly from the TwinCAT application, can be found in the manual for the Beckhoff Device Manager. -
Page 32: Decommissioning
4. Make a note of the wiring of all data transmission cables if you want to restore the cabling with another device. 5. Disconnect the data transmission cables from the industrial PC. 6. Finally, disconnect the ground connection. ð You have disconnected the power supply and the cables. Version: 1.8 C7015... -
Page 33: Disassembly And Disposal
Fig. 23: Disassembly of industrial PC with EtherCAT P Box module To remove the EtherCAT P Box module from the industrial PC, follow the steps below (see Fig. 24): C7015 Version: 1.8... -
Page 34: Fig. 24 Disassembly Ethercat P Box Module
• Send plastic parts (polycarbonate, polyamide (PA6.6)) for plastics recycling. • Take metal parts to the metal recycling collection point. • Electronic parts such as circuit boards must be disposed of in accordance with national electronics scrap regulations. Version: 1.8 C7015... -
Page 35: Maintenance
• Only use a vacuum cleaner to clean the PC. The industrial PC does not have to be switched off for this. • Never use compressed air to clean the PC. • Maintain an ambient temperature range of 0 °C to 50 °C. C7015 Version: 1.8... -
Page 36: Table 13 Device Component Replacement Recommendations
Beckhoff therefore recommends replacing some of the components of the devices after the time after which predictions of the remaining service life of such components can no longer be reliably calculated. - Page 37 • Only remove new electronic components from the ESD packaging (tinted plastic bag) after putting on the wrist grounding strap. • Do not walk around with electronic components in your hand if they are not in ESD packaging. C7015 Version: 1.8...
-
Page 38: Troubleshooting
Measures No function of the industrial PC Missing power supply of the Check the power supply cable industrial PC Call Beckhoff Service Other cause The industrial PC does not boot BIOS setup settings are incorrect Check BIOS setup settings (load... -
Page 39: Technical Data
Technical data Technical data Table 14: Technical data Product designation C7015 Dimensions (W x H x D) 85 x 167 x 43 mm, without mounting plate Weight approx. 1000 g Supply voltage 22-30 V (24 V power supply unit) NEC class 2 Power consumption... -
Page 40: 10 Appendix
33415 Verl Germany Phone: + 49 5246/963-0 email: info@beckhoff.de The addresses of the worldwide Beckhoff branches and agencies can be found on our website at http:// www.beckhoff.com/. You will also find further documentation for Beckhoff components there. Version: 1.8 C7015... - Page 41 FCC approvals for Canada FCC: Canadian Notice This device does not exceed the class A limits for radiation, as specified by the Radio Interference Regulations of the Canadian Department of Communications. C7015 Version: 1.8...
- Page 42 Fig. 17 Wiring example ..........................Fig. 18 Grounding bolt for functional earthing ..................Fig. 19 Beckhoff Device Manager - Change passwords ................Fig. 20 Beckhoff Device Manager – Start page ..................Fig. 21 Beckhoff Device Manager - Onboard EtherCAT P...............
- Page 43 List of tables List of tables Table 1 Legend - C7015 structure ......................Table 2 EtherCAT P interface pin assignment ..................Table 3 LEDs EtherCAT P interface ......................Table 4 Voltage socket pin assignment ....................Table 5 Ethernet interface pin assignment....................Table 6 Mini DisplayPort pin assignment ....................
- Page 45 More Information: www.beckhoff.com/C7015/ Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
