WYLER wylerCONNECT Quick Reference

Quick reference
WYLER AG - Inclination measuring systems
Im Hoelderli 13, 8405 Winterthur, Switzerland
+41 52 233 66 66 | wyler@wylerag.com | www.wylerag.com
Thank you for choosing WYLER!
Read this quick reference before start working with the wylerCONNECT.
Please follow the safety instructions at all time.
Brand and types
Brand
wylerCONNECT
Safety instructions
The wylerCONNECT complies with the applicable directives and standards.
See: Quick reference - The nameplate on the back of the device
DOC Declaration of Conformity at www.wylerag.com
Intended use
• The wylerCONNECT is designed exclusively to connect measuring devices with PCs by cable or wireless.
Operation system: Windows 10/11
•
Attention: This device was designed solely for this and no other purpose!
•
DO NOT
• Do not use as a hammer!
• Do not throw the device!
•
•
Technical data, mass, weight, protection, operation and storage
Power supply: 5V, USB-C
Dimension L x H x D: 71 x 65 x 41 mm
Protection: IP64
Storage: In storage case: -20 to +60 °C

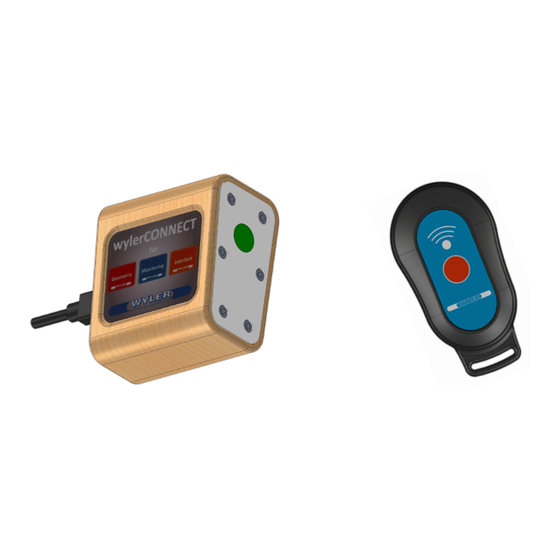

Scope of delivery 029-0001-002 (accessories see www.wylerag.com/en/products)
1. Case for storage, transport and shipping
2. wylerCONNECT
3. USB cable
4. wylerTRIGGER
5. Quick reference
Decommissioning, disposal
WYLER AG - Inclination measuring systems
wylerCONNECT
Types
Do not use this device near sources of strong electromagnetic energy radiation
(e.g. unshielded radio frequency source), as they can interfere with the operation.
Do not immerse the device in water or other liquids! The IP64 standard does not
cover underwater situation.
• When decommissioning the wylerCONNECT, please follow the local
regulations for disposal of electronic waste.
• The batteries must be removed from the device before separately disposed.
Outside Switzerland:
Please contact our representatives, info at
www.wylerag.com/en/contact/representatives
Art. 029-0001-003 wylerCONNECT
Art. 029-0001-00x wylerCONNECT sets
Power consumption:
Weight:
Weight scope of delivery:
Operation temperature:
Page 1 / 2 Im Hoelderli 13, 8405 Winterthur, Switzerland
Release 2.0
Max. 500mA@5V
140 g
550 g
0 to 40 °C
