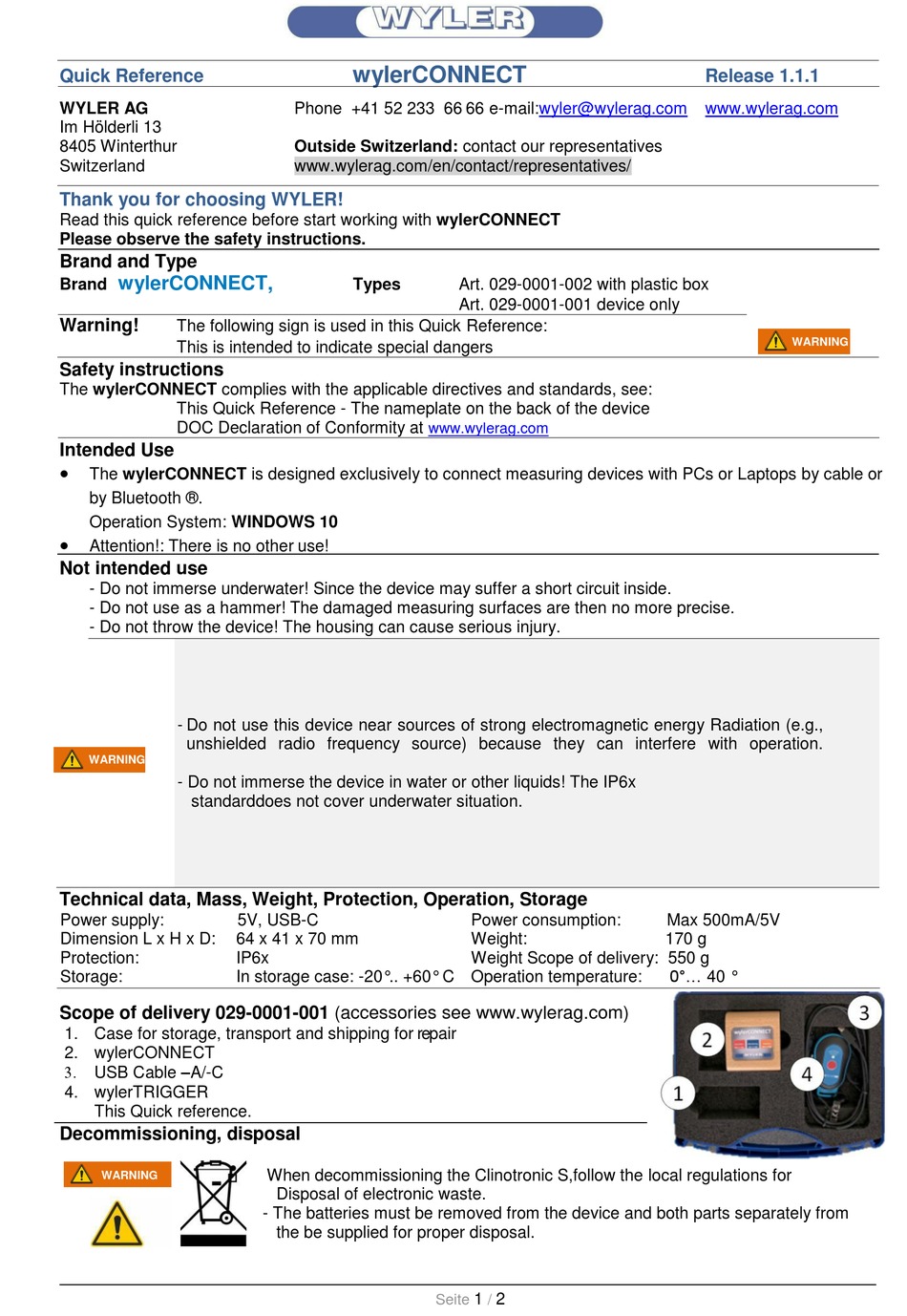

WYLER wylerCONNECT Quick Reference

Quick Reference
WYLER AG
Im Hölderli 13
8405 Winterthur
Switzerland
Thank you for choosing WYLER!
Read this quick reference before start working with wylerCONNECT
Please observe the safety instructions.

Brand and Type

wylerCONNECT,
Brand
Warning!
The following sign is used in this Quick Reference:
This is intended to indicate special dangers

Safety instructions

The wylerCONNECT complies with the applicable directives and standards, see:
This Quick Reference - The nameplate on the back of the device
DOC Declaration of Conformity at

Intended Use


The wylerCONNECT is designed exclusively to connect measuring devices with PCs or Laptops by cable or
by Bluetooth ®.
Operation System: WINDOWS 10

Attention!: There is no other use!

Not intended use

- Do not immerse underwater! Since the device may suffer a short circuit inside.
- Do not use as a hammer! The damaged measuring surfaces are then no more precise.
- Do not throw the device! The housing can cause serious injury.
- Do not use this device near sources of strong electromagnetic energy Radiation (e.g.,
unshielded radio frequency source) because they can interfere with operation.
WARNING
- Do not immerse the device in water or other liquids! The IP6x
standarddoes not cover underwater situation.

Technical data, Mass, Weight, Protection, Operation, Storage

Power supply:
Dimension L x H x D:
Protection:
Storage:
Scope of delivery 029-0001-001 (accessories see www.wylerag.com)
1. Case for storage, transport and shipping for repair
2. wylerCONNECT

USB Cable –A/-C
4. wylerTRIGGER
This Quick reference.

Decommissioning, disposal

WARNING
wylerCONNECT
Phone +41 52 233 66 66
Outside Switzerland: contact our representatives
www.wylerag.com/en/contact/representatives/
Types
5V, USB-C
64 x 41 x 70 mm
IP6x
In storage case: -20°.. +60° C Operation temperature:
When decommissioning the Clinotronic S,follow the local regulations for
Disposal of electronic waste.
- The batteries must be removed from the device and both parts separately from
the be supplied for proper disposal.
e-mail:wyler@wylerag.com
Art. 029-0001-002 with plastic box
Art. 029-0001-001 device only
www.wylerag.com
Power consumption:
Weight:
Weight Scope of delivery: 550 g
1 2
Seite /
Release 1.1.1
www.wylerag.com
WARNING
Max 500mA/5V
170 g
0°... 40 °
