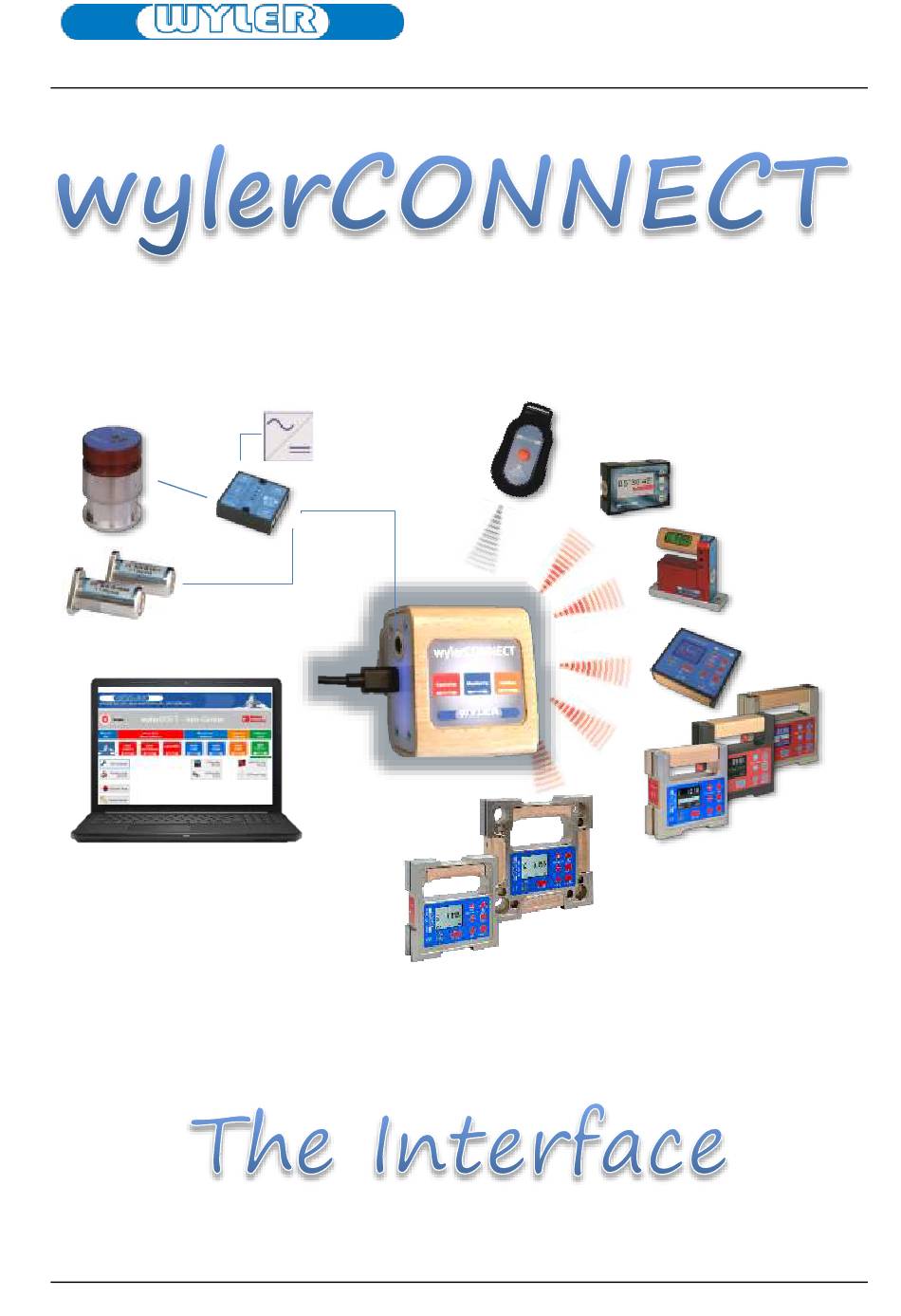

- Page 1 User Manual ZEROMATIC wylerTRIGGER Clinotronic S RS485/232 MultiTC BlueLEVEL & BlueLEVEL II ZEROTRONIC BlueLEVEL-2D ® Bluetooth USB A-C BlueCLINO & wylerCLINO Laptop/PC Windows wylerLEVEL 20.02.2023 Page 1 / 23 G. Lasczyk R1.1.3.1...
-
Page 2: Table Of Contents
5.2.6 MINILEVEL NT, MINILEVEL NT wireless with LEVELMETER 2000, CLINO 2000 ......16 5.2.7 Using Seatronic (wylerDYNAM) ....................17 5.2.8 Incompatibilities ........................17 5.2.9 Cable list from wylerCONNECT with product number.............. 18 5.3 LED notifications ..........................19 5.4 wylerTRIGGER teach-in, using ......................19 5.5 SW licenses ex works, obtaining additional licenses ................. -
Page 3: Wylerconnect User Manual
1. wylerCONNECT User Manual 1.1 Introduction Before you begin Read through this user manual carefully before using the wylerCONNECT for the first time. Please also note the safety instructions. 1.2 Note, Attention!, Warning! For ease of reading, the following references are used in this manual: •... -
Page 4: Product Trademark And Type Designation
*Subject to change 1.5 Other applicable documents You will find the CE Conformity Declaration and this user manual on our homepage at: www.wylerag.com They can be found on the wylerCONNECT product page, under „Download” 20.02.2023 Page 4 / 23 G. Lasczyk R1.1.3.1... -
Page 5: Product Description, Technical Information

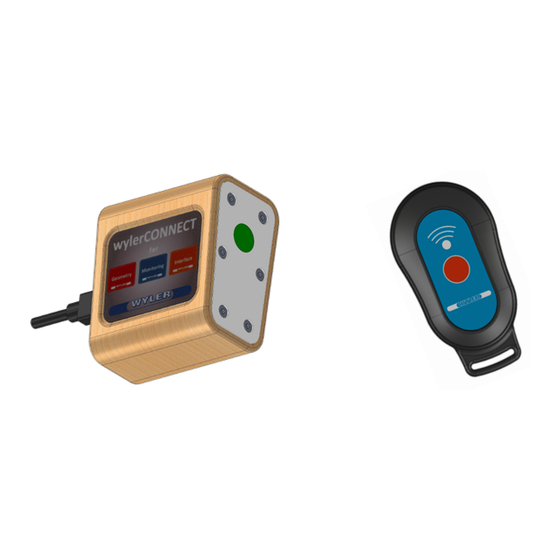

The right side features an RGB diode. For triggering data recording remotely, there is an infrared (IR) receiver on the right side. As standard for the series, the wylerCONNECT is equipped with Bluetooth LowEnergy/Legacy. Cabled sensors can be connected via the RS485 connection. - Page 6 User Manual Optional accessories Mechanical Protective cover screwed to RS485 port to prevent plugging. Software (licenses management) Interface software as wylerINSERT Geometry software as wylerSPEC Monitoring software as wylerDYNAM Remote display software as wylerPLOT 20.02.2023 Page 6 / 23...
-
Page 7: Safety Note
- the tool identification plate on the back of the device. 3.1 Appropriate use • The wylerCONNECT is to be used solely for the reception of sensor or measuring device data. The measurement can - be received wirelessly via the BlueLEVEL, wylerLEVEL, BlueCLINO, wylerCLINO and Clinotronic S product lines. -
Page 8: Additional Information For Fcc (Usa) And Ic (Canada)
User Manual 3.4 Additional information for FCC (USA) and IC (Canada) FCC part 15 and ICES-0003 Class A Device This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation”. -
Page 9: Preparing Product For Use
User Manual 4. Preparing product for use 4.1 Case contents Product number 029-0001-002 Case wylerCONNECT USB-A/USB-C cable wylerTRIGGER (infrared) →This manual at Quick reference guide www.wylerag.com 4.2 Overview of connecting elements, wylerTRIGGER (IR) and LEDs Housing 2,3,4 RGB LEDs... -
Page 10: Connecting Wylerconnect To Laptop
- A current limiter prevents too much current from being drawn from the laptop. - Do not use a USB power source greater than 15W! The LED on the right-side glows green to indicate that the wylerCONNECT is ready for use. 20.02.2023 Page 10 / 23 G. -
Page 11: Operation
User Manual 5. Operation 5.1 Connection via Bluetooth (RFCOMM & Low Energy) 5.1.1 BlueLEVEL, wylerLEVEL, BlueCLINO, wylerCLINO product line, Clinotronic S Note: The connecting of devices is always initiated via software. The following software packages are available: • wylerEXPLORER •... -
Page 12: Incompatibilities
User Manual 5.1.2 Incompatibilities Attention!: The following devices are not compatible via Bluetooth: • LEVELMETER 2000 • BlueMETER, • BlueMETER SIGMA, • BlueTC • BlueLEVEL with former Bluetooth module version B2.3 and below BlueLEVEL with former Bluetooth module version B2.3 and below 20.02.2023... -
Page 13: Connecting Via Rs485 Cable
ATTENTION!: The sampling rate diminishes as the number of devices increases. ATTENTION!: If there is an overload, the LED on the wylerCONNECT blinks red. There will be no data transmission! Remedy: Use an external power supply or reduce the number of sensors. -
Page 14: Zeromatic Via Multitc, 24V Power Supply, Zerotronic, Clinotronic Plus, Minilevel Nt
User Manual 5.2.2 ZEROMATIC via MultiTC, 24V power supply, ZEROTRONIC, Clinotronic PLUS, MINILEVEL ZEROMATIC sensors always via MultiTC and with 24V power supply ATTENTION!: Do not intermix with BlueSYSTEM product line. ATTENTION!: The sampling rate diminishes as the number of devices increases. -
Page 15: Bluesystem Product Line, 5V Power Supply
User Manual 5.2.4 BlueSYSTEM product line 3 or more devices via MultiTC, 24V power supply BlueSYSTEM product line: 3 devices or more • Always via MultiTC with external power supply ATTENTION!: Do not intermix with ZEROTRONIC, ZEROMATIC, Clinotronic PLUS, MINILEVEL NT and CLINO 2000 devices. -
Page 16: Minilevel Nt, Minilevel Nt Wireless With Levelmeter2000, Clino 2000
User Manual 5.2.6 MINILEVEL NT, MINILEVEL NT wireless with LEVELMETER2000, CLINO 2000 2 MINILEVEL NT, cable connected, without LEVELMETER 2000 Note : Also functions with only one device connected 1 LEVELMETER 2000 for 2 Minilevel NT with wireless 1 CLINO 2000 ATTENTION!: Only ONE device can be connected. -
Page 17: Using Seatronic (Wylerdynam)
User Manual 5.2.7 Using Seatronic (wylerDYNAM) wylerDYNAM software: • Seatronic application ATTENTION!: Always use the 24V external power supply. Note: In this configuration, the maximum baud rate of 57600 is achieved. 5.2.8 Incompatibilities ATTENTION!: The following devices are not compatible:... -
Page 18: Cable List From Wylerconnect With Product Number
User Manual 5.2.9 Cable list from wylerCONNECT with product number Cable Length in m Product number Voltage Male/Female Y-extension RS485 029-004-878-Y 5/24V m/2f Universal cable RS485 029-025-878-001 5/24V " 029-050-878-001 5/24V " 029-100-878-001 5/24V Universal angled cable 029-025-878W003 5/24V "... -
Page 19: Led Notifications
, aim it toward the wylerCONNECT and press the initiation button on the wylerTRIGGER for at least 5 seconds. The connection is confirmed if the red LED lights once. • From now on, every initiation of the wylerTRIGGER will be confirmed on the wylerCONNECT by the LED lighting once. •... -
Page 20: Sw Licenses Ex Works, Obtaining Additional Licenses
Select "Request Quote for Product License" to order new software. Follow the instructions given by the wylerLICENSE program. 5.6 FW update Connect the wylerCONNECT to the computer using a USB-C/USB-A cable. Start the wylerEXPLORER and follow the on-screen instructions. 20.02.2023 Page 20 / 23 G. -
Page 21: Specifications, Tool Identification Plate
Tool identification plate When decommisioning the wylerCONNECT, comply with local regulations regarding the disposal of electronic waste. Only the WYLER AG Switzerland service center is authorized to open the device. Read the User Manual before initial use. 20.02.2023 Page 21 / 23... -
Page 22: Maintenance
8405 Winterthur Switzerland Tel. +41 52 233 66 66 www.wylerag.com Fax +41 52 233 53 20 wyler@wylerag.com You can find the national representatives at: https://www.wylerag.com/en/contact/representatives/ 7.4 Repacking prior to transport Ship the device in its case in additional card packaging. -
Page 23: Disposal
User Manual 8. Disposal Decommissioning, disposal • When decommisioning the wylerCONNECT, comply with local regulations regarding the disposal of electronic waste. 9. Document version and updates 13.01.2020 R1.1.1.1 EN Author: A. Schuhmacher User Manual with product launch January 2020 02.02.2020...
