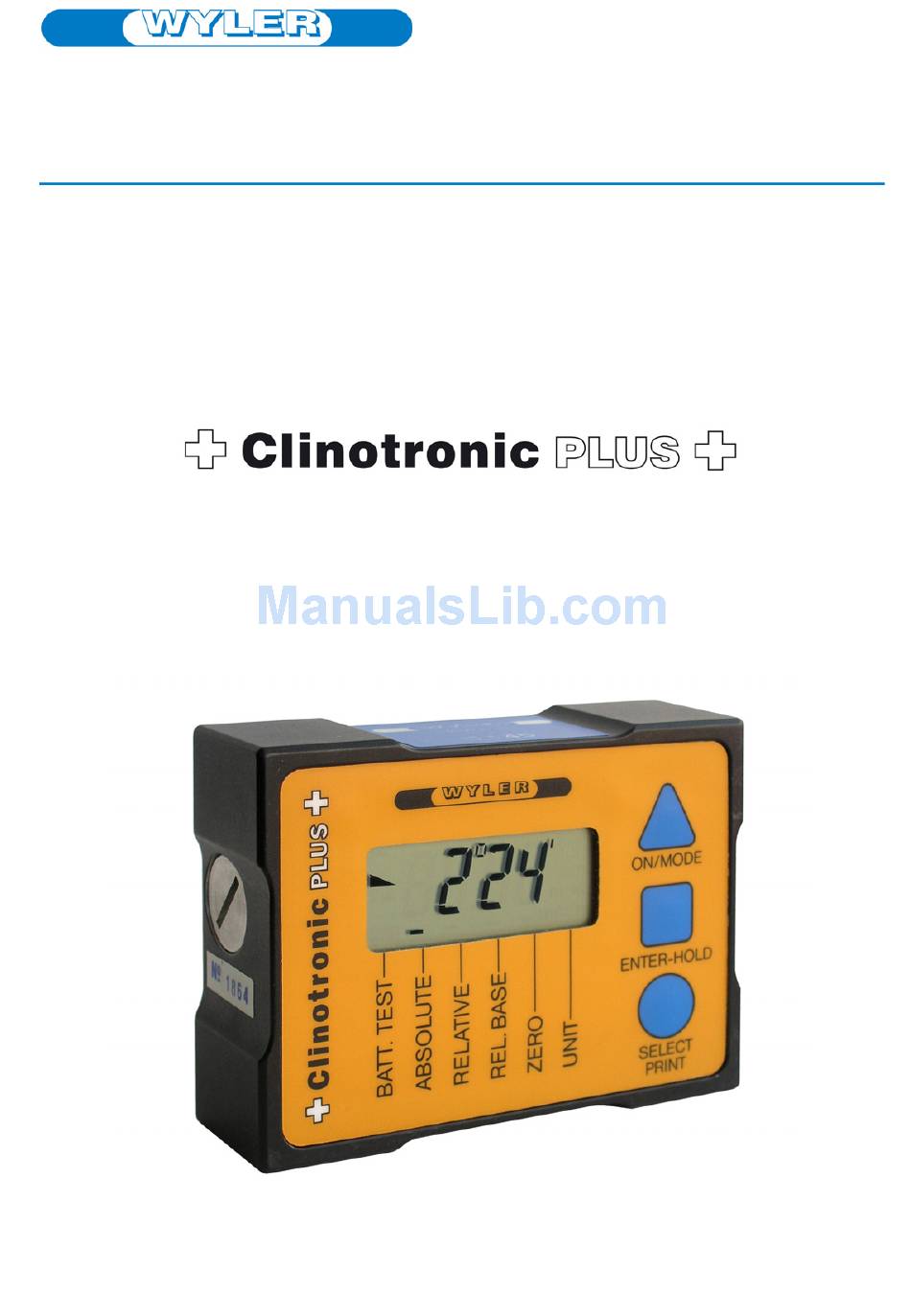

- Page 1 WYLER AG Tel. 0041 (0) 52 233 66 66 Im Hölderli Fax. 0041 (0) 52 233 20 53 CH-8405 WINTERTHUR Switzerland Homepage: http://www.wylerag.com E-Mail: wyler@wylerag.com PERATOR ANUAL The intelligen t u niversa l in clinomete r File: „clino_e.doc“...
- Page 2 Content GENERAL NTRODUCTION ESCRIPTION PERATING NSTRUCTIONS OPERATING ELEMENTS ENERAL INFORMATION UNCTIONS IN DETAIL ATTERY TEST HANGE OF ATTERY UNCTION CHECK ET ABSOLUTE ZERO HANGE UNITS OF MEASUREMENT HANGE RELATIVE BASE SAVE SET HOLD - F UNCTION RINT UNCTION 2.10 ANCEL 2.11 ESET 2.12...
- Page 3 INDEX Key word Chapter Page Absolute measurement Accessories / Spare parts Applications Automatic shut off deactivating Battery Battery indication Battery indicator Battery life Battery / Care and handling of the batteries Battery test / Change of Battery Cable 2.5m with remote button Calibration Calibration Calibration with master...
- Page 4 Important modifications compared with the previous model Indication of inclination Indication of inclination in selected units Interface connector to PC (RS232) Interface socket RS485 Interface socket RS485 Introduction KEY ECHO Visual indication "a key is depressed" Limits of error Magnets and threads Magnets and threads Appendix B Measurement of wide angles...
- Page 5 New software for angular computing • Standard batteries, no loss of calibration data when changing batteries. • True RS485 – Interface / connections to various WYLER instruments as well as to a PC • State of the art microelectronics incorporated. •...
-

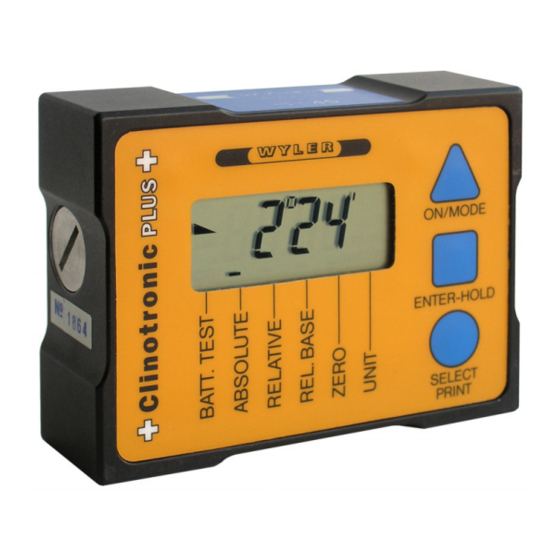

Page 6: Operating Elements
OPERATING ELEMENTS ENERAL INFORMATION – 6 – – 1 – INDICATION OF INCLINATION in selected ON/MODE – key units - To switch operating mode on - To toggle between modes – 8 – INTERFACE SOCKET RS485 – 2 – ENTER/HOLD – key - Enter key - key to freeze measurement values –... - Page 7 UNCTIONS IN DETAIL – 1 – ON/MODE Key Use this key to put the +CLINO PLUS+ into operation. The Key ON/MODE must remain pressed until all the display segments are visible. The +CLINO PLUS+ thereafter automatically changes to the previously set operational mode. The display will show until the first valid measurement value is available.
- Page 8 - 8 - Interface port RS 485 True RS485 – Interface / connections to various WYLER instruments such as e.g. Levelmeter 2000, WYLER T/C as well as to a RS 232 com port of a PC (Special WYLER connector required) ATTERY TEST...
- Page 9 By multiple use of the key "ON/MODE", align the selection pointer with the position "ZERO". The selection pointer is flashing Use the key "ENTER/HOLD" to collect the first reading. The instrument may still be positioned correctly. A measurement is only collected after two identical values are repeated. (The +CLINO PLUS+ is able to detect when it is free from interference) As soon as a valid measurement is registered it will be displayed.
- Page 10 The following measuring units may be selected: Code Character for Display/Format Measuring unit printout 00.00 mm/m mm/m/2 Dec. .00 00 mm/m mm/m /4 Dec. .00 00 "/10" Inch/10 Inch .00 00 "/12" Inch/12 Inch 00.00 mrad Milliradian 00 00 mrad Milliradian 00.00 Degree/2 Dec.
-
Page 11: Hold Function
For relative base measurements the following approach is applicable: HOLD - F UNCTION This function is available in all measuring modes. Use the key “ENTER/HOLD ". While the +CLINO PLUS+ waits for a valid measurement (two identical values in succession) the display will show . -
Page 12: Data Transmission
Lost, chapter 3.2 2.12 RANSMISSION True RS485 – Interface / connections to various WYLER instruments such as e.g. Levelmeter 2000, WYLER T/C as well as to a RS 232 com port of a PC (Special WYLER connector required). APPLICATIONS 3.1. - Page 13 EASUREMENT OF WIDE ANGLES The four surfaces framing the instrument are finished perpendicularly to each other. Each of them may be employed as a measuring base thereby allowing inclination measurements at any angle greater than the sensor measuring capacity. (± 45 Deg) Vertical and horizontal measurements / Measurements with the different bases Declined to the right Inclined to the right...
-
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS 4.1. ENERAL Measuring range ± 10 Arcdeg ± 30 Arcdeg ± 45 Arcdeg Messbereich Calibration / Last values at: / ± 50 Arcdeg ± 10 Arcdeg ± 30 Arcdeg Kalibrierung letzte Werte bei: resp. ± 60 Arc.deg. Limits of Error / <... -
Page 15: Connection Mode
4.2.3. C ONNECTION MODE +CLINO PLUS+ (Compatibility) – MODE Polling mode • Pressing SELECT/PRINT Key will send response • Receiving (ASCII Character ‚H‘) will bring instrument to HOLD-MODE. • Receiving (ASCII Character ‚P‘) will send data to port (response) Timing of data exchange •... - Page 16 Command / Response data frame structure Header ASCII ‚~‘ (Begin of command or response) ASCII ‚~‘ (minimum 4 of these characters must be sent) ASCII ‚~‘ ASCII ‚~‘ Address ⇒+ (Instruments resp. sensor address) ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[7..4] ⇒+ ASCII ‚0‘...
- Page 17 SERVICE ALIBRATION A reserved memory space incorporated in the +CLINO PLUS+ contains calibration data in predefined intervals. Prior to all displays this data is accessed applying a specialized interpolation and is used to compute the measurement value. Calibration data stored in this memory is initiated from an automatic calibration process based on a high accuracy dividing head, which is performed at the manufacturing stage.
- Page 18 CCESSORIES PARE PARTS The following items are available: Batteries Art. No. 1 x Size AA 1.5V Alkaline 604-012-0001 1 x Size AA 3.0V MnO2-Lithium 604-012-0002 Interface-Connector With this connector the +CLINO PLUS+ may Art. No. 065-STECKER-232 +CLINO PLUS+ to PC be connected to the com port (RS232) of a (RS232) PC.
- Page 19 APPENDIX A a) Connecting a remote button to the +CLINO PLUS+ using the RS485 interface b) Connecting the +CLINO PLUS+ to a computer with a RS485 interface using the RS485 interface of the instrument c) Connecting the +CLINO PLUS+ to a computer with a RS485 interface using the RS485 interface of the instrument / also a remote button installed Page 19 of 24 Pages clino_e.doc...
- Page 20 Connecting the +CLINO PLUS+ to a computer with a RS232 interface using the RS485 interface of the instrument Remarks: Cable and interface connector can be ordered from the nearest distributor or from WYLER AG. e) Connecting the +CLINO PLUS+ to a computer with a RS232 interface using the RS485 interface of the...
- Page 21 g) Connecting the +CLINO PLUS+ to a computer with a CMOS +5V interface using the RS485 interface of the instrument / also a remote button installed h) Connecting the +CLINO PLUS+ to a computer with a RS422 interface using the RS485 interface of the instrument Page 21 of 24 Pages clino_e.doc...
- Page 22 i) Connecting the +CLINO PLUS+ to a computer with a RS422 interface using the RS485 interface of the instrument / also a remote button installed APPENDIX B Attaching +CLINO PLUS+ • Special executions with permanent magnets recessed in the measuring bases are available on request.
- Page 23 • CLINOMASTER is the perfect master for the calibration of the CLINOTRONIC • CLINOMASTER and CLINOTRONIC are a hard to beat pair To be supplied with certificate on demand WYLER AG Art. no. 015-000-021 Page 23 of 24 Pages clino_e.doc...
- Page 24 The invoicing will be through the WYLER partner in your country. Please do not hesitate to make use of this service in order to have your WYLER instrument back at your disposal as soon as possible. In case of any questions please contact WYLER SWITZERLAND or your local distributor, we will gladly help you to use the ERS successfully.
