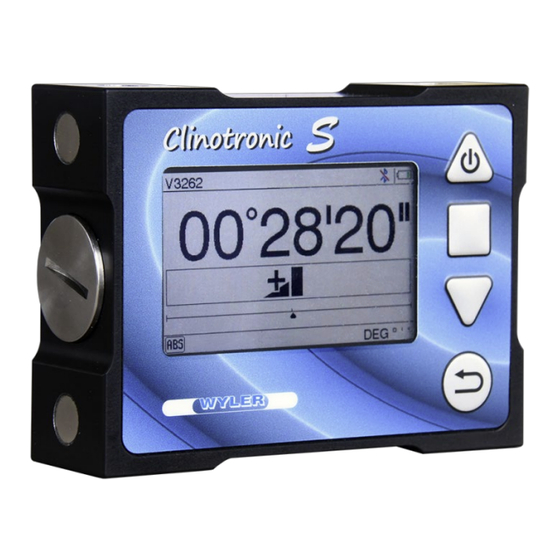

WYLER Clinotronic S Manual

WYLER Clinotronic S Manual

Electronic inclinometer
Hide thumbs Also See for Clinotronic S:

Advertisement

Quick Links

Manual Clinotronic S
Manual
Electronic Inclinometer
S
Clinotronic
WYLER AG
Im Hölderli 13
8405 Winterthur
Switzerland
+41 233 66 66
www.wylerag.com
wyler@wylerag.com
Seite 1 / 46

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Clinotronic S and is the answer not in the manual?

Questions and answers

Summary of Contents for WYLER Clinotronic S

  • Page 1 Manual Clinotronic S Manual Electronic Inclinometer Clinotronic WYLER AG Im Hölderli 13 8405 Winterthur Switzerland +41 233 66 66 www.wylerag.com wyler@wylerag.com Seite 1 / 46...
  • Page 2: Table Of Contents

    Manual Clinotronic S Table of content 1. Manual Clinotronic S ..........................3 Introduction ................................. 3 Note♥, Attention !, Warning! ............................3 Manufacturer name and address ..........................3 Product brand and type designation ........................... 4 Applicable documents ..............................4 2. Product description, technical data ......................5 Measuring device, accessories ...........................
  • Page 3: Manual Clinotronic S

    Manual Clinotronic S 1. Manual Clinotronic S Introduction Before you start Read this manual carefully before using the Clinotronic S for the first time. Please also note the safety instructions. Note♥: Mishandling or unintentional deletion of calibration data are prevented by Note♥...
  • Page 4: Product Brand And Type Designation

    *Art. No. 015-S-HG45 with two magnets on each side *Art. No. 015-S-PG45 with two M3 threads on all sides *Subject to change Applicable documents The CE Declaration of Conformity can be found on our homepage at: www.wylerag.com at the product page Clinotronic S "Download". Seite 4 / 46...
  • Page 5: Product Description, Technical Data

    Measuring device, accessories The measuring device The housing of the Clinotronic S is made of black anodized aluminum. The four measuring bases are located in each of the quadrants (frame). The front and back are equipped with a plastic film.
  • Page 6 Manual Clinotronic S Optional accessories www.wylerag.com Mechanically Magnets below, above, left, and right. Art. No. 015-S-HG45 Threads M3 bottom, top, left, and right Art. No. 015-S-PG45 Software Interface software Geometry measuring software Monitoring software Software tools Calibration wylerMASTER Remote display...
  • Page 7: Safety Instructions

    • The device complies with the applicable directives and standards Consult: - The current CE Declaration of Conformity Clinotronic S - This instruction manual and the quick reference - The type label on the back of the device Intended use •...
  • Page 8: Additional Information For Fcc (Usa) And Ic (Canada)

    Manual Clinotronic S Additional information for FCC (USA) and IC (Canada) FCC part 15 and ICES-0003 Device Class A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation”.
  • Page 9: Safety Instructions Lithium Ion Batteries

    Manual Clinotronic S Safety instructions lithium-ion batteries The lithium-ion batteries 3.6V are rechargeable Type of battery: 18650 Only the original type 18650 lithium-ion batteries may be used Lithium-ion batteries are only allowed to be charged with the supplied chargers. Lithium-ion batteries are only allowed to be charged under supervision.
  • Page 10: Deadlines For Calibration

    For monthly use: every 2-3 years • WYLER AG operates a calibration center for the parameters length, planarity and angles according to EN / ISO / IEC 17025. • The accreditation is carried out by METAS. WYLER accreditation number: SCS 044...
  • Page 11: Prepare Product For Use

    Manual Clinotronic S 4. Prepare product for use Contents of case Case Clinotronic S Lithium-ion batteries 3.6V, Type 18650 USB power adapter Cable USB-A/USB-C Infrared (IR) trigger wylerCONNECT MINI → Quick reference → Manual download at www.wylerag.com Seite 11 / 46...
  • Page 12: Controls

    Manual Clinotronic S Controls • 1 Screen • 2 On/Off • 3 Menu Enter • 4 Arrow button down Shortcut (hold 2 seconds) "Relative Zero" • 5 Back/cancel • 6 Lithium-ion battery lid • 7 USB-C connection • 8 Infrared (IR) trigger...
  • Page 13: Charging With Power Adapter Or Laptop

    The following states of charge appear on the screen for 100%: or 75%: or 50%: Almost empty: Charge the Clinotronic S as soon as possible until the symbol 100% appears. Loading time full capacity: Typical usage time with radio switched on:...
  • Page 14: Operation

    Connected via cable (USB-C / USB-A) with a Windows computer ♥ Note With the cable, you can update the firmware of the Clinotronic S via Windows computer. The corresponding firmware loader can be found at www.wylerag.com Seite 14 / 46...
  • Page 15: Measurment Bases

    Manual Clinotronic S 5.2 Measurment bases The device is equipped with four (4) measuring bases with flat measuring surfaces Horizontal application Measurement base above Measurement base below Vertical application Measurement base left side Measurement base right side Seite 15 / 46...
  • Page 16: Screen Overview And Keyboard

    Manual Clinotronic S 5.3 Screen overview and keyboard • Screen • Serial number; 2a IR number + 1 x flash when triggered • Display of value (depending on the selected unit) • Radio activated, not activated: • Charge indicator , empty , charging •...
  • Page 17: Switching On/Off, Measuring Range

    Manual Clinotronic S 5.4 Switching on/off, measuring range Switch On • Press the button The screen starts immediately. ♥ Note :The device starts with the last used settings Switch Off • To switch off, press the button until the following message appears: Release the button.
  • Page 18: Menu "Settings", Entry And Exit

    Manual Clinotronic S 5.5 "Settings" menu, entry and exit • Press the button to enter the "Settings" menu In "Settings" contents: Device ......Unit......Measurement....Device Information..• Use the up arrow and down arrow to move the cursor up und down.
  • Page 19: Settings In "Device

    Manual Clinotronic S 5.6 Settings in "Device" Enter with into the "Settings" menu • to select "Device" • after that press: • "Device" contents: Brightness ......Bluetooth......Zapper teach-in....Seite 19 / 46...
  • Page 20: Device: "Brightness

    Manual Clinotronic S 5.6.1 Device: "Brightness" • In the "Devices" menu, use to select "Brightness" • to select the desired brightness: Medium High • Confirm your choice with • cancel with ♥ Note In both cases you will jump back to the "Device" menu Attention !: As the brightness level increases, the unit consumes more power.
  • Page 21: Devices:"Bluetooth

    Manual Clinotronic S 5.6.2 Devices:"Bluetooth" • In the "Devices" menu, use to select "Bluetooth" • to select the desired setting: • Confirm your choice with • cancel with ♥ Note In both cases you jump back to the "Device" menu...
  • Page 22: Zapper Teach-In

    Manual Clinotronic S 5.6.3 Zapper teach-in • In the "Devices" menu use to select "Zapper teach-in" • Press the zapper (Infrared trigger) until "OK" appears. • The zapper (Infrared trigger) is identified. • When the zapper is pressed, the IR number appears in the top line for 1 second ♥...
  • Page 23: Settings In "Units

    Manual Clinotronic S 5.7 Settings in "Units" to enter the "Settings" menu • to select "Units" , after that: "Units" contents: Unit digits Explanation • DEG°\′\″ ## ° ## ' ## " Degree - Minute - Second • DEG° ## . ### Degree decimal •...
  • Page 24: Units

    Manual Clinotronic S 5.7.1 "Units" • In the "Units" menu use to select the desired unit • Confirm with e.g.: mm/m The digits and the unit adjusts according to your choice ♥ Note Always check the unit at the beginning of a measurement!
  • Page 25: Self-Selected Base Mm/Xxxx Mm

    Manual Clinotronic S 5.7.2 Self-selected base mm/xxxx mm ♥ Note The unit mm/xxxxmm allows a freely selectable base length • In the "Units" menu use to select mm/1435mm ♥ Note 1435 is the last selected value, hence it may be different.
  • Page 26: Type Of Measurement

    Manual Clinotronic S 5.8 Type of Measurement In the "Devices" menu use to select "Measurements" • after that: • The "Measurement" menu contents: Absolute....uses last measured zero deviation Absolute Zero ..triggers reversal measurement (zero deviation) Relative Zero..current position becomes reference level (relative zero)
  • Page 27: Absolute Measurement

    Manual Clinotronic S 5.8.1 Absolute measurement to enter the "Measurement" menu • In the "Measurement" menu, use to select "Absolute" • after that: • The device returns to the measurement mode ♥ Note How to use: Device is in Relative Zero mode.
  • Page 28: Reversal Measurement "Absolute Zero

    Manual Clinotronic S 5.8.2 Reversal measurement "Absolute Zero" to enter the "Measurement" menu • In the "Measurement" menu, use to select "Absolut Zero" after that: The menu now guides you through the reversal measurement • Place the device on a flat and stable surface. → Position H ♥...
  • Page 29 Manual Clinotronic S Please wait, the device records a stable value H. Attention !: Please do not touch the device until the measured value is recorded! Now turn the device at the same position by 180°. → Position H •...
  • Page 30: Temporary Reference Level "Relative Zero

    Manual Clinotronic S 5.8.3 Temporary reference level "Relative Zero" to enter the "Measurement" menu • In the "Measurement" menu, use to select "Relative Zero" after that: The menu now guides you through the reversal measurement "Relative Zero" ♥ • Shortcut! You can choose "Relative Zero" directly from the measurement mode by...
  • Page 31 Manual Clinotronic S Please wait, the device records a stable value H. Attention !: Please do not touch the device until the measured value is recorded! The instrument will return to measuring mode immediately after reading the measured value Attention !: The measurement mode "Relative Zero" is displayed with...
  • Page 32: Device Info

    Manual Clinotronic S 5.9 Device Info to enter the "Settings" menu • to select "Device Information" • after that: • "Device Info" contents: Device Information Firmware etc. Advanced Settings ♥ Note : With you return to the "Settings" menu. Seite 32 / 46...
  • Page 33: Device Info

    Manual Clinotronic S 5.9.1 Device Info to enter the "Device Information" menu List of internal data. The firmware version changes when a firmware update has been made. ♥ • Note : With you return to the measurement mode. Seite 33 / 46...
  • Page 34: Advanced Settings

    Manual Clinotronic S 5.9.2 Advanced Settings to enter the "Device Information" menu • Advanced Settings, to select after that press: to select "Yes" Attention !: This procedure prevents accidental mishandling. Attention !: In this menu, calibration data is affected! If you have any questions, please contact our local representative.
  • Page 35: Use Local Gravity

    Manual Clinotronic S 5.9.2.1 Use Local gravity In the "Device info" menu, use to select "Advanced Settings". • to select "Use local gravity" after that:  Navigate with to the right to the left  The value of the numbers change with...
  • Page 36 Manual Clinotronic S The device returns to measuring mode. ♥ Note The measurement mode shows the globe symbol as a sign of using the local gravity Seite 36 / 46...
  • Page 37: Disable Local Gravity

    Manual Clinotronic S 5.9.2.2 Disable local gravity In the "Device info" menu, use to select "Advanced Settings". • to select "Disable local gravity" after that: The globe icon disappears, indicating that the value of 9.8065 is restored. Seite 37 / 46...
  • Page 38: Wylermaster Calibration

    Manual Clinotronic S 5.9.2.3 wylerMASTER calibration Attention!: A calibration with the wylerMASTER requires the input of your local gravitation constant. It becomes the new reference! This makes it possible to continue to use the item "Use local gravity"! With factory reset you can return to factory settings.
  • Page 39 Manual Clinotronic S The calibration begins: ♥ Note : The menu will guide you through the process. • Position the device on the wylerMASTER in position 1/21: - 50 ° With the trigger or by pressing start the measurement. ♥...
  • Page 40 Manual Clinotronic S ♥ Note You can measure a failed calibration point again. Press the last measurement is canceled. E.g. from O ° back to -5 ° • Carry out the calibration according to the above steps until the 21st (last) measurement.
  • Page 41 Manual Clinotronic S ♥ Note You can cancel this process at any time with and return to the measurement screen Please wait while the device records a stable value H. Attention !: Please do not touch the device until the measured value is recorded! •...
  • Page 42 Manual Clinotronic S ♥ Note If the device is in the wrong position, an error message "Wrong Position" appears. 1. Acknowledge this message with 2. Position the device as required by the user interface.. Example ♥ Note The measuring range after a wylerMASTER calibration is 45 °...
  • Page 43: Factory Reset

    "Factory Reset" Attention !: This procedure prevents accidental mishandling Attention !: The Clinotronic S now has its original data in memory. For a precise absolute measurement, please carry out a reversal measurement process as described in chapter 5.8.2.
  • Page 44: Specifications

    Manual Clinotronic S 6. Specifications Technical specifications Measuring range ±45° Resolution 5 arcsec or 0.02mm/m Limit of error; M = rad out; t=constant 0.04% M / minimum 5 arcsec Drift / 24 h max 10 arcsec Response time ≤ 5 sec Flatness of the measuring bases 0.01 mm...
  • Page 45: Maintenance

    8405 Winterthur, Switzerland Tel. +41 52 23 66 66 Fax +41 52 233 53 20 www.wylerag.com wyler@wylerag.com For questions, if you are outside Switzerland in a country with a WYLER representative: Country representatives: www.wylerag.com Otherwise, contact us directly Seite 45 / 46...
  • Page 46: Disposal

    Manual Clinotronic S 8. Disposal Decommissioning, disposal • When decommissioning the Clinotronic S, note the local regulations for the disposal of electronic waste. • The Li-ion batteries must be disposed of properly. Document version and release notes 2.5. 2019 R1.1.1.DE Author: A.Schuhmacher...
