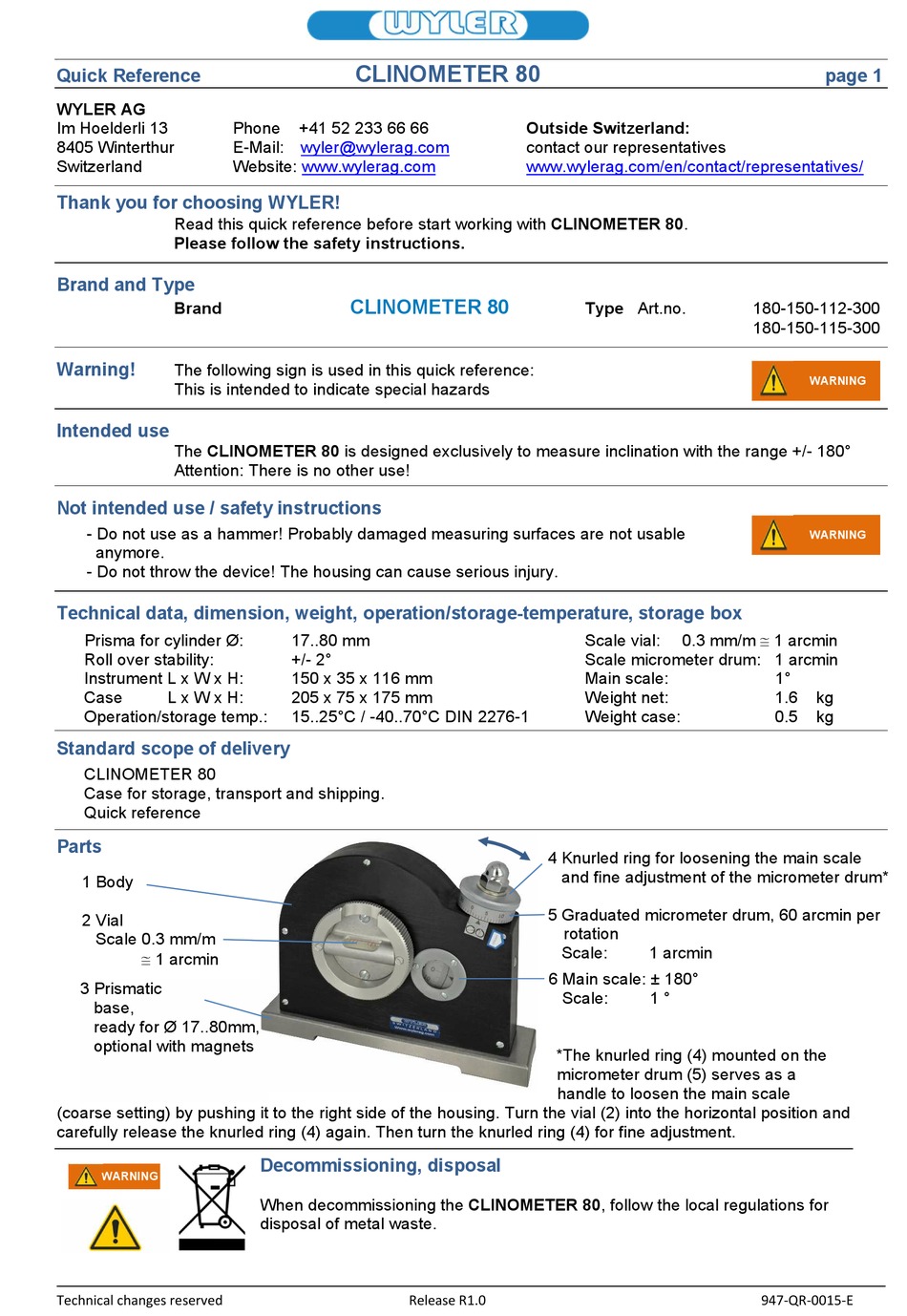

Quick Reference
WYLER AG
Im Hoelderli 13
8405 Winterthur
Switzerland
Thank you for choosing WYLER!
Read this quick reference before start working with CLINOMETER 80.
Please follow the safety instructions.
Brand and Type
Brand
Warning!
The following sign is used in this quick reference:
This is intended to indicate special hazards
Intended use
The CLINOMETER 80 is designed exclusively to measure inclination with the range +/- 180°
Attention: There is no other use!
Not intended use / safety instructions
- Do not use as a hammer! Probably damaged measuring surfaces are not usable
anymore.
- Do not throw the device! The housing can cause serious injury.
Technical data, dimension, weight, operation/storage-temperature, storage box
Prisma for cylinder Ø:
Roll over stability:
Instrument L x W x H:
Case
L x W x H:
Operation/storage temp.:
Standard scope of delivery
CLINOMETER 80
Case for storage, transport and shipping.
Quick reference

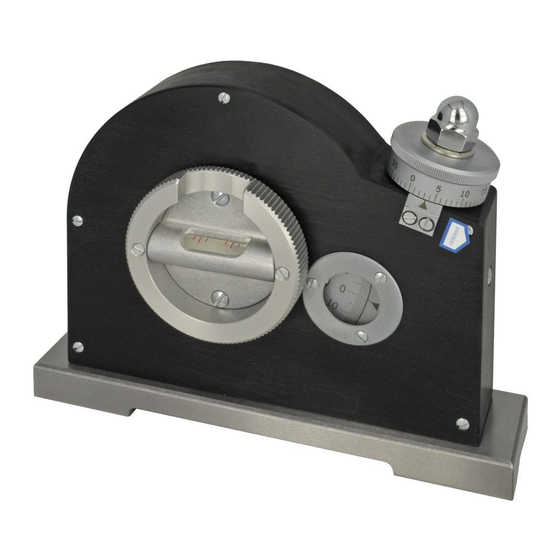

Parts
1 Body
2 Vial
Scale 0.3 mm/m
1 arcmin
3 Prismatic
base,
ready for Ø 17..80mm,
optional with magnets
(coarse setting) by pushing it to the right side of the housing. Turn the vial (2) into the horizontal position and
carefully release the knurled ring (4) again. Then turn the knurled ring (4) for fine adjustment.
WARNING
Technical changes reserved
CLINOMETER 80
Phone
+41 52 233 66 66
E-Mail:
wyler@wylerag.com
Website:
www.wylerag.com
CLINOMETER 80
17..80 mm
+/- 2°
150 x 35 x 116 mm
205 x 75 x 175 mm
15..25°C / -40..70°C DIN 2276-1
Decommissioning, disposal
When decommissioning the CLINOMETER 80, follow the local regulations for
disposal of metal waste.
Outside Switzerland:
contact our representatives
www.wylerag.com/en/contact/representatives/
4 Knurled ring for loosening the main scale
and fine adjustment of the micrometer drum*
5 Graduated micrometer drum, 60 arcmin per
rotation
Scale:
6 Main scale: ± 180°
Scale:
*The knurled ring (4) mounted on the
micrometer drum (5) serves as a
handle to loosen the main scale
Release R1.0
Type Art.no.
180-150-112-300
180-150-115-300
0.3 mm/m 1 arcmin
Scale vial:
Scale micrometer drum: 1 arcmin
Main scale:
Weight net:
Weight case:
1 arcmin
1 °
page 1
WARNING
WARNING
1°
1.6
kg
0.5
kg
947-QR-0015-E
