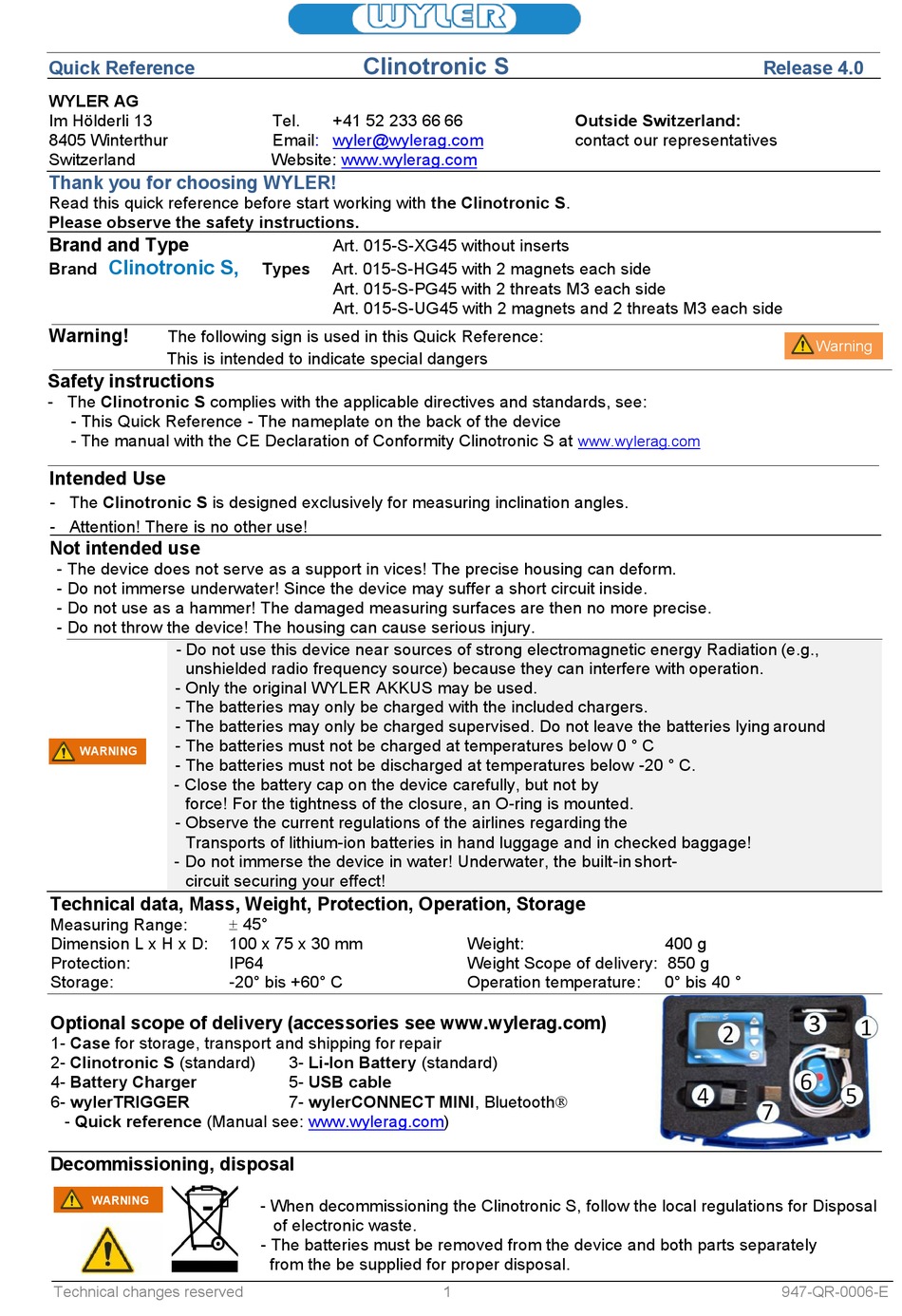

Quick Reference
WYLER AG
Im Hölderli 13
8405 Winterthur
Switzerland
Thank you for choosing WYLER!
Read this quick reference before start working with the Clinotronic S.
Please observe the safety instructions.

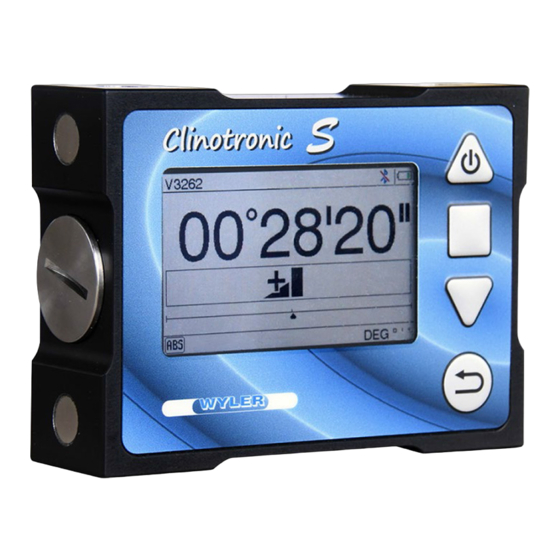

Brand and Type
Clinotronic S,
Brand
Warning!
The following sign is used in this Quick Reference:
This is intended to indicate special dangers
Safety instructions
- The Clinotronic S complies with the applicable directives and standards, see:
- This Quick Reference - The nameplate on the back of the device
- The manual with the CE Declaration of Conformity Clinotronic S at
Intended Use
- The Clinotronic S is designed exclusively for measuring inclination angles.
- Attention! There is no other use!
Not intended use
- The device does not serve as a support in vices! The precise housing can deform.
- Do not immerse underwater! Since the device may suffer a short circuit inside.
- Do not use as a hammer! The damaged measuring surfaces are then no more precise.
- Do not throw the device! The housing can cause serious injury.
- Do not use this device near sources of strong electromagnetic energy Radiation (e.g.,
unshielded radio frequency source) because they can interfere with operation.
- Only the original WYLER AKKUS may be used.
- The batteries may only be charged with the included chargers.
- The batteries may only be charged supervised. Do not leave the batteries lying around
- The batteries must not be charged at temperatures below 0 ° C
WARNING
- The batteries must not be discharged at temperatures below -20 ° C.
- Close the battery cap on the device carefully, but not by
force! For the tightness of the closure, an O-ring is mounted.
- Observe the current regulations of the airlines regarding the
Transports of lithium-ion batteries in hand luggage and in checked baggage!
- Do not immerse the device in water! Underwater, the built-in short-
circuit securing your effect!
Technical data, Mass, Weight, Protection, Operation, Storage
Measuring Range:
Dimension L x H x D:
Protection:
Storage:
Optional scope of delivery (accessories see www.wylerag.com)
1- Case for storage, transport and shipping for repair
2- Clinotronic S (standard)
4- Battery Charger
6- wylerTRIGGER
- Quick reference (Manual see: www.wylerag.com)
Decommissioning, disposal
WARNING
Technical changes reserved
Clinotronic S
Tel.
+41 52 233 66 66
Email: wyler@wylerag.com
Website:
www.wylerag.com
Art. 015-S-XG45 without inserts
Types
Art. 015-S-HG45 with 2 magnets each side
Art. 015-S-PG45 with 2 threats M3 each side
Art. 015-S-UG45 with 2 magnets and 2 threats M3 each side
45°
100 x 75 x 30 mm
IP64
-20° bis +60° C
3- Li-Ion Battery (standard)
5- USB cable
7- wylerCONNECT MINI, Bluetooth
- When decommissioning the Clinotronic S, follow the local regulations for Disposal
of electronic waste.
- The batteries must be removed from the device and both parts separately
from the be supplied for proper disposal.
Outside Switzerland:
contact our representatives
www.wylerag.com
Weight:
Weight Scope of delivery: 850 g
Operation temperature:
1
Release 4.0
Warning
WAR
400 g
0° bis 40 °
947-QR-0006-E
