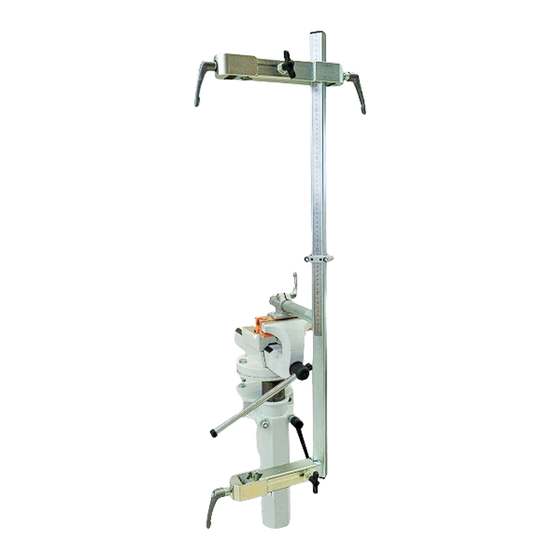

- Page 1 Multifunction Transfer Apparatus 145M50 Instruction Manual...
-
Page 2: Table Of Contents
Contents Transport, unpacking, storage and installation ..........4 Transport ..................... 4 I.II Storage ....................4 I.III Installation ................... 4 Introduction ....................5 General Information ................5 Safety Instructions ..................6 – 7 General Safety Instructions ..............6 Safety precautions at place of installation ..........6 Work area safety .................. - Page 3 Intended use ....................12 Care and maintenance and service .............. 12 11.1 Care ....................12 11.2 Maintenance / Service ................ 12 11.3 Return consignment ................12 Disposal ...................... 13 Legal Warranty and Liability ................. 14 3/16...
-
Page 4: I Transport, Unpacking, Storage And Installation
I Transport, unpacking, storage and installation I.I Transport ATTENTION! Avoid sliding or tilting this product. Damage to the product could occur. ATTENTION! Risk of injury by lifting heavy loads. ATTENTION! Transport the product in its original packaging only. Secure the product with transport straps for transport. I.II Storage Intermediate storage of the product is possible in a closed and dry room. -
Page 5: Introduction
1 Introduction 1.1 General Information This instruction manual is intended to provide the user and all authorized persons with important information about the safe use and maintenance of the product. The instructions are a key part of the the product and must be properly stored at the product for the entire lifetime of the equipment. -
Page 6: Safety Instructions
• Never smoke during operation or maintenance, especially if solvents or flammable materials are used. Streifeneder ortho.production GmbH assumes no liability for damage to property or personal injury resulting from the improper use of the product or failure to properly observe occupational safety regulations. -
Page 7: Residual Risk
3 Intended use The product is designated to fixate and transfer existing prostheses alignments. 4 Technical data and equipment 145M50 Dimensions H x W x D: 1000 x 240 x 330 mm Material: galvanised steel Weight: approx.6 kg... -
Page 8: Scope Of Delivery, Transport, Storage And Assembly
5 Scope of delivery, Transport, Storage and Assembly 5.1 Scope of delivery Quantity Description Dimensions H x W x D: Weight: 1 Stck. 145M50 Multifunction Transfer Apparatus 1000 x 240 x 330 mm approx.6 kg 1 Stck. tube adapter 1 Stck. -
Page 9: Intended Use
7 Intended use ATTENTION! Please ensure that the product is securely clamped into the vice in order to prevent injuries by dropping. 8 Technical advice 8.1 Features • The product is suitable for round and square one- or two-way suction-pipes, diverse metal-bars of the plaster model (up to 22 –... - Page 10 • The product has an easily readable centimetre–scale, a clamping-area of approx. 900 mm and is made of high-quality and long-lasting materials. fig. 1 10/16...
-
Page 11: Procedure Of Transmitting Socket Alignments
9 Procedure of transmitting socket alignments ATTENTION! Please ensure that the product is securely clamped into the vice in order to prevent injuries by dropping. Firmly clamp the product into a vice. Clamp the test socket into the bottom clamping of the product. Clamp a plaster model bar resp. -
Page 12: Intended Use
Please do not expose the product to corrosionpromoting chemicals and materials such as salt water and acids! Disregarding this regulation will result in loss of all warranty rights against Streifeneder ortho.production GmbH. 11.2 Maintenance / Service Due to permanent use and frequent cleaning, the product is subject to natural wear and tear and therefore must be checked daily for damages and be overhauled if necessary. -
Page 13: Disposal
12 Disposal The product must be disposed of or recycled according to your regional or national regulations. 13/16... -
Page 14: Legal Warranty And Liability
Legal Warranty and Liability For detailed information about our „Legal Warranty and Liability“ please see our general terms of sales and policies at: www.streifeneder.com/op/general-terms-and-conditions. 14/16... - Page 15 15/16...
- Page 16 © copyright Streifeneder ortho.production 145M50/GGB V001 2023-05 Streifeneder ortho.production GmbH Moosfeldstraße 10 · 82275 Emmering/Germany T +49 8141 6106-0 · F +49 8141 6106-50 office@streifeneder.de · www.streifeneder.de/op...
