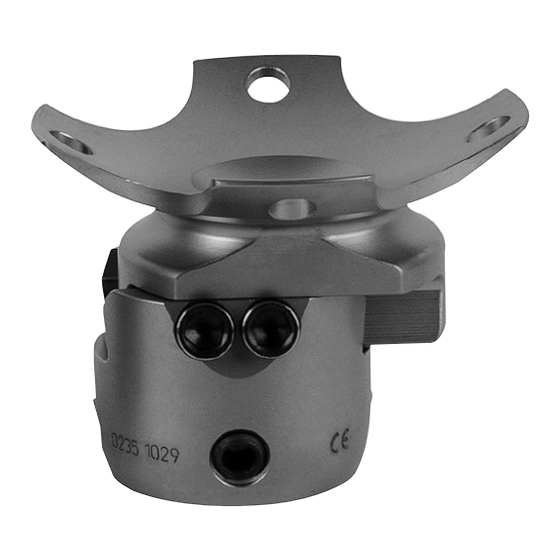

Sliding adapter with with lamination anchor - titanium 100 kg/220 lbs

Advertisement

Available languages

Available languages

Quick Links

< 100 kg / 220 lbs
10A41/T
D
Verschiebeadapter
mit Eingussanker -Titan-
GB
Sliding Adapter with
with Lamination Anchor -Titanium-

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10A41/T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Streifeneder ortho.production 10A41/T

  • Page 1 < 100 kg / 220 lbs 10A41/T Verschiebeadapter mit Eingussanker -Titan- Sliding Adapter with with Lamination Anchor -Titanium-...
  • Page 2: Table Of Contents

    Inhaltsverzeichnis 1 Technische Daten ............3 2 Beschreibung und Funktion ..........3 2.1 Verwendungszweck ..............3 3 Ein- / Aufbau ............... 3-5 3.1 Handhabung der Gewindestifte ............4 3.2 Verschiebejustierung ..............4-5 3.3 Verarbeitungshinweise ..............5 4 Technische Hinweise ............6 5 Wartung / Service ............6 6 Nutzung .................
  • Page 3: Technische Daten

    Einbauhöhe ............49 mm Gewicht ............183 g max. Körpergewicht ........100 kg 2 Beschreibung und Funktion 2.1 Verwendungszweck Der Verschiebeadapter 10A41/T wird ausschließlich zur prothetischen Versor- gung der unteren Extremität verwendet. 3 Ein- / Aufbau Der Verschiebeadapter stellt die Verbindung zwischen einem Justier- kern und dem Prothesenschaft her.
  • Page 4: Handhabung Der Gewindestifte

    3.1 Handhabung der Gewindestifte Über die vier Gewindestifte 22A2/M8x12 22A2/M8x12 sind statische Korrek- 15 Nm turen während des Aufbaus, der Anprobe und auch nach der Fertigstel- lung der Prothese jederzeit übersicht- lich durchführbar. Zum Austausch eines Moduls oder bei der Demontage wird die vorher justierte Position beibe- halten, wenn nur zwei nebeneinander 22A2/M5x8...
  • Page 5: Verarbeitungshinweise

    Der Verschiebeweg wird über die Anschlagschraube 22A2/M5x8 begrenzt. Zur Justierung in die entge- gengesetzte Verschieberichtung muss sie versetzt werden. Drehmomentschlüssel 173P10 benut- zen, Anzugsmoment 5 Nm. Achtung! Ohne Anschlagschraube 22A2/M5x8 ist der Gebrauch des Verschiebeadapters nicht zulässig! Bei der Fertigstellung der Prothese sind alle Gewindestifte mit Loctite 118P35 zu sichern.
  • Page 6: Technische Hinweise

    10A41/T nur in Verbindung mit anderen Streifeneder- Modular-Bauteilen getestet und freigegeben worden ist. 6.2 Nutzungsmissbrauch Der Verschiebeadapter 10A41/T ist ausschließlich für die Walky-Klasse 1-4 ausgelegt und nicht für sportliche Aktivitäten (z. B. Springen u. ä.) geeignet. 6.3 Nutzungsdauer Die Nutzungsdauer ist auf 5 Jahre begrenzt.
  • Page 7: Garantie

    Auswirkungen auf das Produkt oder Teile davon haben, nicht abgedeckt. Im Garantiefall wird die Streifeneder ortho.production GmbH nach ihrer Wahl, das Produkt entweder kostenfrei reparieren, ersetzen bzw. neu anfer- tigen oder die Kosten für das System oder einen Bestandteil davon an den Erstkäufer zurückerstatten.
  • Page 8: Konformitätserklärung

    8 Konformitätserklärung Die Streifeneder ortho.production GmbH erklärt als Hersteller in alleiniger Verantwortung, dass der Verschiebeadapter 10A41/T mit den Anforderungen der Richtlinie 93/42/EWG übereinstimmt. 9 Entsorgung Das Produkt ist für Mensch und Umwelt gefahrenfrei der stofflichen Ver- wertung bzw. Beseitigung zuzuführen. Bitte beachten Sie hierbei die jeweils gültigen regionalen, bzw.
  • Page 9 English Content 1 Technical Data .............. 10 2 Description and Function ..........10 2.1 Application .................10 3 Assembling .............. 10-12 3.1 Adjusting the Adjustment Screws ..........11 3.2 Slide Adjustment ..............11-12 3.3 Processing Instruction ..............12 4 Technical Notes ............. 13 5 Service Directions and Recommendations .....
  • Page 10: Technical Data

    Weight ............183 g max. Body Weight ..........100 kg / 220 lbs 2 Description and Function 2.1 Application The Sliding Adapter 10A41/T is exclusively intended for the supply with protheses of the lower extremities. 3 Assembling The Sliding Adapter provides the connection between adjustment core and socket.
  • Page 11: Adjusting The Adjustment Screws

    3.1 Adjusting the Adjustment Screws During alignment, static corrections 22A2/M8x12 are made by adjusting the four Adjust- 15 Nm ment Screws 22A2/M8x12. These screws remain accessible and adjustable even in the definitiv prosthesis. If components must be exchanged or the prosthesis must be disassembled, alignment may be pre- served by loosening only two adjacent 22A2/M5x8...
  • Page 12: Processing Instruction

    The slide range is limited by a Cap Screw 22A2/M5x8. To allow adjust- ment in the opposite direction, it must be moved (to change the direction of the slide, the cap screw must be removed, the slide reset and the cap screw replaced).
  • Page 13: Technical Notes

    Attention! We are pointing out, that the Sliding Adapter 10A41/T is tested and released only in combination with all other Streifeneder modular parts.
  • Page 14: Warranty

    In case of a warranty claim, at Streifeneder ortho.production GmbH´s option the product will either be repaired, replaced, or re-fabricated free of charge or the cost of the product or part thereof will be reimbursed to the original purchaser.
  • Page 15: Declaration Of Conformity

    8 Declaration of Conformity Streifeneder ortho.production GmbH declares as manufacturer in sole responsibility, that the Sliding Adapter 10A41/T complies with the require- ments of directive 93/42/EWG. 9 Disposal The product must be disposed of or recycled according to your regional or national regulations.
  • Page 16 Streifeneder ortho.production GmbH Moosfeldstraße 10 82275 Emmering/Germany Tel +49 8141 6106-0 Fax +49 8141 6106-50 office@streifeneder.de www.streifeneder.de 10A41/TG Stand: 12/10...

This manual is also suitable for:

10a41/a
