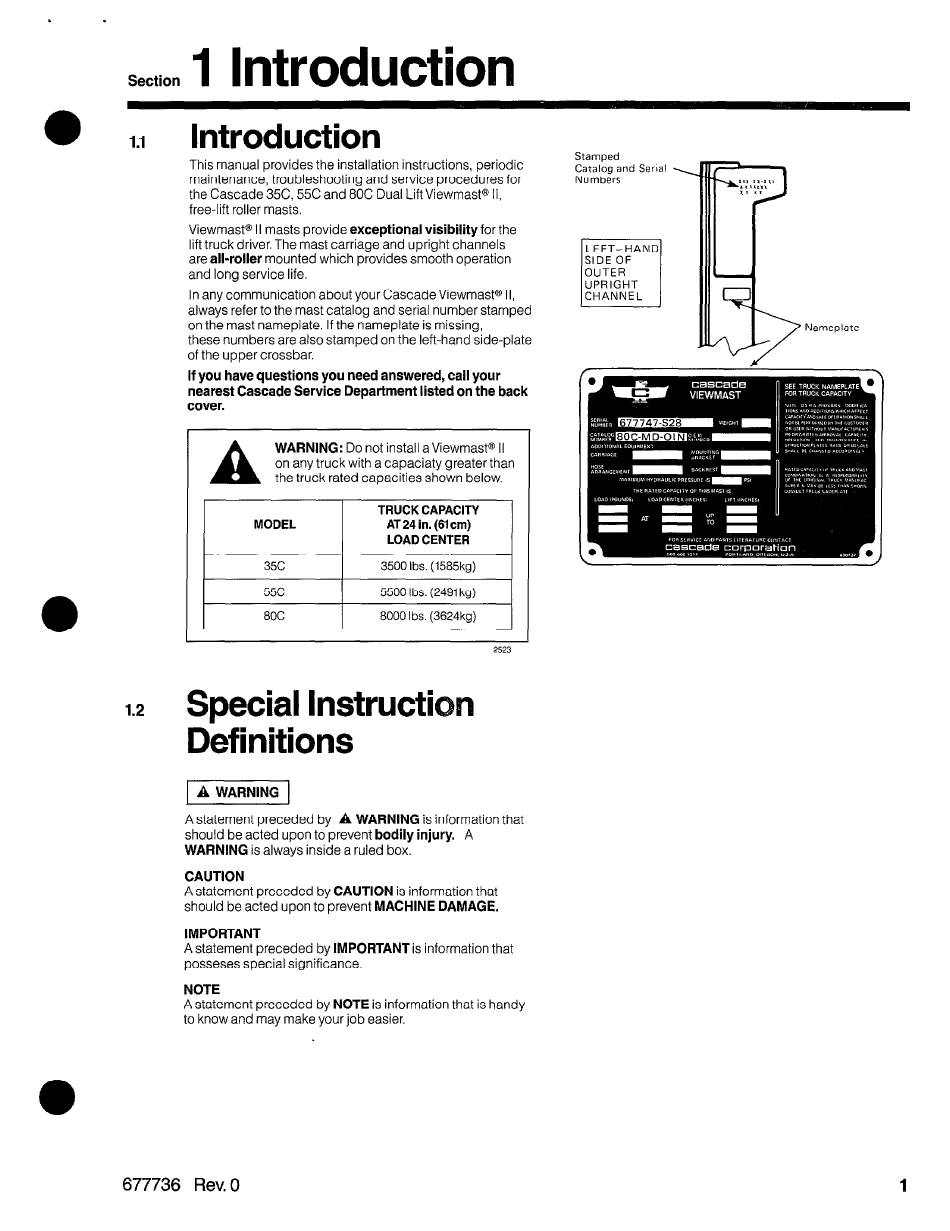

1 Introduction
a
1.1
Introduction
This manual provides the installation instructions, periodic
maintenance, troubleshooting and service procedures for
the Cascade 35C , 55C and 80C Dual Lift Viewmast II,
free-lift roller masts.
Viewmast II masts provide exceptional visibility for the
lift truck driver. The mast carriage and upright channels
are all-roller mounted which provides smooth operation
and long service life.
In any communication about your Cascade Viewmast II,
always refer to the mast catalog and serial number stamped
on the mast nameplate. If the nameplate is missing,
these numbers are also stamped on the left-hand side-plate
of the upper crossbar.
If you have questions you need answered, call your
nearest Cascade Service Department listed on the back
cover.
A
WARNING: Do not install a Viewmast @ II
on any truck with a capacity greater than
the truck rated capacities shown below.
TRUCK CAPACITY
MODEL AT 24 in. (61 cm)
LOAD CENTER
35c 3500lbs.(1585kg)
55c 5500lbs.(2491kg)
80C 80001bs.(3624kg)
1.2 Special Instructi
Definitions
1
A
WARNING 1
A statement preceded by
A
WARNING is information that
should be acted upon to prevent bodily injury. A
WARNING is always inside a ruled box.
CAUTION
A statement preceded by CAUTION is information that
should be acted upon to prevent MACHINE DAMAGE.
IMPORTANT
A statement preceded by IMPORTANT is information that
posseses special significance.
NOTE
A statement preceded by NOTE is information that is handy
to know and may make your job easier.
